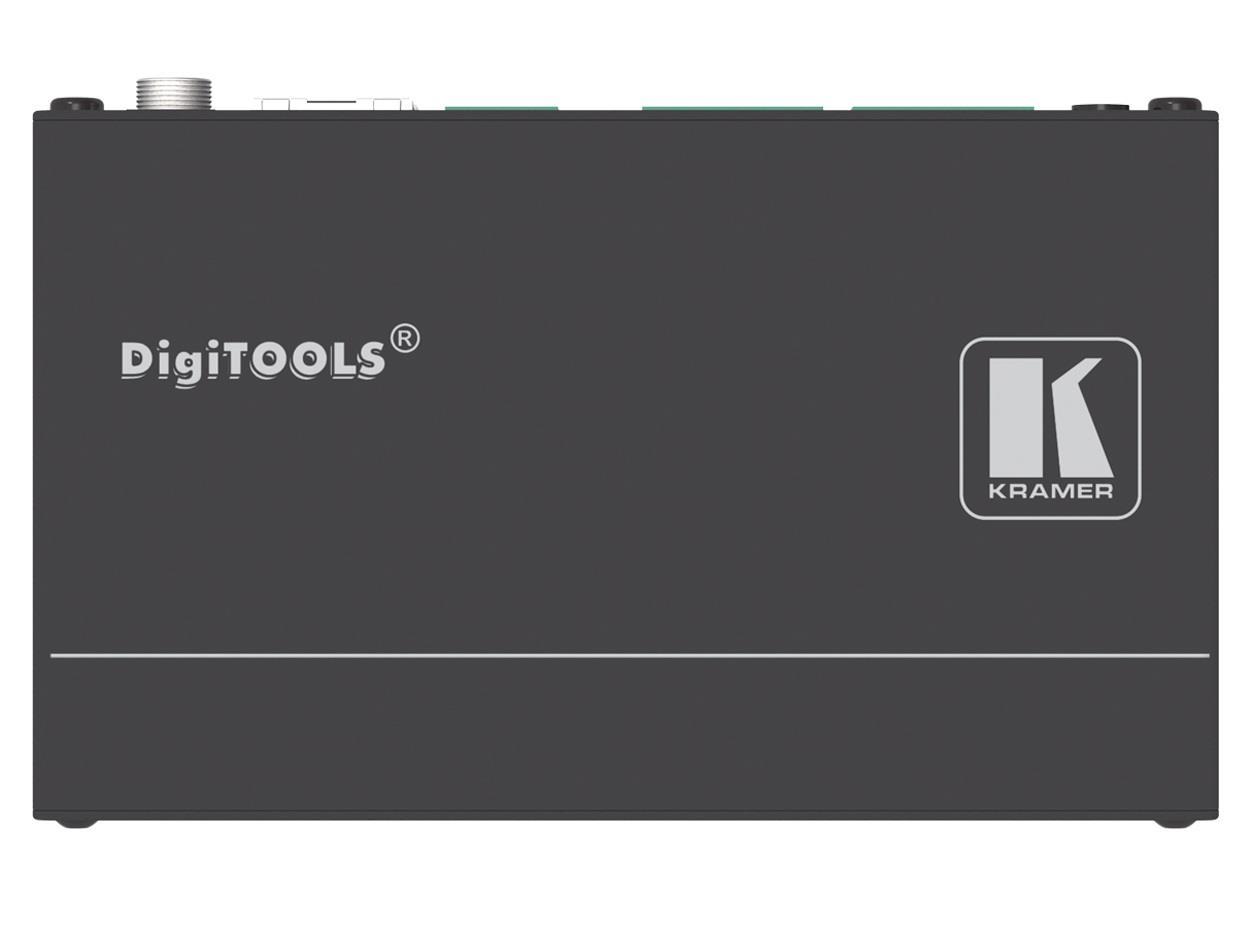

DSP−1 is a digital sound processor that enables the control of individual volume per input, 3−band parametric EQ, selectable HPF (high−pass filters) at 70Hz and master volume via IP. DSP−1 is a small form factor and cost−effective solution suitable for a range of audio applications.

Key Features:

  • 2–Input Mixing with Master Volume.
  • 3–Band Parametric Equalizer — Frequency, Q–factor & gain control per band.
  • Hi–Pass Filter — Selectable HPF at 70Hz.
  • Line–Level Amplifier for Audio Gain and Attenuation.
  • Control with Built–In Web Page & RS–232.
  • Creates & Saves Presets.
  • Highly Cost Effective.
  • Professional, Studio Grade Signal Conversion Technology — Includes the latest generation 32–bit advanced Digital Analog Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. Maintains the quality of the original audio signal with selectable sampling rates up to 96 kHz.

APPLICATIONS

  • Classrooms or educational facilities
  • Meeting rooms
  • Huddle spaces
  • Auditoriums


Audio specification

DSP
Kyllä

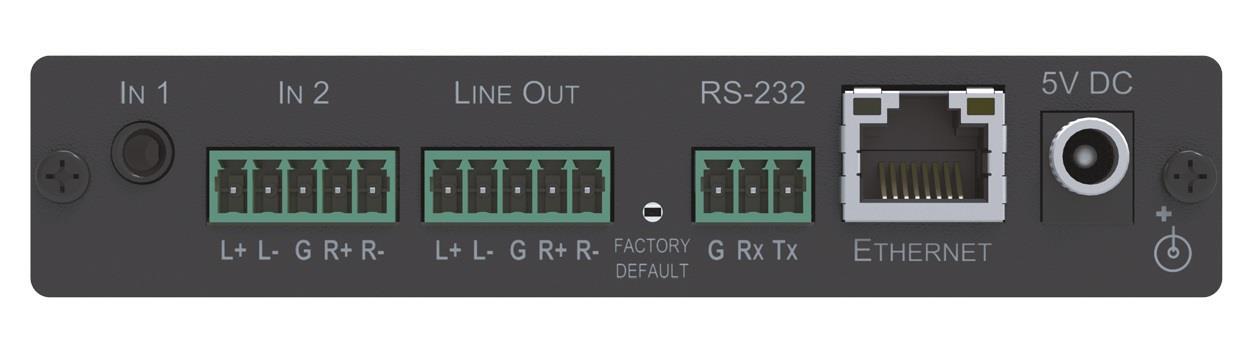

Connections

Input channels
4 Mono (2 Stereo)
Output channels
2 Mono (1 Stereo)
Audio inputs
3,5mm tele, Euroblock line
Audio outputs
Euroblock line
Ethernet
Kyllä
Control
RS-232, Web interface
Dante
Ei
WiFi
Ei

Energy

Power Supply
5V DC, 350mA Power Supply

Mitat ja Paino

Width
120 mm
Depth
71,5 mm
Height
24,4 mm
Net weight
0,2 kg

Additional information

Application
19" Rack, 1U With optional rack adapter (RK-3T)
Application
Freestanding/Shelf, Table
Included Accessories
Power supply, mounting bracket
Warranty
7 vuotta

Paketin tiedot

Paketin mitat
157 x 120 x 87 mm
Paketin paino
603 g
