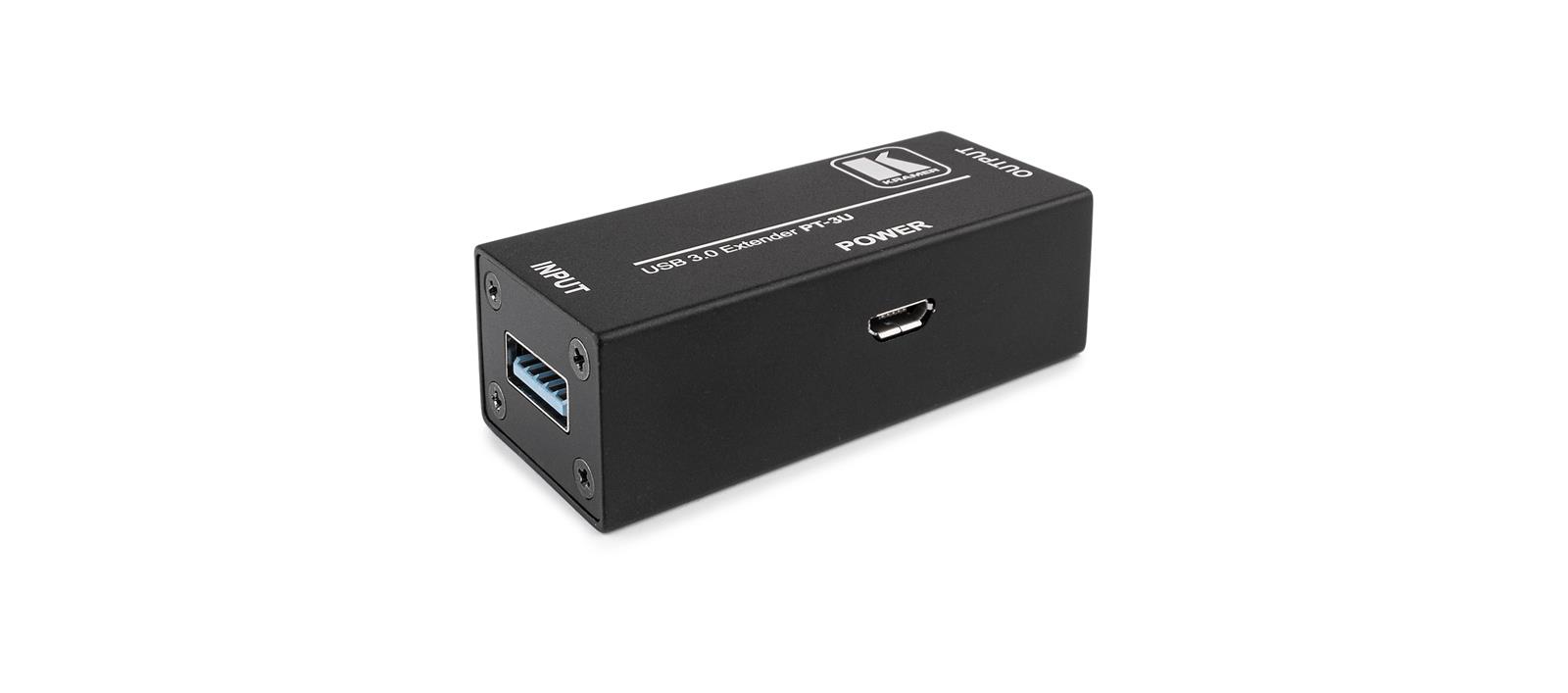

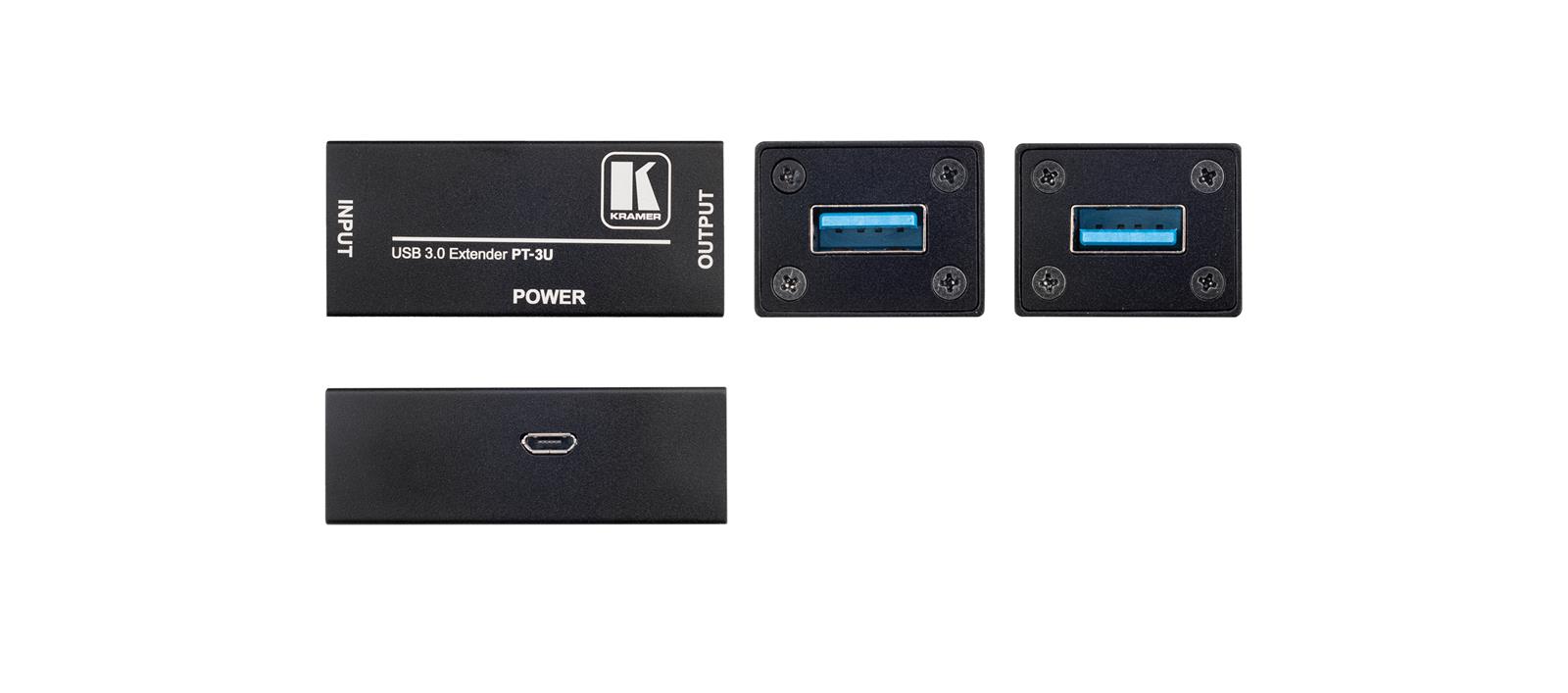

PT−3U is an innovative active USB 3.0 extender that extends the USB cable distance between the host and the device by reclocking and equalizing the USB signal. Placing PT−3U in the transmission path, removes dropout and digital noise (sparkles) in your installation that may result from using long USB cables.

  • True Plug & Play — No additional driver program is needed.
  • USB 3.0 Super Speed (5Gbps) Standard — Compliant with USB 3.0.
  • Backwards Compatible — USB 2.0, 1.1
  • Optional external power supply.
  • Buffers incoming & outgoing signal.
  • Certifications — CE, FCC, REACH, ROHS.


General

Extender type
Repeater
Range (max)
4,85 m 3m to PT–3U, 1.85m to Device (at USB 3.0, 5 Gbps)

Features

USB standard
1.1, 2.0, 3.0
USB/Data connection from
USB-A
USB/Data connection to
USB-A

Energy

Power Supply
USB powered, or via optional power supply

Measurements and weight

Width
26 mm
Height
20 mm

Additional information

Application
Freestanding/Shelf
Warranty
7 vuotta

Paketin tiedot

Paketin mitat
157 x 120 x 87 mm
Paketin paino
68 g
