Datasheet

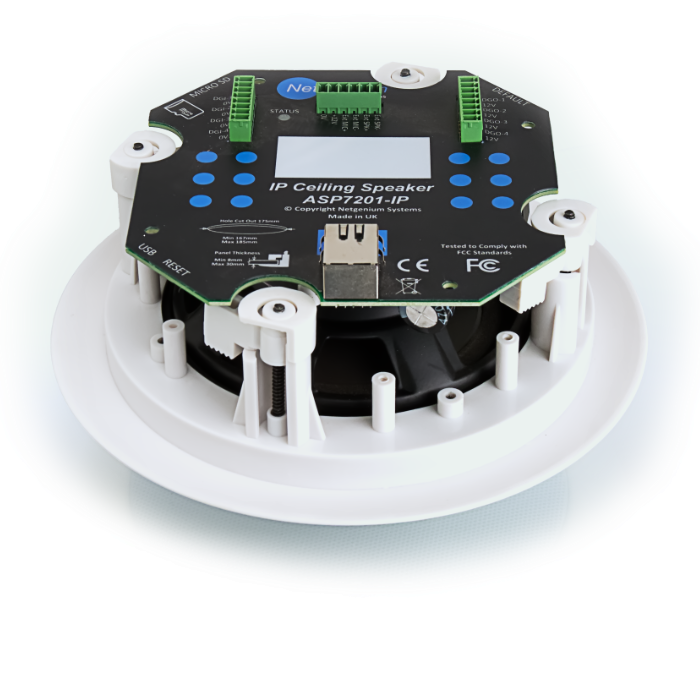

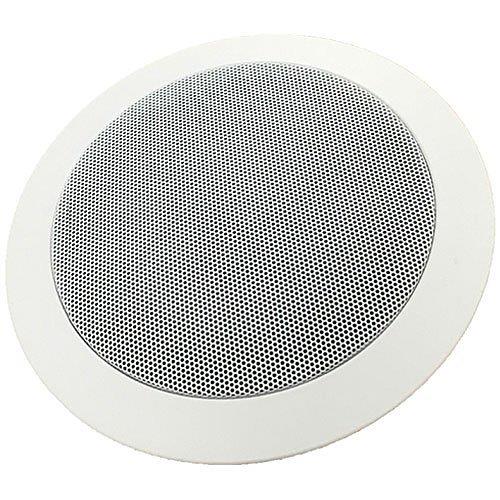

SP7201-IP PoE Ceiling Speaker

The ASP7201-IP PoE Ceiling Speaker is the perfect speaker for applications such as public address, music streaming, pre-recorded announcements and scheduled announcements.

Installed flush into a ceiling or ceiling or wall mount using the ASP7201-SMB Surface Mount Box, the speaker can be easily installed in school corridors and classrooms, reception areas, office meeting rooms, shop floors and waiting room type environments.

Tech Specs
Model No
ASP7201-IP

Connectivity
1 No. 10/100 Base TX Ethernet RJ45

Supported Codecs
G711 uLaw, G711 ALaw, PCM
Wav 11.025 Khz, Wav 22.05 Khz, Wav 44.1 Khz, Wav 48 Khz

Onboard I/O
No 4 Flex Inputs (Requires Digital 0v contact)
No 4 Flex Outputs (12V switched –ve)
Flex I/O can be used for local announcements, IP events and PolicyServer control

Power Supply
Power over Ethernet IEEE820.3af

Mechanical
Case Diameter: 203mm
Net Weight: 700g



General

Color
Valkoinen

Mitat ja Paino

Width
203 mm
Net weight
0,7 kg

Paketin tiedot

Paketin mitat
200 x 200 x 200 mm
Paketin paino
5,00 kg
