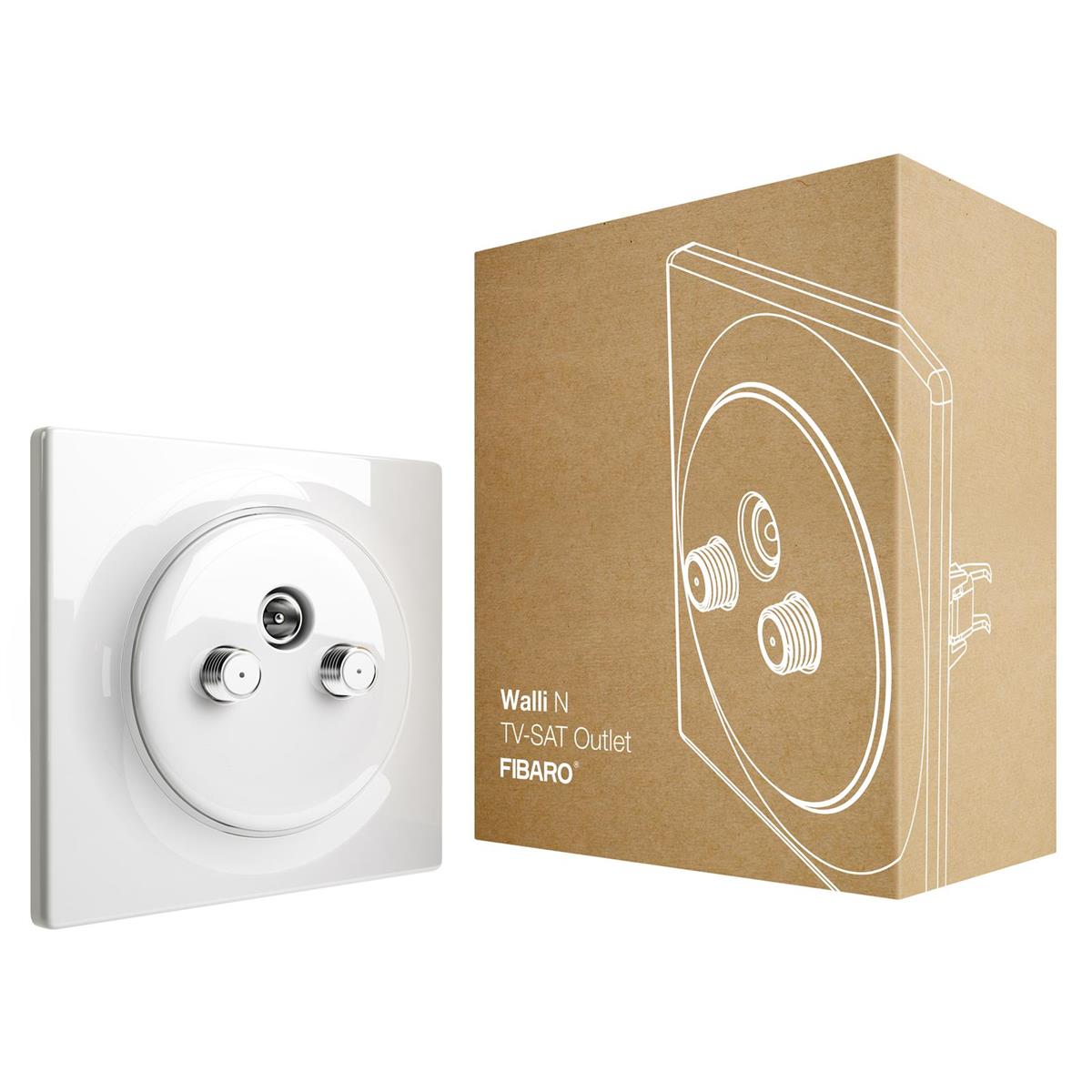

Fibaro Walli N TV-SAT Outlet
High quality tool-free TV-SAT socket with 2 SAT connectors and 1 TV connector.
Installing the product requires installation of a certified electrician
• Simple toolless installation.
• Low thickness of the mechanism which contributes to more space for wires.

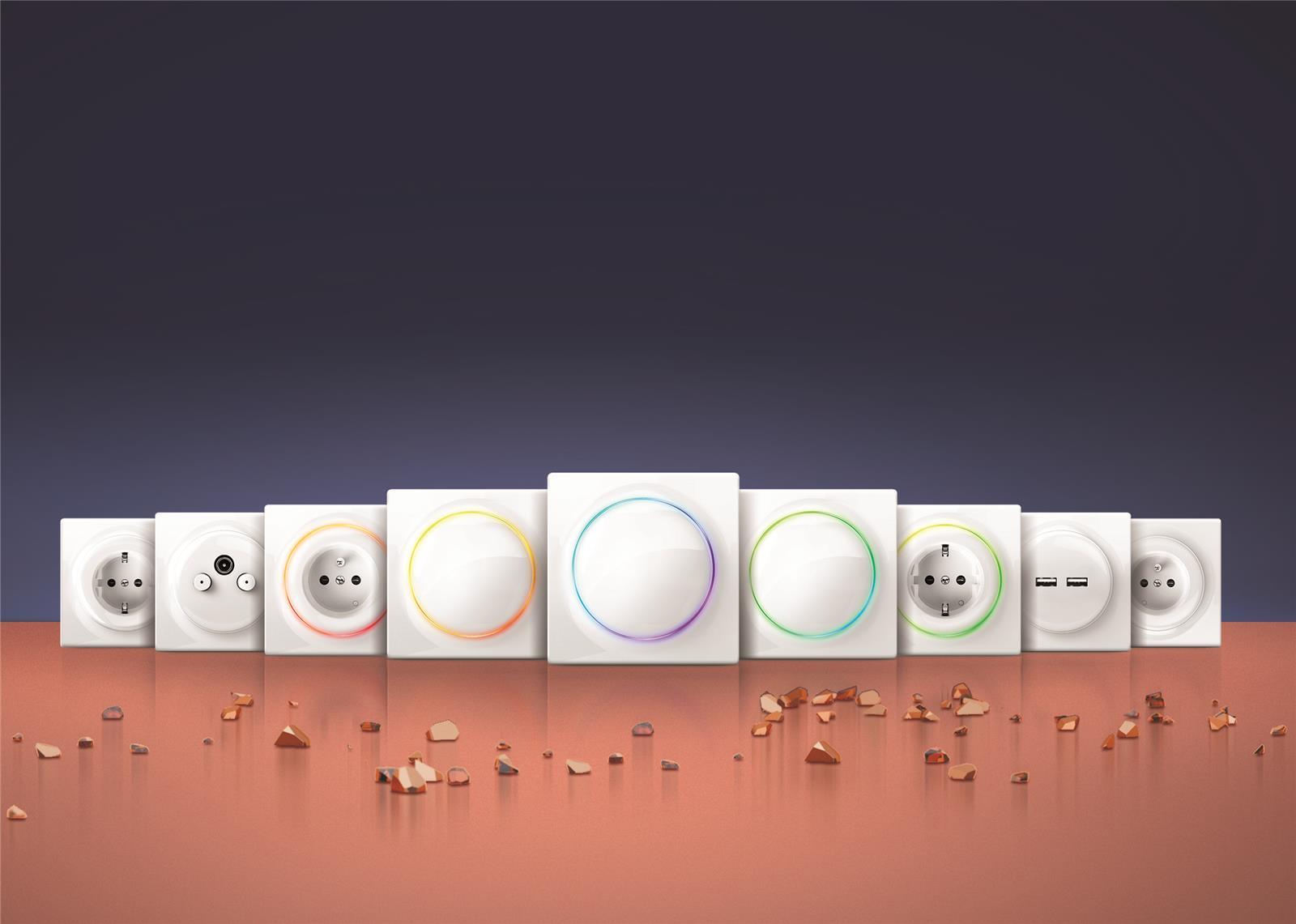

• Perfect match with the mechanism and assembly in multiple frames with other products in the Walli line.
Impedance of inputs/outputs: 75Ω/75Ω
shielding effectiveness: >85dB
For wire: inner wire: Ø = 1.1mm
outer cable: Ø = max 7mm
Remote converter power input: 24V= / 500mA by SAT1 & SAT2
Number of outputs:
2 x SAT socket (IEC 61169-24)
1 x RTV plug (IEC 61169-2)
For installation in boxes: Ø = 60mm, depth ≥ 40mm
Dimensions (H x W x D): 86 x 86 x 47mm
Package details: 115x140x75 mm
Installing the product requires installation of a certified electrician
Paketin tiedot
- Paketin mitat
- 115 x 140 x 75 mm
- Paketin paino
- 180 g
