Datasheet

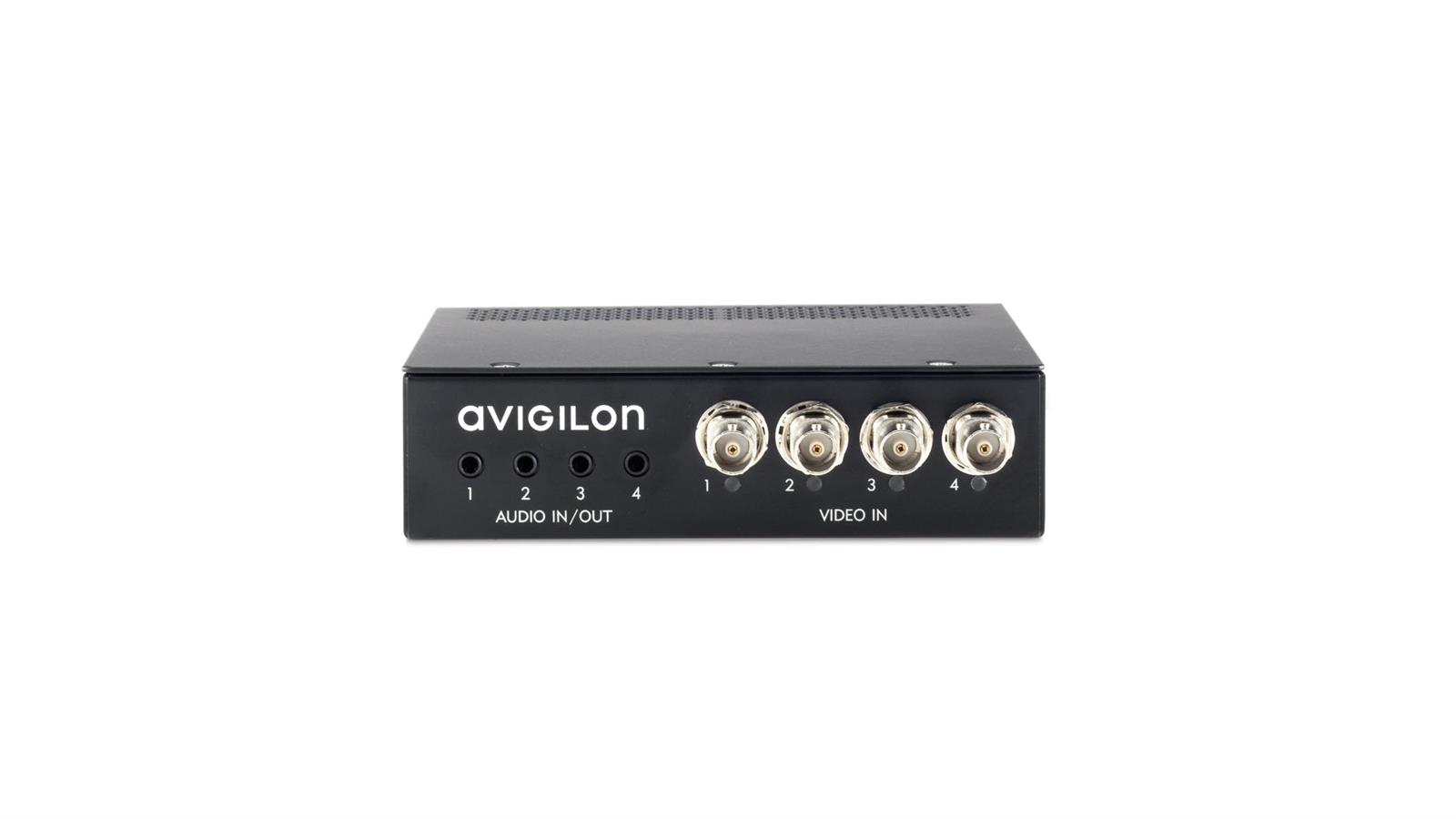

4-Port H.264 Analog Video Encoder with Audio Support

KEY FEATURES
4 video channels
Max resolution 720 x 480 (NTSC) or 720 x 576 (PAL)
30 images per second from each port
H.264 and Motion JPEG compression
Motion adaptive 3D deinterlacing
Support for PTZ and dome cameras via RS-485 interface
Up to 4 privacy zones available per channel
4 audio input channels
4 audio output channels
External I/O terminals
Power over Ethernet, 24 VAC or 12 VDC power input
Automatically connects to Avigilon Control Center NVMS and Avigilon Blue cloud platform
Rack mount kit allows 3 encoders in 1U of rack space



Mitat ja Paino

Width
140 mm
Depth
123 mm
Height
38 mm
Net weight
0,62 kg

Lisäinformaatio

Warranty
3 vuotta

Paketin tiedot

Paketin mitat
220 x 177 x 86 mm
Paketin paino
768 g

Tarvikkeet

Artikkelinumero 3600893
