Description

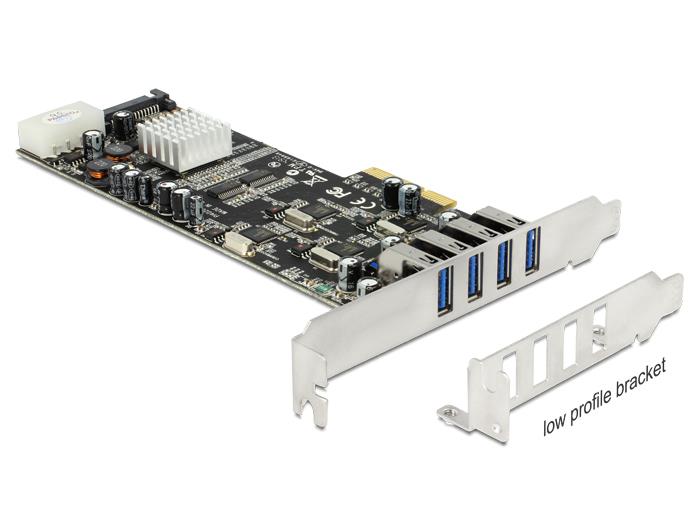

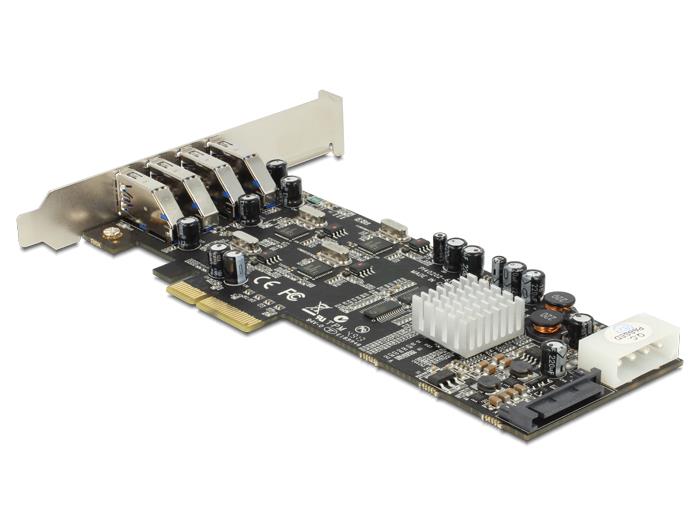

The PCI Express card by Delock expands a PC by four external USB 3.0 ports. Each port is supported by a single Renesas chip, which provides a high data transfer rate. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected. Due to the vertical direction of the USB 3.0 ports, it is possible to install it into a low profile slot.

Specification

  • Connectors:
  • external:
  • 4 x USB 3.0 Type-A female
  • internal:
  • 1 x SATA power connector
  • 1 x Molex 4 pin power connector
  • 1 x PCI Express x4, V2.0
  • Chipset: 4 x Renesas D720202
  • Data transfer rate up to:
  • SuperSpeed 5 Gbps,
  • Hi-Speed 480 Mbps,
  • Full-Speed 12 Mbps, Low-Speed 1.5 Mbps

System requirements
Linux Kernel 2.6 or above
Windows 7/7-64/8.1/8.1-64/10/10-64
PC with one free PCI Express x4 / x8 / x16 / x32 slot
Power supply with a free power connector

Package content
PCI Express card USB 3.0
Low profile bracket
Driver CD
User manual

Package
Retail Box



General

Interface
PCIe
Power Connector
USB 3.2 Gen 1 (3.1 Gen 1)

Paketin tiedot

Paketin mitat
209 x 152 x 37 mm
Paketin paino
191 g
