Description

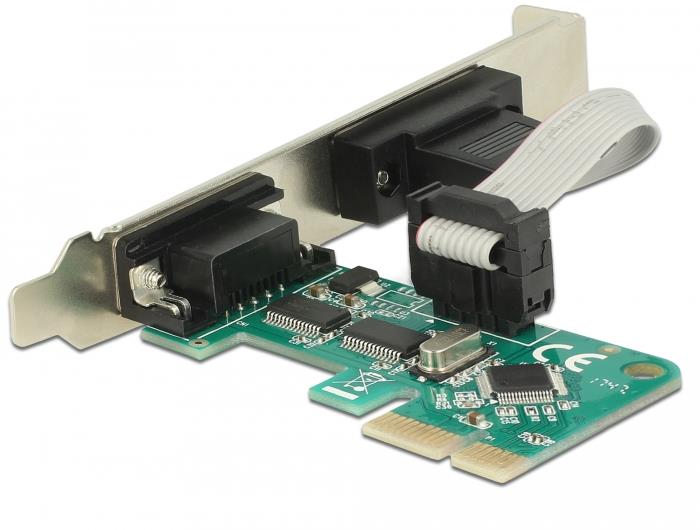

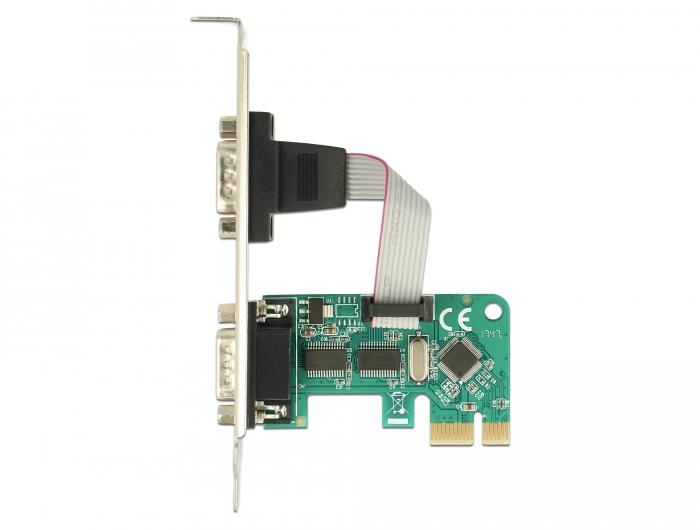

The PCI Express card by Delock expands a PC by two external serial RS-232 ports. Different devices such as scanner, protocol converter, IoT devices etc. can be connected to this card. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.

Specification

  • Connectors:
  • external: 2 x serial RS-232 DB9 male
  • internal: 1 x PCI Express x1, V1.1
  • Chipset: WCH CH382L
  • Compatible with 16C550 UART
  • Buffer: 256 byte on each port
  • Databits: 5, 6, 7, 8
  • Stop bits: 1, 2
  • Parity: even, odd, none, mark, space
  • Flow control: none, hardware RTS / CTS, software XON / XOFF

System requirements
Linux Kernel 4.15 or above
Windows 7/7-64/8.1/8.1-64/10/10-64/11
PC with one free PCI Express slot

Package content
PCI Express card
2 x low profile bracket
Driver CD
User manual

Package
Retail Box



General

Interface
PCIe

Paketin tiedot

Paketin mitat
150 x 160 x 20 mm
Paketin paino
148 g
