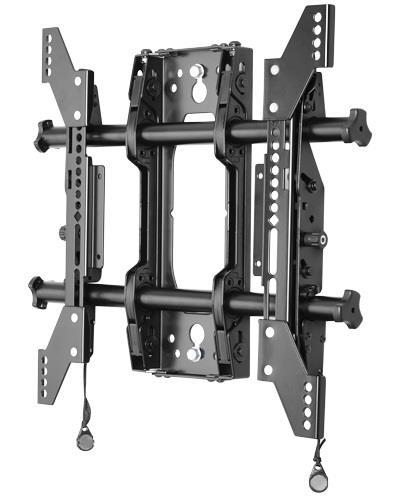

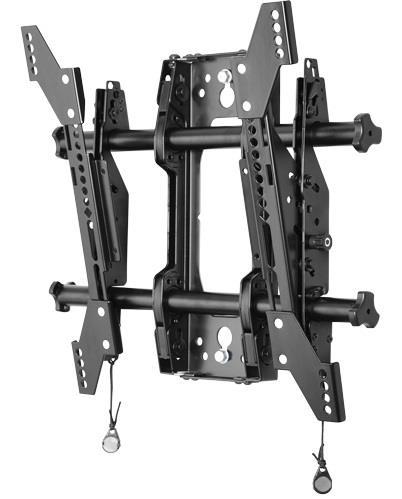

Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for medium displays with a low-profile display mounting solution.
This single stud Fusion mount hides better behind smaller narrow bezel displays in the 32-47" range. Many installer-friendly features of Fusion in a smaller form to create superior aesthetic results.
The mount incorporates Fusion favorites like Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
Key Features:
• Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
• Tilt can be locked at 0°, -6° or -12°
• ControlZone leveling allows post-installation fine-tuning of height and leveling
• ClickConnect offers an audible click when the display safely engages with the mount
• Post-installation lateral positioning
• Set screws keep the mount rigid, stable and secure throughout the life of the installation
• Exclusive nesting spacers can be stacked to achieve any depth
• Quick-Store Cords use magnets to easily store and access pull cords
• Integrated Security
• Ships with a custom hardware kit that can be hung from mount rails if installing in stages
• Easy Open box with less waste to throw away
General
- Number of displays
- 1 pcs.
- Application
- Wall
- Color
- Musta
- Display orientation
- Landscape
- Videowall
- Ei
Functions
- Height adjustable
- Kyllä 25mm
- Side adjustment
- Kyllä
- Depth adjustment
- Ei
- Tiltable
- Kyllä +2°, -12°
- Swing/Pan
- Ei
- Roll/Pivot
- Ei
- Motorized
- Ei
- Lockable
- Kyllä With optional padlock
Mitat ja Paino
- VESA mount interface (mm)
- 100x100, 100x200, 200x100, 200x200, 200x400, 300x200, 300x300, 300x400, 400x400
- Weight capacity (per screen)
- 34 kg
Additional information
- Warranty
- 10 vuotta
Paketin tiedot
- Paketin mitat
- 510 x 500 x 75 mm
- Paketin paino
- 7,50 kg
