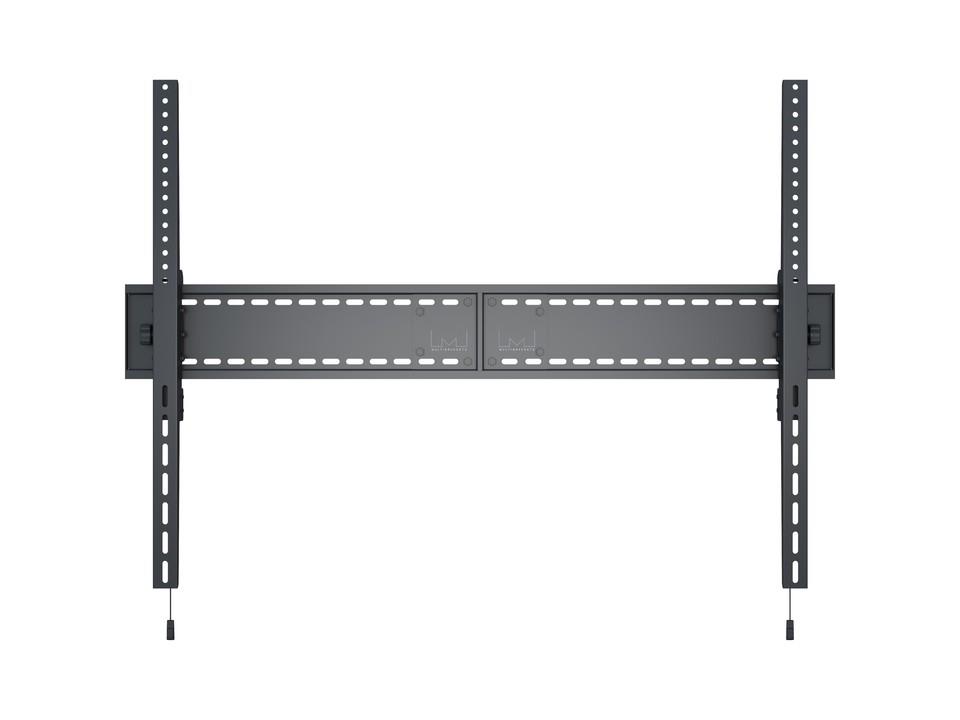

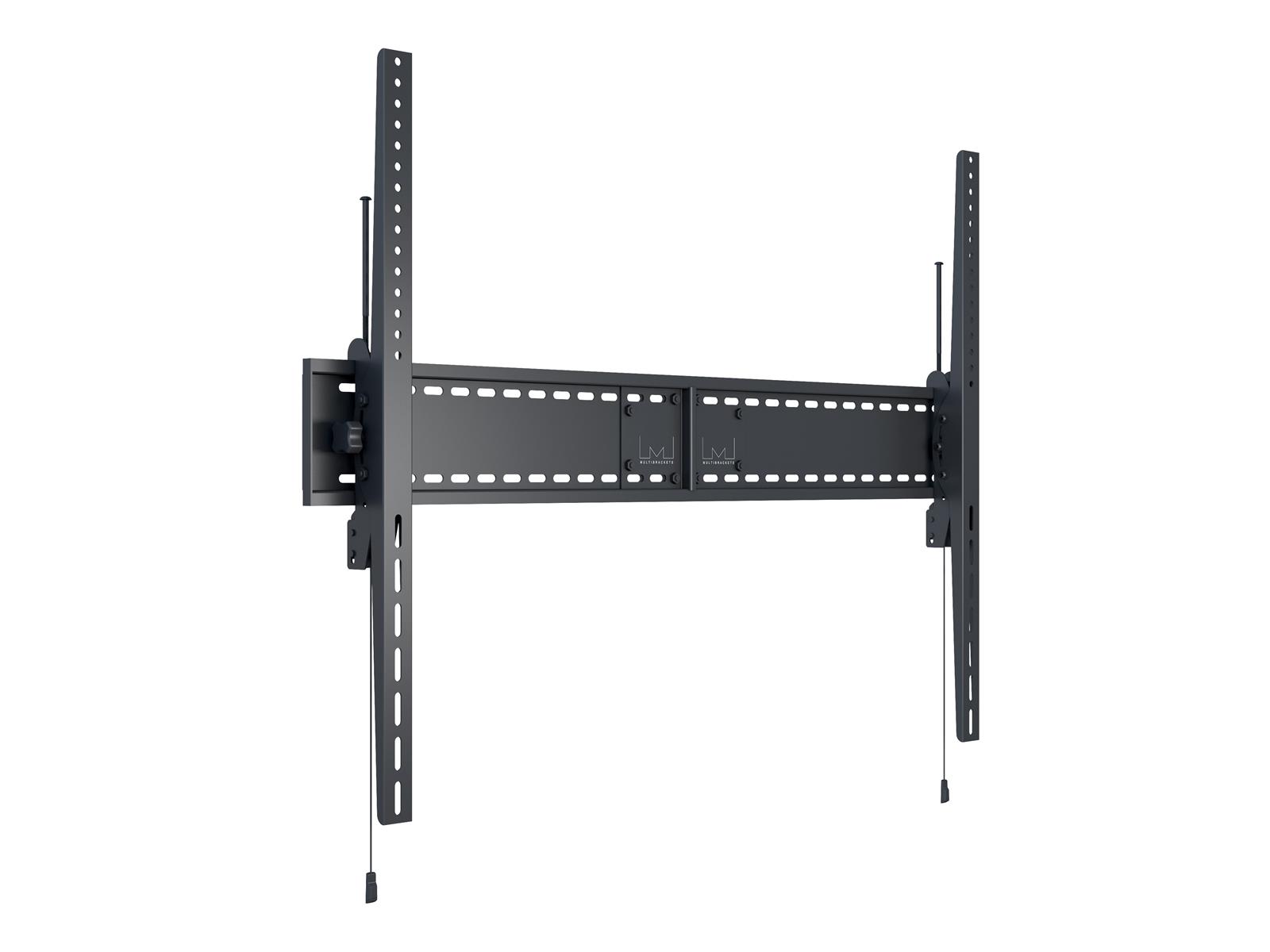

Multibrackets M Universal Wallmount Tilt SD MAX - Wall mount for LCD / LED panel - arms latch securely - 3mm cold-rolled steel - black - screen size: 63" - 110"
The M Universal Wallmount Fixed and Tilt series has been developed to satisfy the growing demand for extra large screen installations into the commercial and public sectors.
Capable of supporting weights of 125kg, the new super-size wall mount is designed to support larger screens, such as heavy touch screens and extra large displays in public places. The universal interface fits screens with VESA mounting patterns up to 1200mm x 900mm and has adjustment screws that enable the screen to be leveled once mounted.
The Multibrackets M Universal Tilt SD is a versatile wall mount for large display installations. With its smart design the mount can be used for both landscape and portrait installations. With a maxweight capacity of 125kg´s it can handle screens up to 110". With a wide VESA range of 1200x900 it can also handle most VESA specifications large screens are using.
The Multibrackets M Universal Mount SD series of tilt, fixed, and pull-out mounts from Multibrackets are engineered to solve tough installation problems such as leveling and stud location. Installerinspired features make installation and maintenance safe and easy. This series of mounts makes it easy to take control of your installation. Universal and with low-profile mounts they are engineeredfor speed of installation and usability. With a variety of products ranging from a single TV to a video wall matrix for digital signage, Multibrackets SD mounts are the perfect solution for manyapplications.
Highlights
- Clean look & easy to install
- Perfect for digital signage, educational and corporate installations.
- To be used in both landscape and portait installations.
- Engineered for speed of installation and usability
- Tilt angle can be adjusted without removing the screen.
- Slim 75mm distance to wall
- Super Duty (SD) 125kg max load
- Superduty 3mm cold-rolled steel
- Arms latch securely
- Anti-theft: Lock and key (optional)
General
- Number of displays
- 1 pcs.
- Application
- Wall
- Color
- Musta
- Display orientation
- Landscape, Portrait
- Videowall
- Ei
Functions
- Height adjustable
- Ei
- Side adjustment
- Ei
- Depth adjustment
- Ei
- Tiltable
- Kyllä +10°
- Swing/Pan
- Ei
- Roll/Pivot
- Ei
- Motorized
- Ei
- Lockable
- Kyllä
Mitat ja Paino
- VESA mount interface (mm)
- 1000x400, 1000x600, 1100x400, 1100x600, 1200x400, 1200x600, 1200x700, 200x200, 200x300, 200x400, 200x500, 200x600, 200x800, 300x200, 300x300, 300x400, 300x500, 300x600, 300x700, 300x800, 300x900, 400x200, 400x300, 400x400, 400x500, 400x600, 400x700, 400x800, 400x900, 500x200, 500x300, 500x400, 500x500, 500x600, 500x700, 500x800, 500x900, 600x200, 600x300, 600x400, 600x500, 600x600, 600x700, 600x800, 600x900, 700x200, 700x300, 700x400, 700x500, 700x600, 700x700, 700x800, 700x900, 800x200, 800x300, 800x400, 800x500, 800x600, 800x700, 800x800, 800x900, 900x200, 900x300, 900x400, 900x500, 900x600, 900x700, 900x800, 900x900
- Weight capacity (per screen)
- 125 kg
- Net weight
- 12,5 kg
Additional information
- Warranty
- 5 vuotta
Paketin tiedot
- Paketin mitat
- 960 x 200 x 120 mm
- Paketin paino
- 11,50 kg
Paketin tiedot kpl
- Paketin mitat
- 970 x 390 x 220 mm
- Paketin paino
- 32,30 kg
