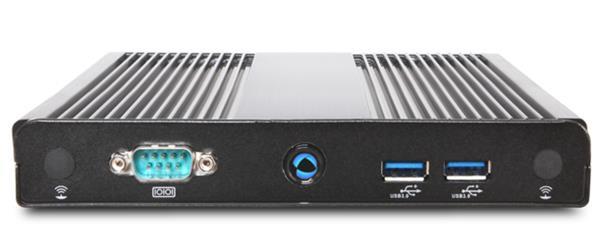

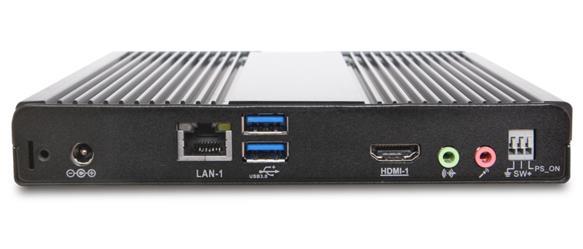

Cost effective UHD (4k) Media Player
A value range device based on the reliable Intel® Dual Core Apollo Lake® Processor N3350, which is capable of running UHD playback. The DE3450S supports one Ultra HD (4K@60Hz) resolution display via HMDI2.0 port, and HEVC/H.265 10 bit high-defi nition video playback. Its fanless and solid state design make sure that it’s one of the most reliable players in the market today.

Key Features:
● Supports Ultra HD (4K@60p) resolution and HEVC/H.265 & VP9 high-defi nition video playback
● HDMI 2.0
● Support TPM2.0, the use of validated encryption key brings extra security to your device
● Watchdog timer for device monitoring and control

In the box:
1 x DE3450 system
1 x User Guide
1 x Driver CD
1 x 40W Adapter and Power Cord
1 x L type Holder with 4 pcs of M3 screw
4 x Rubber Pad
1 x power holder

Spec:
Support Intel Apollo lake CPU: Intel Apollo lake M Dual Core N3350
Graphics: Intel HD Graphic 500
Fanless & Non-Venting hole design
DC in 12/19V 40W adapter
Dimensions: 166 x 158 x 25 mm



General

Operating System
Win10 IOT Multibundle

Suoritin

CPU Model
N3350
CPU Speed
2,4 GHz
Number of cores
2 pcs.
Number of threads
2 pcs.

Memory

Max Memory Supported
8 GB
Memory slots
2 pcs.

Graphics

GPU Model
Intel HD Graphics 500
GPU Core Clock
650 MHz
Video memory
4 GB
Display Connections
1 pcs.

Connections

HDMI
Kyllä 2.0
DisplayPort
Ei
USB type-A
Kyllä x4 USB 3.0
USB type-C
Ei

Communication

Ethernet
Kyllä
Wi-Fi
Ei
Bluetooth
Ei

Energy

Power Supply
40W AC Adapter

Mitat ja Paino

Width
166 mm
Depth
158 mm
Height
25 mm
Net weight
0,8 kg

Additional Information

Warranty
2 vuotta

Paketin tiedot

Paketin mitat
264 x 236 x 76 mm
Paketin paino
1,47 kg
Viivakoodi
4710469999093
