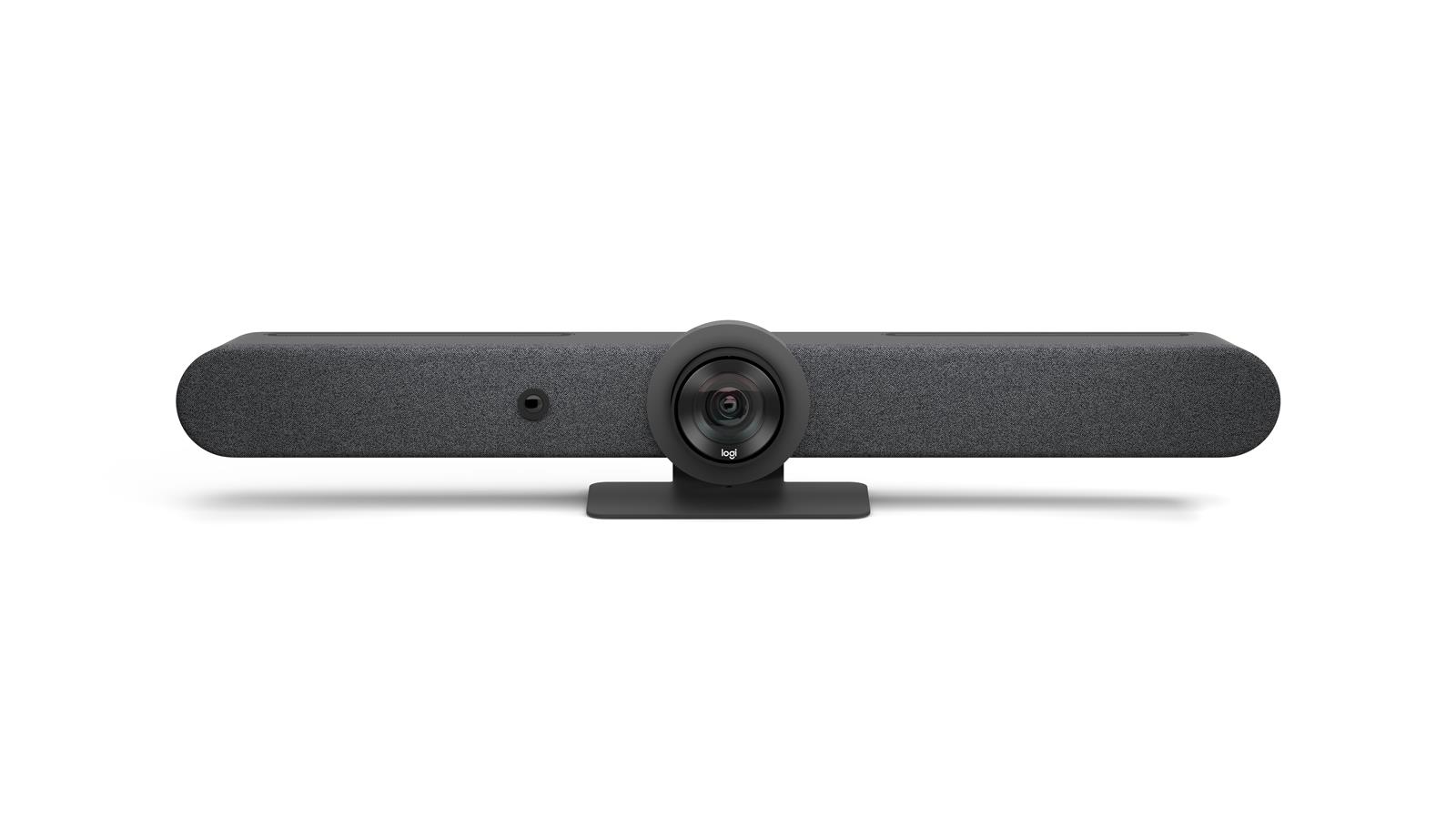

ALL-IN-ONE VIDEO BAR FOR MEDIUM TO LARGE ROOMS

Logitech Rally Bar sets a new standard for video meetings in midsize rooms, with expansion options for larger groups and settings. It’s remarkably simple to use, manage, and deploy at scale, delivering cinema-quality video and audio in a sleek, all-in-one form factor. Plug and play Rally Bar with any PC or Mac, or leverage the built-in compute to run video conferencing applications directly on the device. Rally Bar features a multi-element lens assembly, powerful low distortion speakers, and an advanced mic system to create meeting experiences that sound as good as they look. A dedicated AI camera amplifies RightSight auto-framing and delivers insights about room usage directly to the Logitech Sync dashboard. Upgrade your video collaboration with Rally Bar.



General

Application/Certification
Microsoft Teams Room on Android
Application/Certification
USB BYOD
Application/Certification
Zoom Rooms
Platform/OS
Android
Room Size
Medium room 4-8p

Camera

Camera type
Video soundbar with PTZ camera
Resolution
3840x2160 Camera
Framerate
30 FPS
Optical zoom
5 x 15X HD zoom (5X optical, 3X digital available with upcoming software update)
Digital zoom
3 x
Field of view (horizontal)
82,1 ° 90° Diagonal Field of View
Pan movement +/-
25 ° Motorized
Tilt movement down
15 ° Motorized
Tilt movement up
15 ° Motorized
Auto framing/tracking
Kyllä RightSight 2 with Speaker View, Grid View

Audio specifications

Built-in microphone
Kyllä 6x Beamforming MEMS mics
External microphone
Kyllä up to 4 additional Rally mic pods
Audio pickup range
7 m
Built-in speaker
Kyllä 2x 70mm Output: 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter

Communication

Ethernet
Kyllä 10/100/1000
Wi-Fi
Built-in

Connections

Video in
HDMI
Video out
HDMI x2 (Max display resolution 1080p)
USB connection
USB-A x3
USB connection
USB-C
USB standard
3.0

Energy

Power Supply
100-240V, 19V, 4.74A External Pos

Mitat ja Paino

Width
910 mm
Depth
130,5 mm
Height
164 mm
Net weight
7,08 kg

Additional information

Color
Musta
Included Accessories

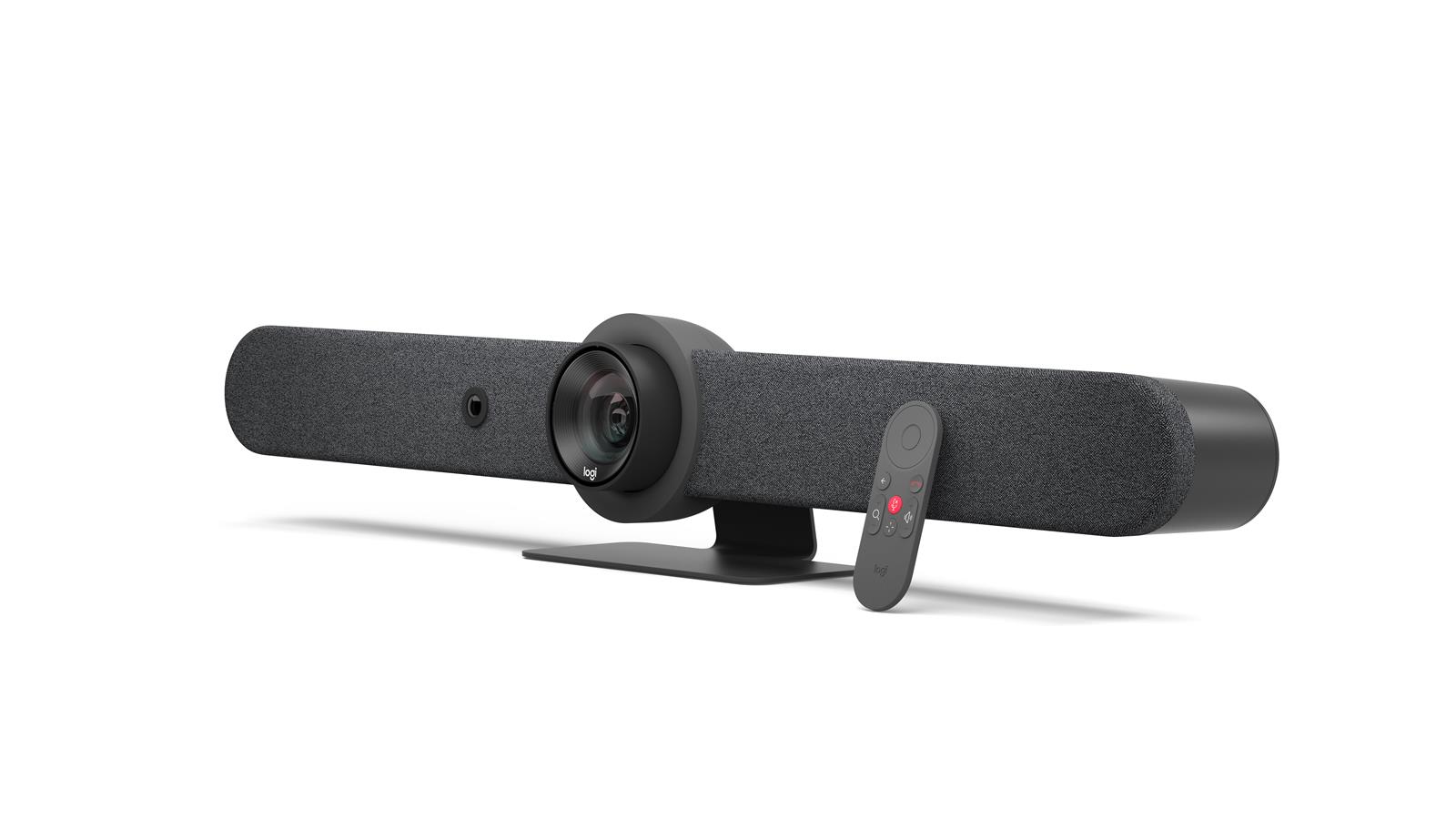

Rally Bar Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main camera and AI Viewfinder User documentation
Warranty
2 vuotta

Paketin tiedot

Paketin mitat
1 000 x 230 x 220 mm
Paketin paino
9,95 kg
