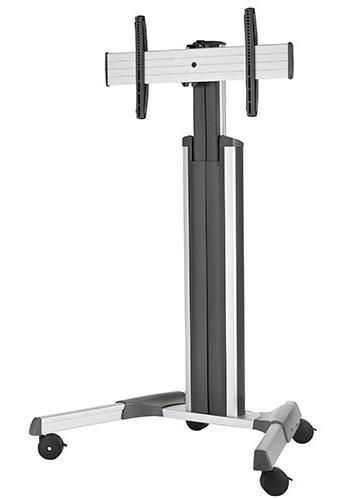

This mobile Fusion AV cart incorporates rounded edges and sleek features to give the cart a softer professional feel that fits well in corporate and classroom environments. The height can be adjusted by one person via hand or 1/2" hex bit on a power drill.

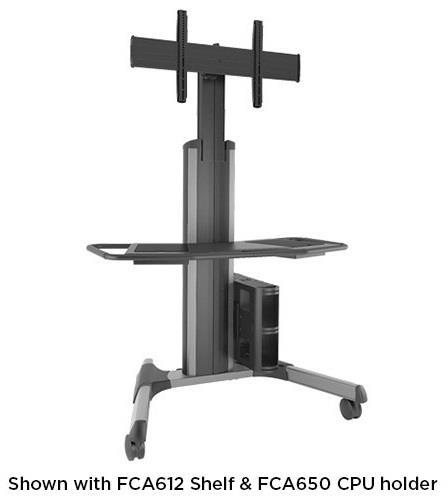

Note: shelf and CPU holder accessories sold separately.

Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.

Key Features

  • Sleek look suitable for multiple environments
  • Turn knob allows single user to easily adjust the screen height by hand or 1/2" hex drill bit to any height between 50 and 70 inches (127 - 177 cm)
  • Flexible cable covers allow lay in access anywhere along column
  • Centris Technology provides tilt and roll with use of knobs
  • Landscape screen orientation (portrait only if screen is at least 34" tall and has a mounting pattern 400 x 400mm or smaller)
  • Ships with preassembled heavy-duty casters (front two casters are lockable)


General

Number of displays
1 pcs.
Display orientation
Landscape
Application
Floor
Color
Hopea
Videowall
Ei

Functions

Column Type
Adjustable
Height adjustable
Kyllä
Tiltable
Kyllä +/- 5°
Roll/Pivot
Ei
Mobile
Kyllä
Motorized
Ei
Lockable
Ei

Mitat ja Paino

VESA mount interface (mm)
200x200, 200x300, 200x400, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400, 500x200, 500x300, 500x400, 600x200, 600x300, 600x400, 700x200, 700x300, 700x400, 800x200, 800x300, 800x500
Column lenght min
1 270 mm Floor to center of display
Column lenght max
1 770 mm Floor to center of display
Weight capacity (per screen)
90,7 kg

Additional information

Warranty
10 vuotta

Paketin tiedot

Paketin mitat
1 257 x 800 x 190 mm
Paketin paino
41,28 kg

Tarvikkeet

Artikkelinumero 2200204
Artikkelinumero 2200221
Artikkelinumero 2200246
Artikkelinumero 2213938
