The Media Engine ME57U is a low-range media player with two outputs and a compact design. This media engine is created for simple signage which runs 1x UHD (4K) @60Hz.

  • 7th Generation Intel® Core™, available in i3 and i5
  • 1 x UHD (4K) @60Hz (1x via miniDP) or 2 x UHD (4K) @30Hz (1 x via miniDP and 1 x via HDMI) HEVC/ H.265 & VP9 high-definition playback (hardware accelerated)
  • Compact size
  • 24/ 7 Operation

UHD (4K) Content playback
This media player is capable of driving UHD (4k) content. With a resolution that goes up to 3840x2160 pixels your content will be close to perfect. This feature marks the players that are capable of delivering content that is fluent and stutter free in UHD (4k).

Reliable high-end computing, low power consumption
This Media engine is created for 24/7 use. It is actively cooled with a fan and ensures low power consumption. Combine this feature with a long lifecycle and you will see why this Media Engine will lower your Total Cost of Ownership (TCO).

Dual Output player
Dual output player, for dual display solutions. These value or mid-range computing devices have multiple outputs, and are therefore perfect for digital signage and dual screen kiosks.

Integrated HEVC/H.265 10bit Codec
These units support native hardware decoding for modern codecs like the HEVC/H265 10 bit. Offloading the CPU, the GPU handles the decoding of the video. This creates a fluent playback up to 60fps.



Suoritin

CPU Model
Intel Core i5-7200U

Memory

Memory
8 GB 2x 4 GB
Memory Type
DDR4 SO-DIMM
Max Memory Supported
32 GB depending on OS
Memory slots
2 pcs.

Graphics

GPU Model
HD Graphics 620
Display Connections
2 pcs.

Storage

Storage type
2.5" SATA HDD/SSD x1, M.2 SSD x1
Storage size
128 GB

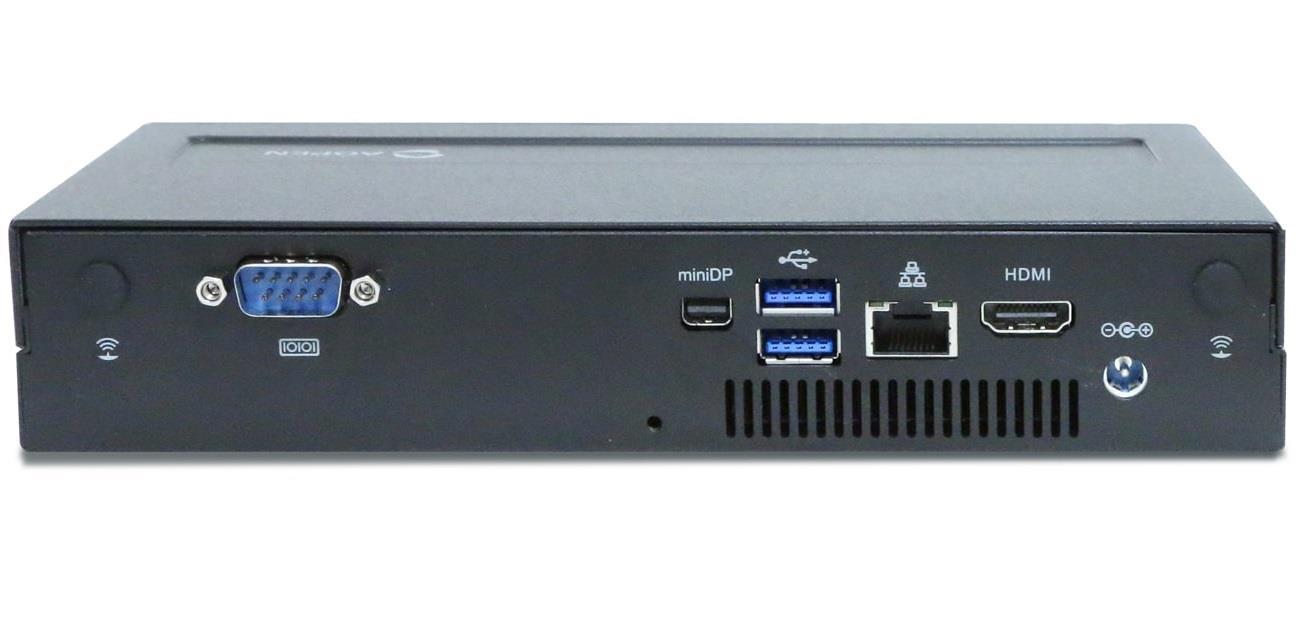

Connections

HDMI
Kyllä 1.4
DisplayPort
Kyllä Mini DisplayPort
USB type-A
Kyllä x3
USB type-C
Kyllä

Communication

Ethernet
Kyllä 10/100/1000 Mbps

Energy

Power Supply
100-240V External Power Supply, 65W (19V, 3.42A) AC Adapter

Mitat ja Paino

Width
210 mm
Depth
113 mm
Height
40 mm
Net weight
1,29 kg

Additional Information

Warranty
1 vuotta

Paketin tiedot

Paketin mitat
130 x 140 x 115 mm
Paketin paino
1,57 kg
