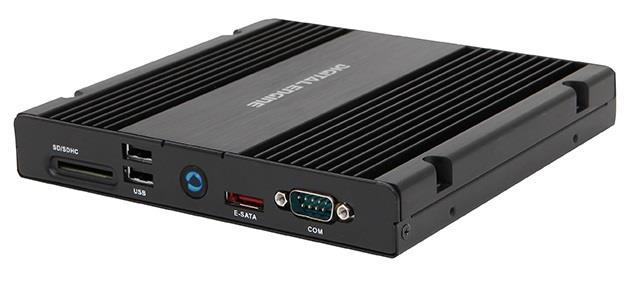

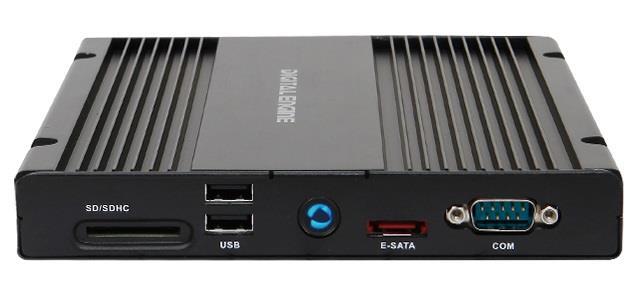

The DE3250 is a robust media player designed to cope with rugged, tough environments or moving vehicles. Its ultra-thin structure allows you to integrate the Digital Engine DE3250 seamlessly into any space. The solid-state disk and fanless design of the DE3250 ensures a first rate performance in any challenging situation.

Key Features:
· An ultra-thin (25 mm) form factor that allows flexible integration opportunities
· Handles vibrations, shocks and fluctuating tempratures with ease, due to its fanless design and solid-state disk (SSD)
· The DE3250 is built with the Intel® Celeron® quadcore Processor N2930, based on a new low-power, high-performance microarchitecture.

In the box:
1 x DE3250 system
1 x User Guide
1 x Driver CD
1 x 40W Adapter
1 x Power Cord
1 x L type Holder with 4 pcs of M3 screw
1 x DC in jack clamp

Spec:
Intel Bay Trail-M System on Chip(SoC)
N2930 Quad core 1.83GHz turbo to 2.16GHz
Connectors: 2x LAN, 1x eSATA, 1x COM port, 2x USB2.0, 3 x mini Card (2FS,1HH), 1x SIM Slot, 1xAntenna Hole
DC 12/19V, 40W AC Adapter
Dimensions: 166 x 158 x 25 mm



Suoritin

CPU Model
Intel Celeron N2930
CPU Speed
2,16 GHz Burst Frequency, 1.83 GHz Base Frequency
Number of cores
4 pcs.
Number of threads
4 pcs.

Memory

Memory
4 GB 2GB x 2
Memory Type
DDRIII L SO-DIMM 1333
Max Memory Supported
8 GB
Memory slots
2 pcs.

Graphics

GPU Model
Intel HD Graphics
GPU Core Clock
854 MHz
Video memory
4 GB
Display Connections
2 pcs.

Storage

Storage type
mSATA
Storage size
64 GB

Connections

HDMI
Kyllä x2
DisplayPort
Ei
USB type-A
Kyllä 2 x USB 2.0
USB type-C
Ei

Communication

Ethernet
Kyllä x2
WiFi
Ei
Bluetooth
Ei

Energy

Power Supply
40W (19V, 2.1A) AC Adapter

Mitat ja Paino

Width
166 mm
Depth
158 mm
Height
25 mm
Net weight
0,8 kg

Additional Information

Warranty
2 vuotta

Paketin tiedot

Paketin mitat
257 x 74 x 105 mm
Paketin paino
1,60 kg
