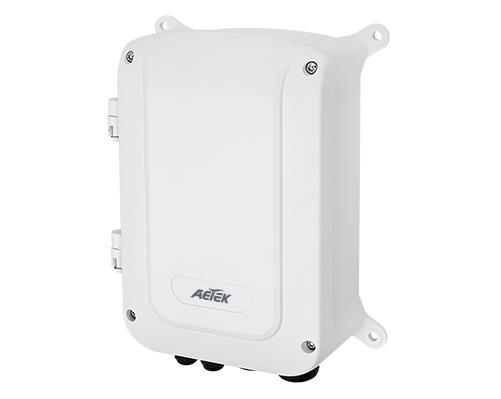

The H60 series of IP67/IK10 Pro L2 Managed PoE Switches are designed with 6KV Ethernet port surge protection, 4KV surge protection in DC Input , and harden-graded standard to operate between -40° C and 65° C for harsh weather conditions. They enable outdoor connections of PoE PDs to the network such as outdoor IP cameras, wireless APs, and other outdoor industrial applications.
The H60 series provides multi-port Gigabit PoE (10M/100M/1G) delivering data and power to PoE PDs over a single network cable and additional SFP transceiver slots for flexible uplink.
The H60 series has three sub models classified as power source equipment (PSE) and provide PoE budget up to 30W or 90W per port. Besides general functions of L2 plus & basic L3 switch such as QoS, security, spanning tree, cable length measurement, and SNMP v1/v2c/v3, a dedicated web graphic user interface of IP surveillance is easy to configure and manage ONVIF cameras. It automatically generates camera topology maps, cable diagnostic, and PoE management.
- Managed
- Kyllä
General
- Form factor
- Wall
- Switching capacity
- 16 Gbit/s
- Primary Port Speed
- 1 Gbit/s
- Primary Ports
- 8 x
- SFP Ports
- 2 x
Features
- PoE
- Kyllä
- PoE Effect/Port
- 90 W Max
- PoE Budget
- 240 W
Mitat ja Paino
- Width
- 315,4 mm
- Depth
- 245,8 mm
- Height
- 118 mm
- Weight
- 4,3 kg
Enviromental
- IP Classification
- IP67
Paketin tiedot
- Paketin mitat
- 440 x 322 x 223 mm
- Paketin paino
- 4,67 kg
