Kramer's BC-DGKat7a23 is a 4-pair S/FTP (braided shield around foiled twisted pair) cable designed as the ideal companion to Kramer's twisted pair digital transmitter-receiver sets to provide optimum range and performance. The cable is optimized for the new 10GBase-T applications as defined in IEEE 802.3an and for PoE+.
Key Features:

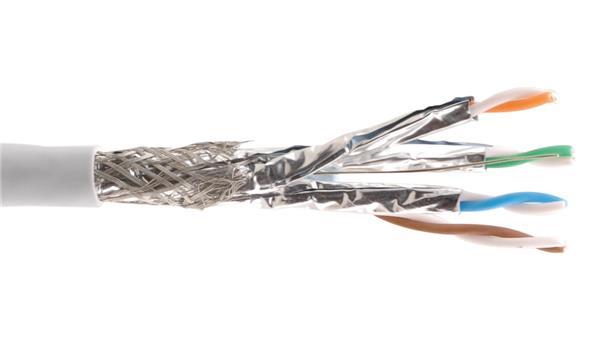

- Quality Construction - 4 individually aluminum−foil shielded twisted pairs (S/FTP), cabled with a drain conductor and overall braid−shielded.
- Optimized for Kramer Hardware - Use with any of Kramer’s wide range of twisted pair digital transmitter−receiver sets. Terminate with shielded RJ−45 connectors.
- Length - Available in pull boxes of 100/305m
Note: Requires A Special RJ-45 Connector for 23 AWG Cable.
General
- Cable type
- Installation cable, Reel
- Category
- Cat 7
- Shielding
- S/FTP
- Type of wire
- Solid core
- Crossover cable
- Ei
- Outdoor use
- Ei
- Low smoke/halogen free
- Ei
- HDBaseT classed
- Kyllä
Mitat ja Paino
- Length
- 305 m
- Outer diameter
- 8,1 mm
Additional information
- Color
- Harmaa
- Warranty
- 7 vuotta
Paketin tiedot
- Paketin mitat
- 270 x 260 x 280 mm
- Paketin paino
- 15,50 kg
