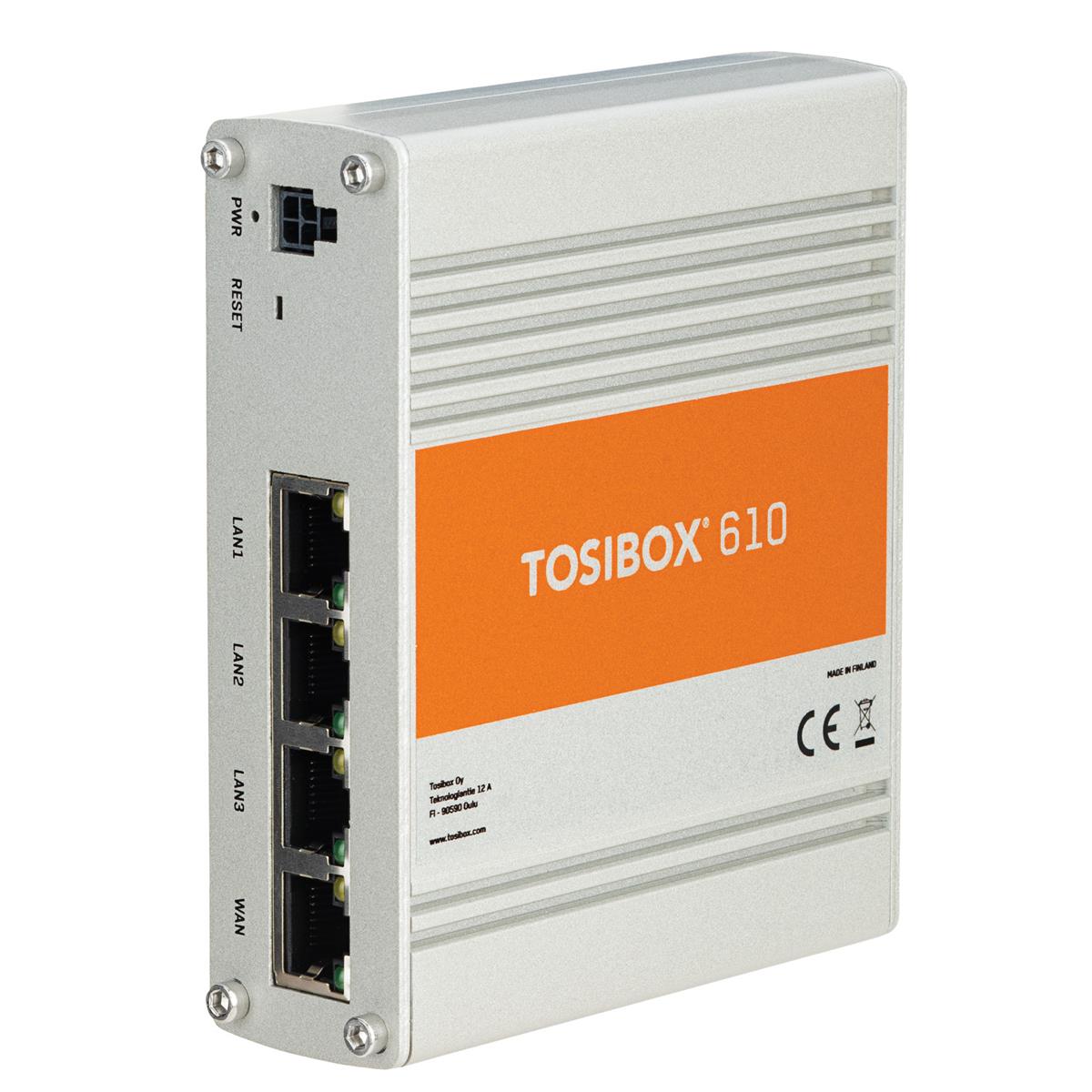

TOSIBOX® 610 is a perfect choice for professional applications when wireless networking is not required. Leading edge cybersecurity technology from TOSIBOX enable diverse application scenarios. The durable aluminium alloy shell and small form factor is ideal for rugged mounting conditions.

Bringing connectivity to those hard to reach locations has never been this easy. The node is compatible with all existing TOSIBOX products.

KEY FEATURES
High VPN throughput, end-to-end encryption between TOSIBOX® devices, users and servers
Four Gigabit Ethernet ports deliver speeds up to 1000 Mbps
Provided DIN rail clip ensures firm installation on any industrial application
TosiOnline™ automatic reconnection of dropped connections
Durable aluminium alloy shell, DIN rail attachment
Extended IP30 rating
Operating temperature -40 °C … +75 °C / -40 °F … +167 °F

CONNECTIONS
4 pin industrial DC power socket 9-50V DC, reverse polarity protection, voltage surge/transient protection
DIN rail mounting slot in the back
Maximum power consumption 6W

PHYSICAL PROPERTIES
115 mm x 32.2 mm x 95.2 mm / 4.52” x 1.26” x 3.74” (W x H x L)
Protection class IP30
Weight 345 g / 0.76 lbs (net weight article)
Storage temperature -40 °C … +75 °C / -40 °F … +167 °F
Operating temperature -40 °C … +75 °C / -40 °F … +167 °F



General

Model
TBL610EU
Form factor
Desktop DIN rail mounting slot in the back
Data transfer speed
70 Mbit/s
Managed
Kyllä
VPN Tunnels
50 pcs.

Ports

WAN
1 pcs.
LAN
3 pcs.

Mitat ja Paino

Width
115 mm
Height
32,2 mm
Depth
95,2 mm
Weight
345 g

Paketin tiedot

Paketin mitat
242 x 157 x 83 mm
Paketin paino
614 g
