Table Mount Modular Multi–Connection Solution — Manually Retracting Lid

  • Rectangular
  • Retractable Lid
  • Modular Design

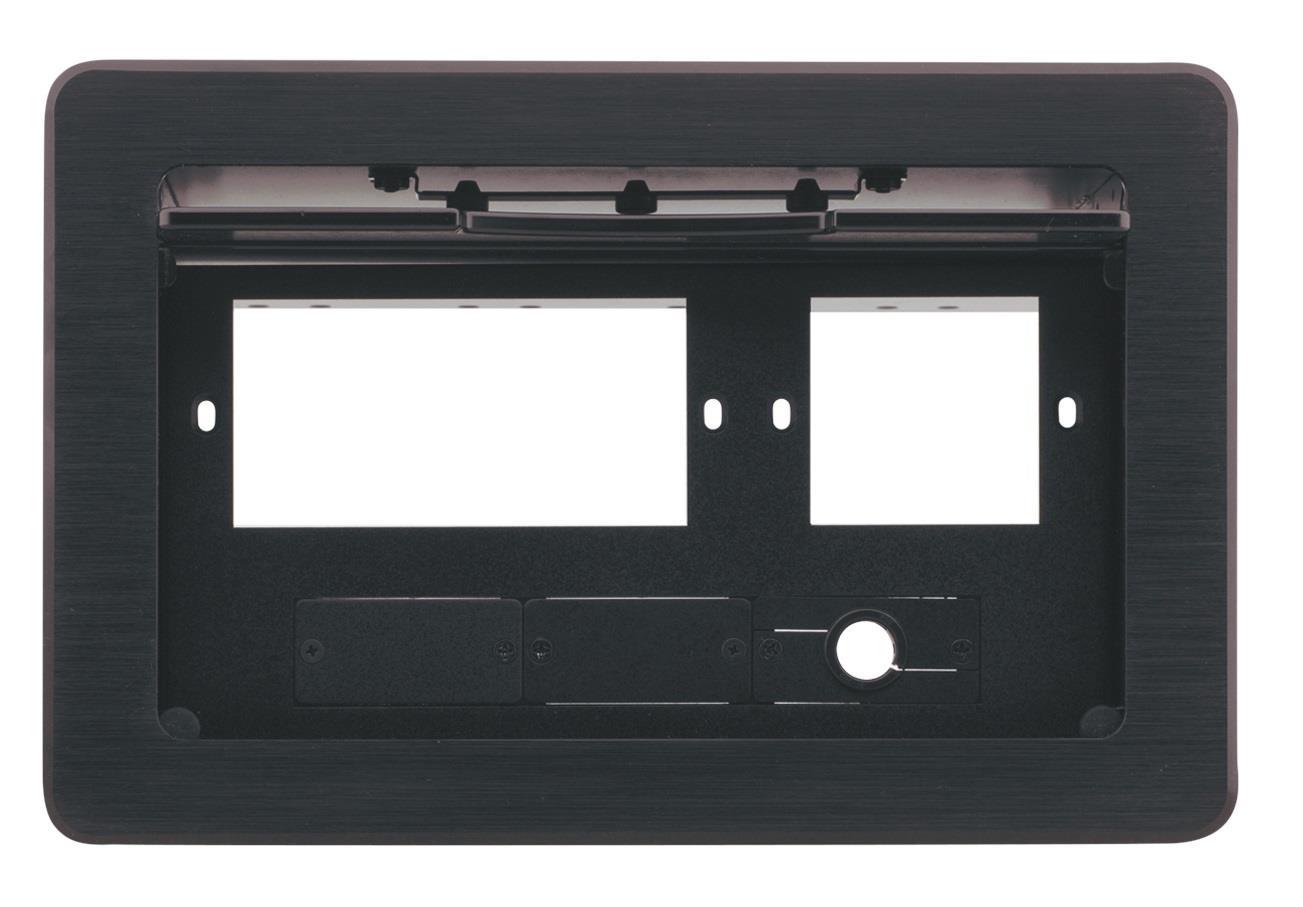

The TBUS−10xl is the enclosure of a new modular system with a manually retracting lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.

NOTE: The TBUS enclosure, inner frame, power socket(s), power cord & inserts are purchased separately.

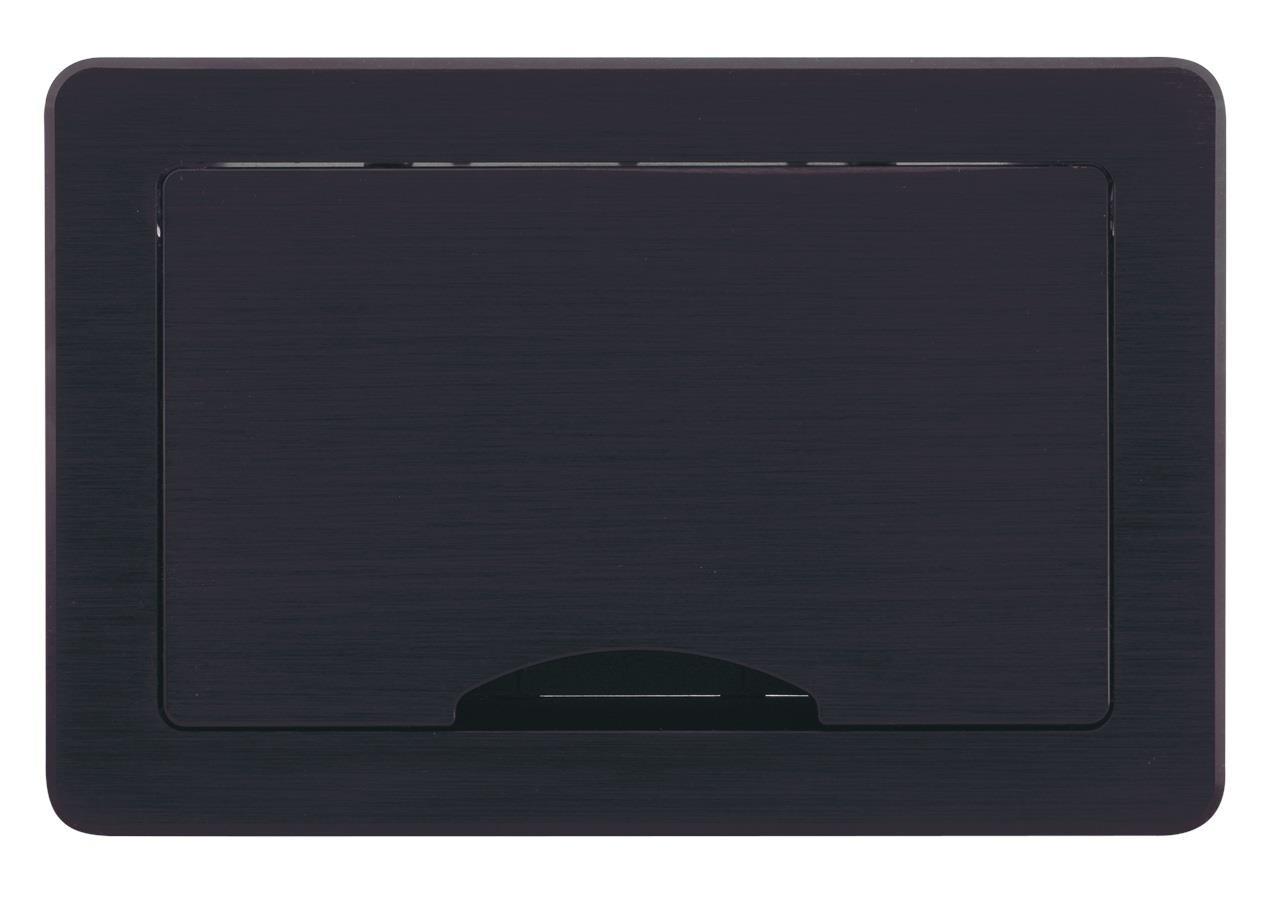

  • Cover — Manually opens & closes.
  • Inner Frames — T10F–22M can accommodate a combination of up to 2 power sockets, 2 inserts, 1 opening for a Kramer MegaTOOL SID–X1N; T10F–33 contains 3 power sockets and 3 inserts.
  • Power Sockets — 11 different "TS" single and 10 dual power socket options are available to accommodate the power requirements worldwide.
  • Power Cord — 8 different "C–AC" single power cords (and 3 "Y" power cords) for each power socket. UL and CE qualified.
  • Connector Depth — Adjustable.
  • Installation Requirement — Table cutout of 245mm x 154mm (9.65" x 6.07").
  • Dimensions — Top plate: 171.6mm x 261mm (6.8" x 10.3") W, D.
  • Weight — TBUS–10xl: 1.35kg (2.8lbs) approx.; table clamps: 0.25kg (0.6lbs) approx.
  • Accessories — TBUS clamps (part of the TBUS enclosure), cut–out template, template screws, self–locking ties.
  • Options — Inner frames, passive wall plates and interfaces, power socket kits, power cord, T–2INSERT kit, T–RC–8IR kit, T–RC–76 kit, T–RC–78 kit, Kramer K–Able Box (furniture–mounted cable extension).


General

Application
Table, lid 1-way
Modular
Kyllä

Connections

HDMI
Ei
DisplayPort
Ei
USB type-C
Ei
USB type-A
Ei
VGA
Ei
DVI
Ei
Audio 3.5mm
Ei
Balanced audio
Ei
Ethernet
Ei
Cable pass-through
Ei
230V Connector
0 pcs. Sold separately

Mitat ja Paino

Length
260 mm
Width
172 mm
Depth
136 mm
Lenght cutout hole
245 mm
Witdh cutout hole
154 mm
Net weight
2 kg

Additional information

Color
Musta
Warranty
7 vuotta

Paketin tiedot

Paketin mitat
385 x 295 x 220 mm
Paketin paino
3,26 kg
