Table Mount Modular Multi–Connection Solution — Manually Retracting Lid

  • Rectangular
  • Retractable Lid
  • Modular Design

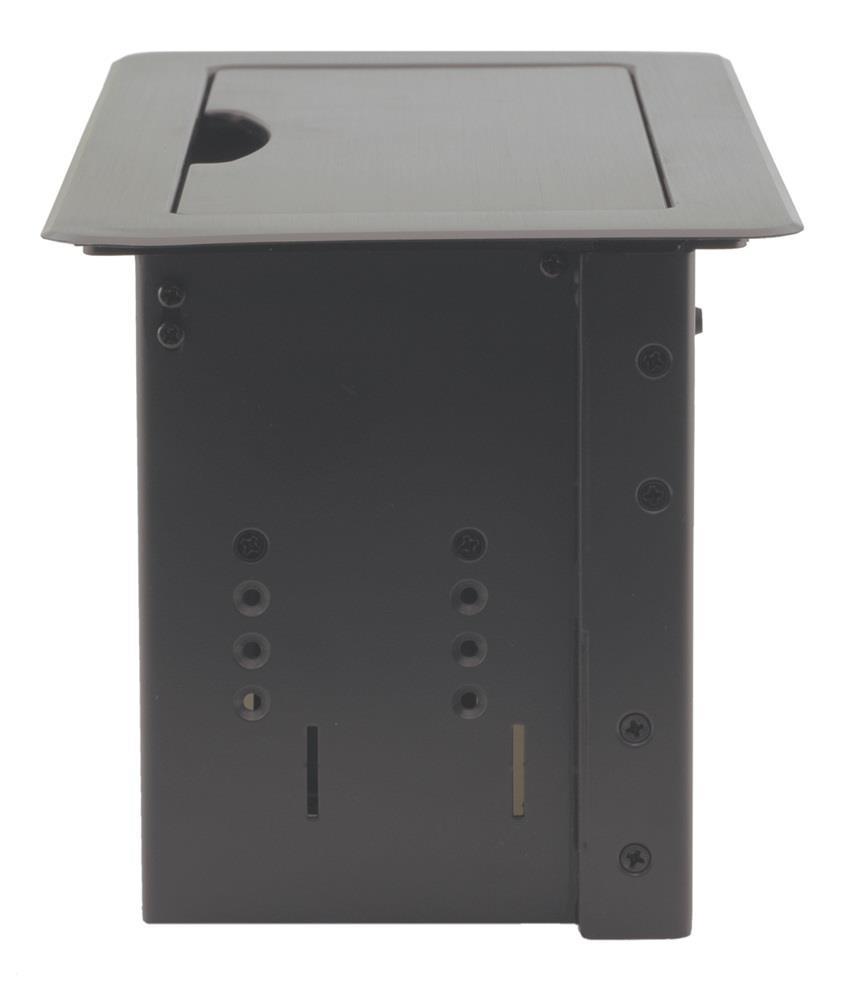

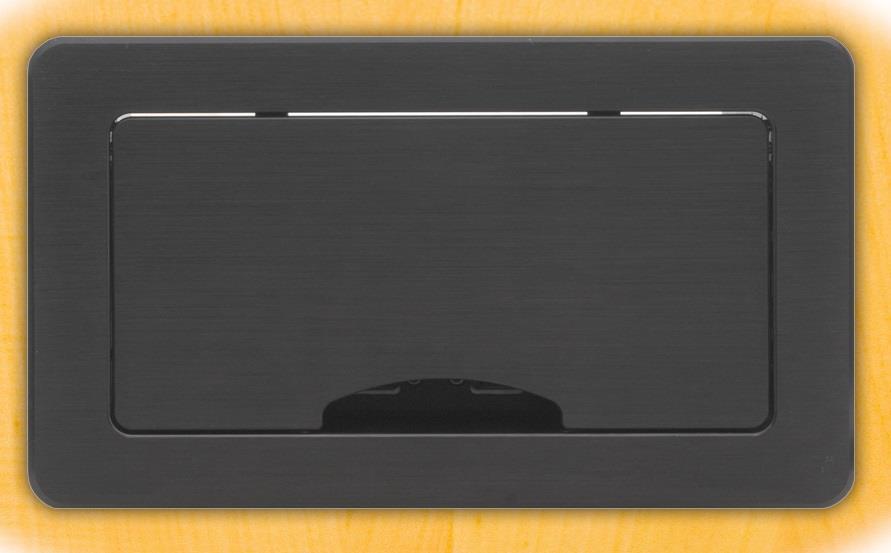

The TBUS−6xl is the enclosure of a new modular system with a tilt−up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.

NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately.

  • Inner Frame — 3 different "T6F" inner frame options are available.
  • Power Sockets — 8 different "TS" single power socket options are available to accommodate the power requirements worldwide.
  • Power Cord — 8 different "C–AC" single power cords (and 3 "Y" power cords) for each power socket.
  • Optional Accessories — TBUS Brackets, K–Able Box Cable Reels, Step–In Modules and Controllers are available.
  • Retractable Lid — Manually slides into unit.
  • Connector Depth — Adjustable.
  • Installation Requirement — Table cutout of 225mm x 123mm (8.87" x 4.85").
  • Dimensions — Top plate: 24.3cm x 14.0cm (9.6" x 5.5") W, D; Enclosure: 22.1cm x 10.2cm x 13.0cm (8.7" x 4.0" x 5.1") W, D, H.
  • Weight — 1.35 kg (2.8 lbs) approx.; table clamps: 0.25 kg (0.6 lbs) approx.


General

Application
Table, lid 1-way
Modular
Kyllä

Connections

HDMI
Ei
DisplayPort
Ei
USB type-C
Ei
USB type-A
Ei
VGA
Ei
DVI
Ei
Audio 3.5mm
Ei
Balanced audio
Ei
Ethernet
Ei
Cable pass-through
Ei
230V Connector
0 pcs. Sold separately

Mitat ja Paino

Length
243 mm
Width
140 mm
Depth
130 mm
Lenght cutout hole
225 mm
Witdh cutout hole
123 mm
Net weight
1,6 kg

Additional information

Color
Musta
Warranty
7 vuotta

Paketin tiedot

Paketin mitat
267 x 218 x 352 mm
Paketin paino
2,63 kg
