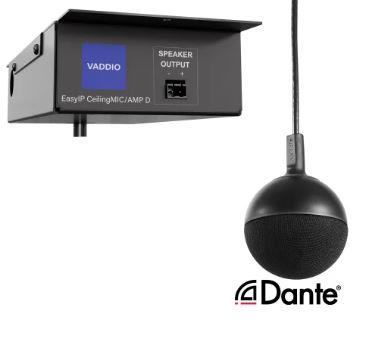

The EasyIP CeilingMIC/AMP D is an in-ceiling audio solution with an overhead microphone and a built-in speaker amplifier, both featuring Dante networked audio.

Key Features:
2-in-1 unit makes Dante networked audio even easier to implement
Three-element microphone array for 360° coverage with built-in echo-cancellation
Brings an analog speaker into your EasyIP or Dante environment
Dante networked audio – manage with the Dante Controller application from Audinate
PoE+ or PoE power; adaptive output – 25 W if powered by an EasyIP Switch or other PoE+ source, 15 W if powered by a PoE source
The EasyIP CeilingMIC/AMP D features a PoE+ network connection, an overhead microphone, and one powered speaker output making it a convenient and cost-effective 2-in-1 solution for incorporating a microphone and a passive speaker with an EasyIP or Dante audio system. Dante makes installing any size project easy by providing digital signal transmission over the network. The EasyIP CeilingMIC/AMP D is part of the expanding family of Vaddio’s EasyIP AV-over-IP ecosystem.

The single output can power one speaker or multiple speakers if wired in series or parallel, and the total load is greater than or equal to 4 ohms.

With full 360-degree pickup coverage, one EasyIP CeilingMIC/AMP D provides excellent coverage for an average size meeting room table. In larger spaces, consider multiple ceiling microphones for full coverage – the number of microphones is only limited by the availability of network switch ports. Centrally manage microphone routing and system configuration with free Dante Controller software.

Each EasyIP CeilingMIC/AMP D unit delivers the performance of three microphone elements built into a single pendant hanging enclosure. Each unidirectional cardioid microphone element is equipped with integrated echo cancellation and Digital Signal Processing (DSP), including equalization, filtering and automatic gain control (AGC). The DSP in the interface box receives its AEC reference from the far end and applies it to individual mic elements, so conference calls are crystal-clear on both ends of the conversation. Configure and fine-tune the DSP easily with Vaddio’s desktop configuration tool.

Its plug-and-play design makes installation as simple as connecting a Cat-5e cable between the network switch PoE port and the EasyIP CeilingMIC D microphone receiver. Power, control, and audio are all incorporated into the single cable.

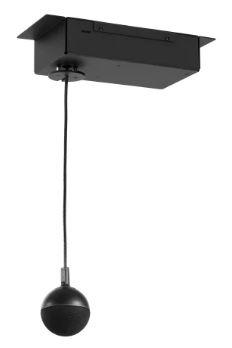

The CeilingMIC pendant includes a 3 ft. (0.9 meters) adjustable drop cable, and with a standard RJ45 jack connection, extend the pendant to a total length of 15 ft. (4.6 meters) from the interface box.

This Package Includes:

EasyIP CeilingMIC/AMP D (black or white)
Cat-6 cable, 3 ft. (0.9 m) (black or white)
2-conductor 5 mm Phoenix style plug for use in making a cable to the speaker
Ceiling mounting hardware
Quick-Start card



General

Microphone application
Ceiling

Audio specifications

Audio pickup range
3,7 m

Connections

Audio outputs
Dante (RJ-45), Euroblock spk. cable
Cable lenght
0,9 m

Energy

Power Supply
PoE+ or PoE 25 W if powered by an EasyIP Switch or other PoE+ source, 15 W if powered by a PoE source

Additional information

Color
Musta
Included Accessories
Cat-6 cable, 3 ft. (0.9 m), 2-conductor 5 mm Phoenix style plug, Ceiling mounting hardware, Quick-Start card
Warranty
3 vuotta
Amount in delivery
Single unit
