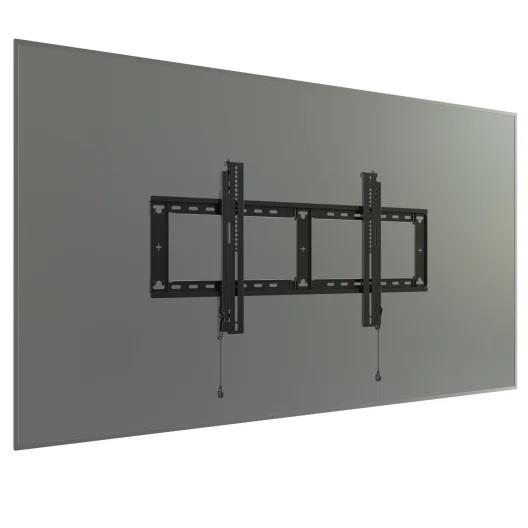

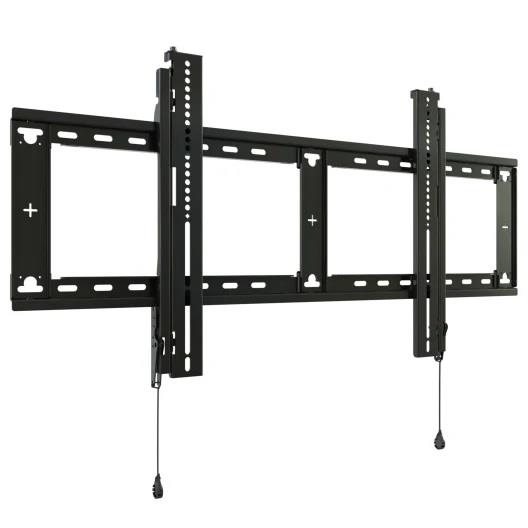

The Fit series RLF3 is a large fixed display wall mount for 43” to 86” typical display sizes and supports mounting patterns up to 960 x 450 mm. This next-generation design features 19 mm post-installation leveling, robust wall plate design supporting up to 90.7 kg, 25 mm low-profile depth, and UL and TUV safety standard approvals.
- Low profile 25 mm depth facilitates ADA compliance for typical AV design requirements
- Easy to reach 19 mm post-installation leveling screw and 254 mm ball end hex-key included
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 960 x 450 mm
- Re-designed rigid wall plate supports up to 90.7 kg and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
- UL and TUV safety standards compliant
General
- Number of displays
- 1 pcs.
- Application
- Wall
- Color
- Musta
- Display orientation
- Landscape
- Videowall
- Ei
Functions
- Height adjustable
- Kyllä 19,1 mm
- Side adjustment
- Kyllä
- Depth adjustment
- Ei
- Tiltable
- Ei
- Swing/Pan
- Ei
- Roll/Pivot
- Ei
- Motorized
- Ei
- Lockable
- Kyllä With Padlock (Optional)
Mitat ja Paino
- VESA mount interface (mm)
- 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400, 500x100, 500x200, 500x300, 500x400, 600x100, 600x200, 600x300, 600x400, 700x100, 700x200, 700x300, 700x400, 800x100, 800x200, 800x300, 800x400, 900x100, 900x200, 900x300, 900x400
- Weight capacity (per screen)
- 90,7 kg
Additional information
- Warranty
- 10 vuotta
Paketin tiedot
- Paketin mitat
- 50 x 1 000 x 600 mm
- Paketin paino
- 5,95 kg
