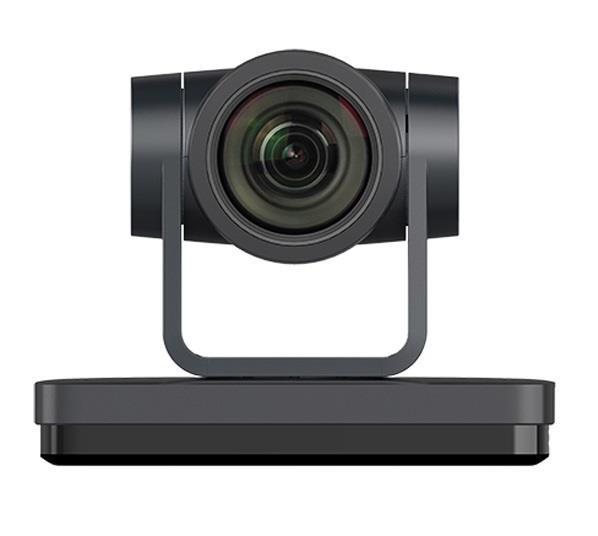

Large Conference Room Solution
The DVY23 is a premium pan/tilt/zoom camera that offers ultra-clear video quality with 20x optical zoom and is ideal for large conferences held in large spaces. The 20x zoom is double the industry standard.
Key Features:
- Ultra-detailed 20x optical zoom
- Motorized Pan: ±170° | Tilt: -30° to +90°
- Video outputs: USB 3.0, HDMI, 1GbE with PoE, 3G-SDI
- USB3.0 Dual Stream (Master / slave)
- IP Streaming: RTSP and RTMP
- Control: VISCA RS232, RS422, RS485, LAN, and remote control
- Wall / Ceiling mount (Optional)
DVY23 offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution and fantastic color rendition. It supports H.265/H.264 encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions.
General
- Camera type
- PTZ camera
- Color
- Musta
Image specification
- Max Resolution (Out)
- 1920x1080 HDMI/SDI Up to 1080p 30/50/60, USB 3.0 up to 1080p/720p 30, IP Stream up to 1080p 30
- Optical zoom
- 20 x
- Digital zoom
- 10 x
- Field of view (horizontal)
- 55 °
- Signal-to-noise ratio
- 50 dB
- Min. illumination
- 0,5 Lux (F1.8, AGC ON)
- Min. working distance
- 50 mm (Wide end), 100mm (Tele end)
Functions
- Programmable presets
- Kyllä 255 (10 max via Remote)
- Ceiling installation/Flip image
- Kyllä Up/Down (Auto flip image for installation upside down)
- Pan movement +/-
- 170 °
- Tilt movement up
- 90 °
- Tilt movement down
- 30 °
- Auto framing/tracking
- Ei
Audio specification
- Built-in microphone
- Ei
- External microphone
- Ei
- Built-in speaker
- Ei
- External speaker
- Ei

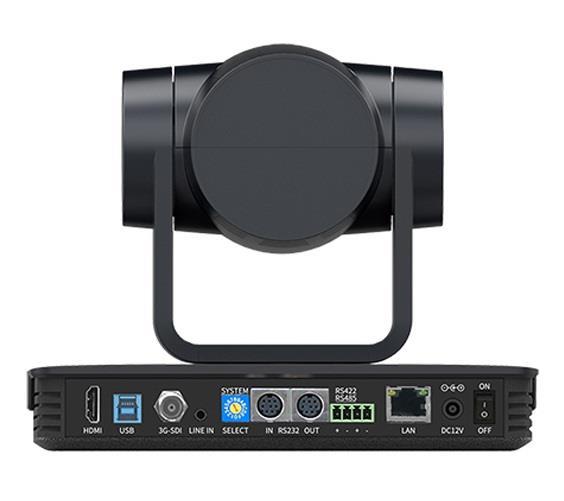

Connections
- Video out
- 3G-SDI, HDMI
- Video out
- IP stream (RJ-45) RTSP, RTMP with H.265, H.264 compression, Dual stream output
- Video out
- USB-B 3.0
- USB standard
- 3.0
- Audio inputs
- 3,5mm tele 48khz sampling freq, AAC audio coding, (output via HDMI/IP-stream only)
- Audio outputs
- HDMI, IP (RJ-45)
Energy
- Power Supply
- PoE or 12V DC 1,5A Max 18W (PoS included)
Mitat ja Paino
- Width
- 178 mm
- Depth
- 116 mm
- Height
- 151 mm
- Net weight
- 1,38 kg
Additional information
- Included Accessories
- 12V/1.5A Power supply, RS232 control cable, USB3.0 cable, Remote Control
- Warranty
- 2 vuotta
Paketin tiedot
- Paketin mitat
- 360 x 260 x 200 mm
- Paketin paino
- 2,70 kg
