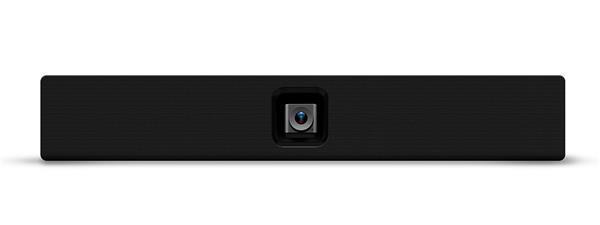

NEC Collaboration Soundbar: The universal conferencing solution for smaller meeting- and huddle rooms
Meeting rooms are evolving into multi-usage spaces. This collaboration solution is designed to fit your meeting scenario, whilst perfectly fulfilling your needs for a powerful and scalable workspace.

The NEC Collaboration Soundbar is the perfect solution for small meeting rooms and huddle spaces. Widen the objectives of your meeting and enhance your display with audio and video capability to be ready for conferencing and collaboration.

To lift up productivity and employee motivation, NEC provides corporate communication solutions for a seamless usability. From small meeting rooms up to multi-usage spaces equipped with NECs InfinityBoard, a steady look and feel is key to succeed in your business.

Key Features:

  • Facilitate productive communication – all components necessary for efficient video conferencing are included: camera, microphone and speaker
  • Flexible configuration to fit your need – hardware set-up as of your requirements to meet your individual meeting room demand
  • Designed to just work – without driver installation, this is a real ready to go plug and play solution

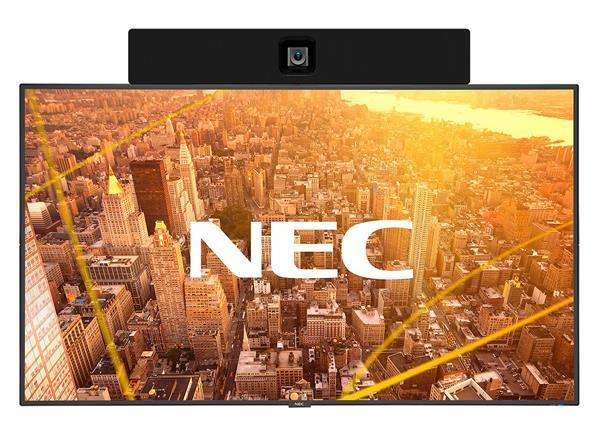

  • Universal mounting approach – maximum installation flexibility with different brackets available: included wall mount or an optional VESA mount
  • A commitment to quality – 3 years warranty and 24/7 ready operation to meet long-term demands ensuring peace of mind

Connections:
Camera - USB (3.0) to USB port 2.0 of the external device
Microphone - USB (2.0) to USB port 2.0 of the external device



General

Camera type
Video soundbar
Color
Musta

Image specification

Max Resolution (Out)
1920x1080 p
Framerate
30 FPS
Optical zoom
0 x
Digital zoom
4 x
Field of view (horizontal)
120 °

Functions

Programmable presets
Ei
Ceiling installation/Flip image
Kyllä
Auto framing/tracking
Kyllä Advanced group framing

Audio specification

Built-in microphone
Kyllä 2x Beamforming microphones
External microphone
Ei
Built-in speaker
Kyllä Active 2x20W, 70 Hz to 15 kHz, Max SPL 82.1 dB (2.83 V)
External speaker
Ei

Connections

Video out
USB-C
USB standard
3.0
Audio inputs
2,5mm tele, 3,5mm tele

Energy

Power Supply
Camera; USB powered, Amplifier 24V DC (typ.), 2A Ext. Power supply

Mitat ja Paino

Width
750 mm
Depth
86 mm
Height
120 mm
Net weight
4,1 kg

Additional information

Included Accessories
Soundbar, Huddly IQ camera, Wallmount, 4x M3 Screws + washers
Warranty
3 vuotta

Paketin tiedot

Paketin mitat
1 110 x 160 x 155 mm
Paketin paino
7,40 kg
