Windows OPS for MeetingBoard series
Modular Compute Solution for Interactive Whiteboards Collaboration

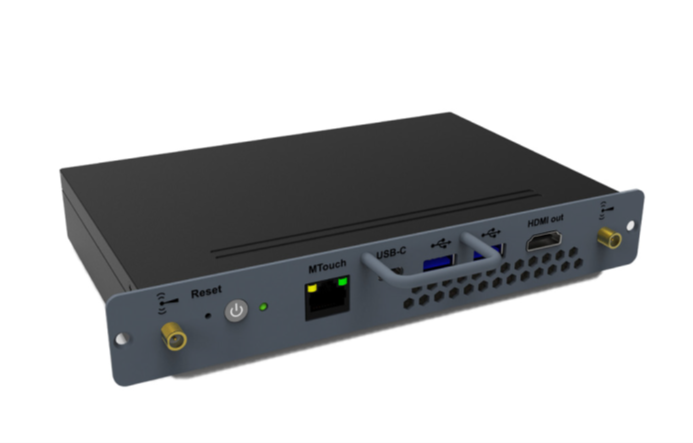

Yealink MCore-OPS is a modular compute solution specially designed for interactive whiteboards. Intel's 11th generation Core
i5 processor brings you more powerful computing performance and more efficient graphics processing power, allowing you to
install and run more applications at the same time without lag; MCore-OPS supports TPM 2.0 to protect your data security;
in addition, MCore-OPS supports CEC to automatically wake up the screen. No more external equipment is required, and the
sophisticated structural design will greatly facilitate your installation and deployment.
• INTEL Core™ 11:t gen i5 quad-core CPU
• 8GB Memory, 128GB SSD Storage
• Windows 10 IoT Enterpirse OS, license included
• Including 2-year hardware warranty
• Support TPM2.0
• Support CEC
General
- Operating System
- Windows 10 IoT Enterpirse
Suoritin
- CPU Model
- Core i5 11th generation (Intel i5-1135G7)
- Number of cores
- 4 pcs.
Memory
- Memory
- 8 GB 2 x 4GB
Graphics
- GPU Model
- Intel Iris® X Graphics 1.30 GHz
- GPU Core Clock
- 1,3 GHz
Storage
- Storage type
- SSD
- Storage size
- 128 GB
Connections
- HDMI
- Kyllä 1x out
- DisplayPort
- Ei
- USB type-A
- Kyllä 2x USB-A 3.0
- USB type-C
- Kyllä 1x USB 3.0
Communication
- Ethernet
- Kyllä 1x MTouch port (RJ-45)
- WiFi
- Kyllä Wi-Fi 6 (802.11ax)
- Bluetooth
- Kyllä 5.2：AX201
Mitat ja Paino
- Width
- 180 mm
- Depth
- 119 mm
- Height
- 30 mm
- Net weight
- 0,7 kg
Additional Information
- Included Accessories
- MCore-OPS, 2 x antenna, 2 x screw, 1 x screwdriver, 1 x Quick Start Guide
- Warranty
- 2 vuotta
Paketin tiedot
- Paketin mitat
- 272 x 220 x 73 mm
- Paketin paino
- 921 g
