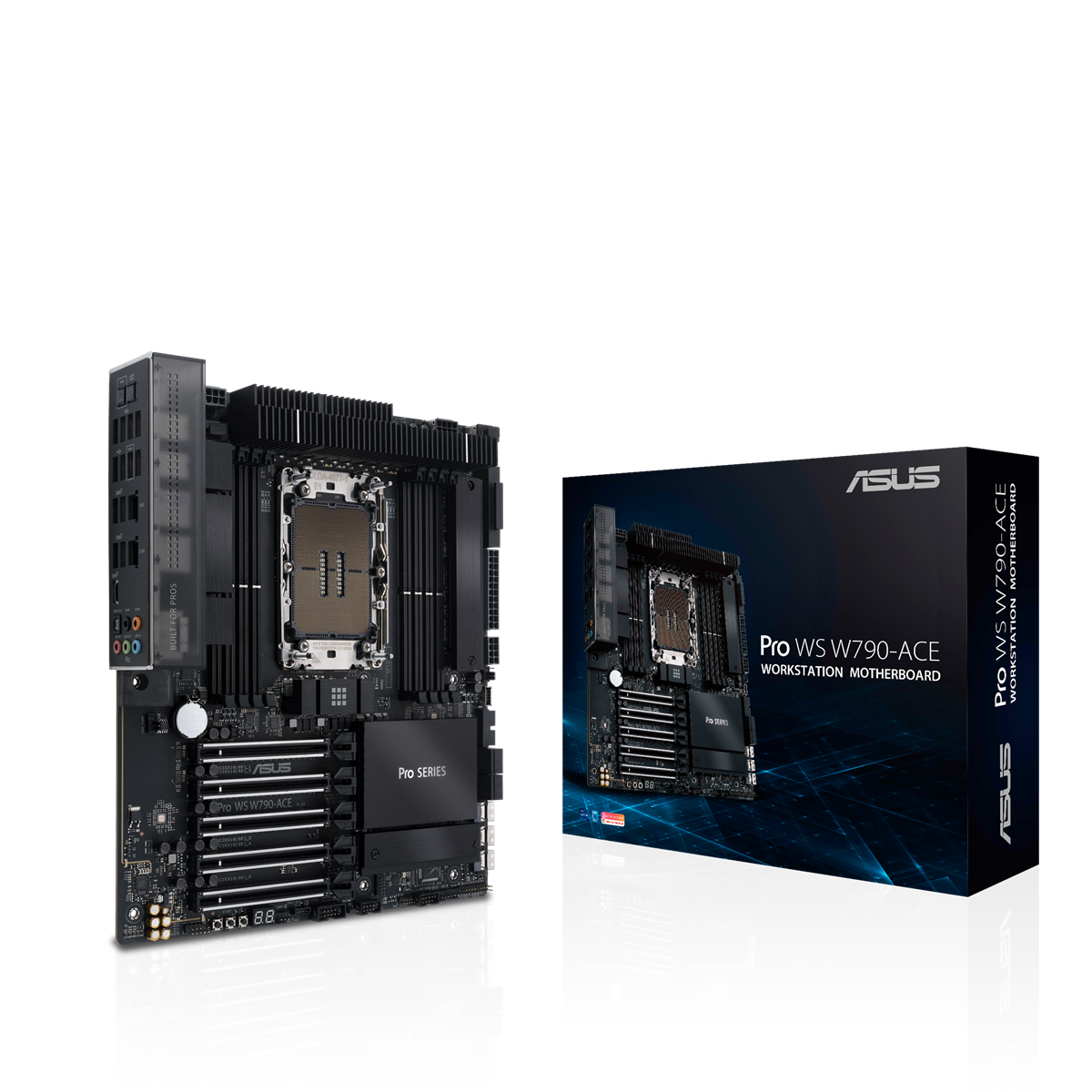

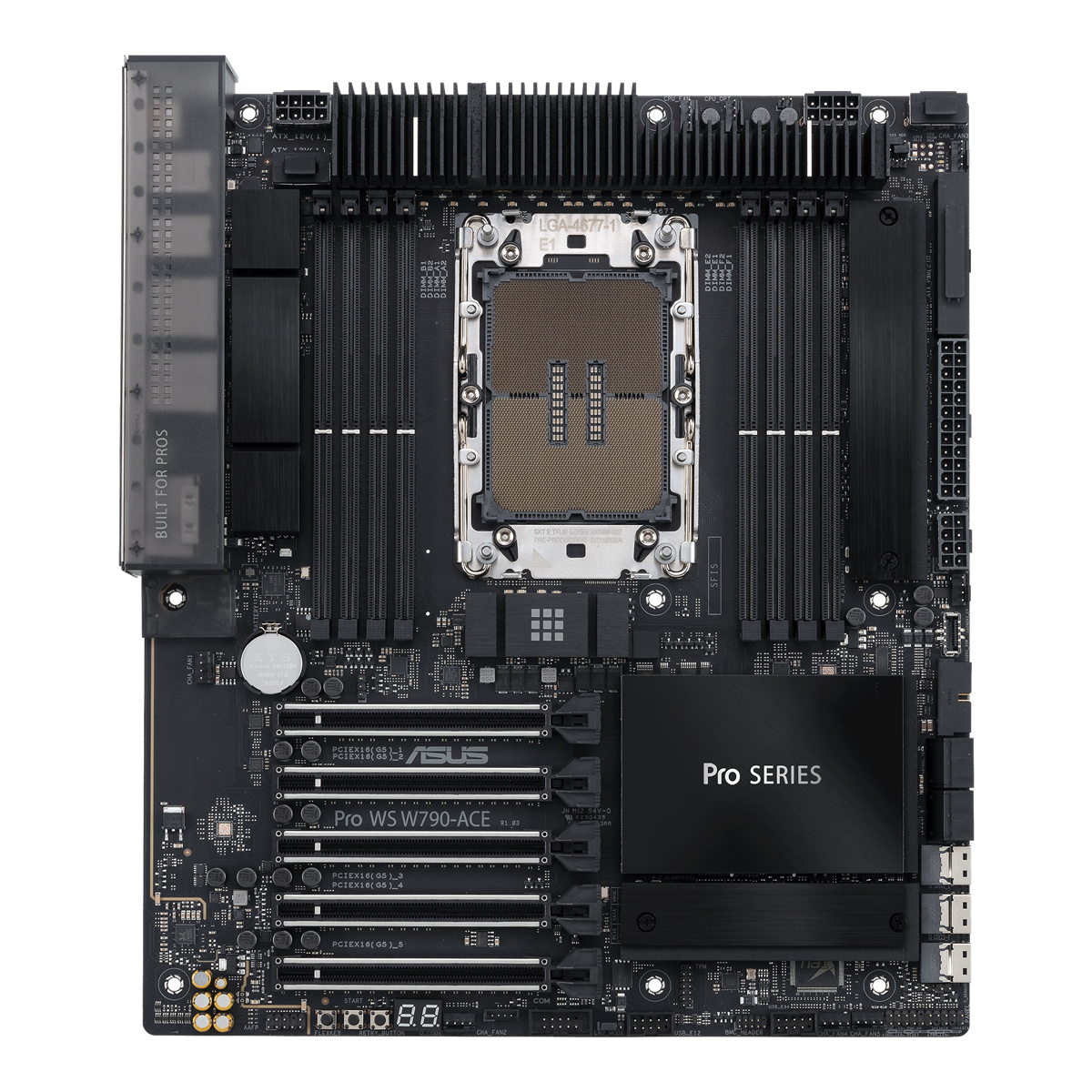

Intel® W790 (LGA 4677) CEB workstation motherboard, PCIe 5.0 x16, M.2, 10G and 2.5G LAN, Server-grade Remote Management, 12+1+1 power stages, front and Rear USB 3.2 Gen 2x2 Type-C®
- Intel® LGA 4677 socket: Ready for Intel Xeon® W-3400 & W-2400 processors
- CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (2DPC)
- Ultrafast connectivity: 5 PCIe 5.0 x16 slots, 10G & 2.5G LAN, 2 M.2, front and rear USB 3.2 Gen 2x2 Type-C® and 3 SlimSAS
- Server-grade IPMI remote management: Hardware and software-level with ASUS IPMI expansion card support, plus a real-time monitoring and management software – ASUS Control Center Express
- Robust power and thermal design: 12+1+1 power stages, 8-pin PCIe power connector, Massive VRM, chipset and M.2 heatsinks and M.2 backplate
- Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility
Performance, Productivity, Proven
The Pro WS W790 series workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W790 series melds no-compromise engineering with incredible aesthetics.
ASUS W790 motherboards go above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.
Multi-GPU support
The Pro WS W790-ACE features five PCIe 5.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modeling, simulation and rendering applications.
General
- CPU-Socket
- Intel 4677
- Chipset
- W790
- Form factor
- CEB
Memory
- Memory Type
- DDR5
- Channel Supported
- Quad Channel
- Memory frequency (base)
- 4 800 MHz
- Memory frequency (OC)
- 6 800 MHz
- Memory slots
- 8 pcs.
- Max Memory Supported
- 2 048 GB
Expansion Slots
- PCIe generation
- PCIe 5.0
- PCIe x16
- 5 pcs.
Storage Devices
- M.2 slots
- 2 pcs.
- M.2 support
- 2242/2260/2280/22110
- M.2 generation
- PCIe 4.0 x4
- M.2 interface
- PCIe
- SATA ports
- 4 pcs.
Communications
- LAN controller
- Intel® & Marvell
- LAN Speed
- 10 Gb/s, 2.5 Gb/s
Internal I/O Connectors
- Fan Connector (4-pin)
- 7 pcs.
Rear Panel Ports
- USB type-A
- Kyllä
- USB type-C
- Kyllä
- AUX out
- Kyllä
- Ethernet
- Kyllä
Paketin tiedot
- Paketin mitat
- 377 x 312 x 119 mm
- Paketin paino
- 3,13 kg
Paketin tiedot kpl
- Paketin mitat
- 350 x 320 x 450 mm
- Paketin paino
- 12,00 kg
