SIMPLE TO SET UP A DEDICATED ROOM

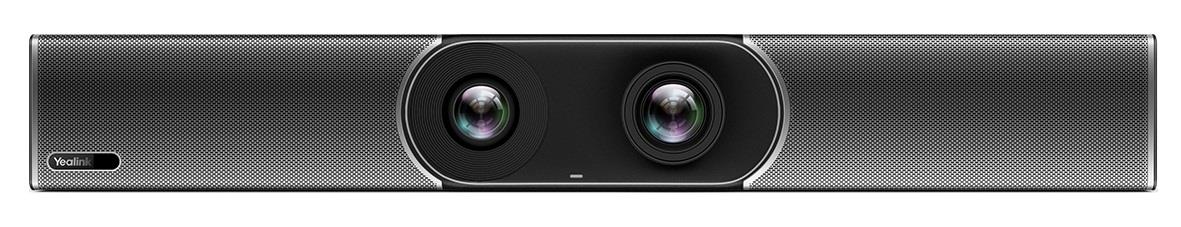

Designed with simplicity, Yealink MeetingBar A30 integrates the camera, microphone and speakers into an all-in-one system. No PC or individual components are required, allowing plug-and-play for a dedicated small meeting room setup within minutes, greatly reducing the time needed for deployment and management. In addition, connecting to a CTP18 touch panel (option) can be realized for better meeting control.

A30 CAMERA ONLY DUAL-CAMERA CAN
MeetingBar A30 dual-camera system is perfect for medium rooms. It features an optical camera with 10x hybrid zoom and an 8-megapixel digital camera with a 120° field of view, delivering a clear visual experience with depth, which is unable to be achieved with a single camera.

  • Auto Framing - recognizes the number and the positions of attendees, framing everyone smoothly in the most appropriate view even in small spaces.
  • Speaker Tracking - frames a real-time close-up on the presenter, bringing a vivid face-to-face meeting experience and ensuring attendees are well-engaged.
  • Picture-in-Picture - tracks and frames the speaker in an individual window, which is separate from the other window, for a panoramic view, enabling users to keep an eye on who's talking even if the speaker is seated at a distance in a medium room.

IMMERSIVE VOICE IN EVERY CORNER
The built-in 8 MEMS microphone arrays and speaker in Yealink MeetingBar, completely cover up to 6-meter medium-sized spaces. As the MeetingBar is equipped with a powerful independent audio processing unit, you can enjoy a worry-free, full-duplex voice experience with superior performance.

AI-BASED VOICE CLEANS UP ALL THE NOISE
Yealink enhanced AI noise cancellation makes the audio experience more brilliant. Leveraging a massive deep-learning sound database to reduce background noises, it is more about intelligent audio analysis than standard filtering of audio frequencies. The distracting keyboard clatter, mouse clicks, footsteps, and other ambient noises are smartly pared back, ensuring that users enjoy crystal-clear audio quality.

One Step Towards Wireless Meeting
The MeetingBar series creates a wireless meeting experience with the WPP30 presentation pod. Once connected, it immediately gets you ready for wireless content sharing and device mode without any configuration steps.

LEADING VIDEO PLATFORMS WITHIN YOUR CHOICE
Yealink MeetingBar supports diverse video platform experiences. No matter which platform you use, start your meeting right now!



Videostandards & protocolls
Video codecs: H.264 High profile, H.264 SVC, H.264

General

Application/Certification
Microsoft Teams Room
Application/Certification
USB BYOD Device mode
Application/Certification
Zoom
Platform/OS
Android Qualcomm Snapdragon 845 chipse with Android 10 OS
Room Size
Medium room 4-8p Up to 12 people

Camera

Camera type
Video soundbar
Resolution
3840x2160 60 Hz, Main Camera
Framerate
30 FPS Main Camera
Optical zoom
3,5 x Main Camera
Digital zoom
3 x Main Camera
Field of view (horizontal)
80 ° Main Camera, 110 degrees Panoramic Camera
Pan movement +/-
25 ° Motorized PTZ (Main Camera)
Tilt movement down
16 ° Motorized PTZ (Main Camera)
Tilt movement up
16 ° Motorized PTZ (Main Camera)
Programmable presets
Ei
Auto framing/tracking
Kyllä Auto Framing/Speaker Tracking & Picture-in-picture mode

Audio specifications

Built-in microphone
Kyllä 8 element MEMS microphone array
External microphone
Kyllä Wireless extension mic Yealink VCM36-W (max 2) or external mic CPW90 (Max 1 pair = 2 units). Wired external mic VCM35 (Max 3)
Audio pickup range
6 m
Built-in speaker
Kyllä 2x 5W High-Fidelity speaker
External speaker
Ei

Communication

Ethernet
Kyllä 10/100/1000 M Ethernet
Wi-Fi
Built-in Dual-band 2,4 / 5 GHz
Content sharing
Yes, via optional VCH51 Sharing & BYOD Box (HDMI or USB-C interface)
Langaton kuvien jakaminen
Yes, via optional WPP30 wireless share pod/dongle (Max 4),
langallinen BYOD
Yes, via optional VCH51 Sharing & BYOD Box (USB-C or HDMI & USB-A)
Langaton BYOD
Yes, via optional WPP30 wireless share pod/dongle (Max 4)

Connections

Video out
HDMI x2 For Dual Display Support, with CEC support
Audio inputs
3,5mm tele
Audio inputs
Mic port (RJ-45) 1x Yealink VCH port for external/expansion mics & VCH51 Sharing Box
Audio outputs
3,5mm tele For external audio system/speakers
USB connection
USB-A x2
USB standard
2.0

Energy

Power Supply
External Power Supply. Power Adapter: AC 100~240V input, DC 48V/0.7A Output
Consumption Stand-by
13 W
Consumption Max
16 W

Mitat ja Paino

Width
700 mm
Depth
98 mm
Height
121 mm

Additional information

Color
Harmaa
Included Accessories
A30 Collaboration bar, power adapter, wallmount bracket, 3m Ethernet cable, 2x 1,8m HDMI cables, VCR11 Remote Control
Warranty
3 vuotta

Paketin tiedot

Paketin mitat
700 x 308 x 245 mm
Paketin paino
6,03 kg

Tarvikkeet

Artikkelinumero 2382234
