ETV86 Extended Touchscreen for MeetingBoard86

All-in-One Deep Integration Display for All Room Types
ETV is Yealink's new extended touch display, which can form a dual-screen display solution
with Yealink MeetingBoard, bringing users the traditional dual-screen content display experience
under video conferences. ETV also supports infrared touch, allowing users to write and
create on the dual screens simultaneously.

  • 4K, 60Hz Ultra-HD Screen
  • Zero-Gap Bonding Screen
  • 40-Millisceonds Writing Latency
  • 20 Touch Points

All-in-One Design for Simple Installation
The ETV is available in 65" and 86" sizes, keeping the same design, size and installation method as the Yealink MeetingBoard, ensuring a consistent overall style after dual-screen installation and deployment. You can connect ETV to Yealink Device Management Platform through the MeetingBoard for unified device management, making the deployment and management more effortless.

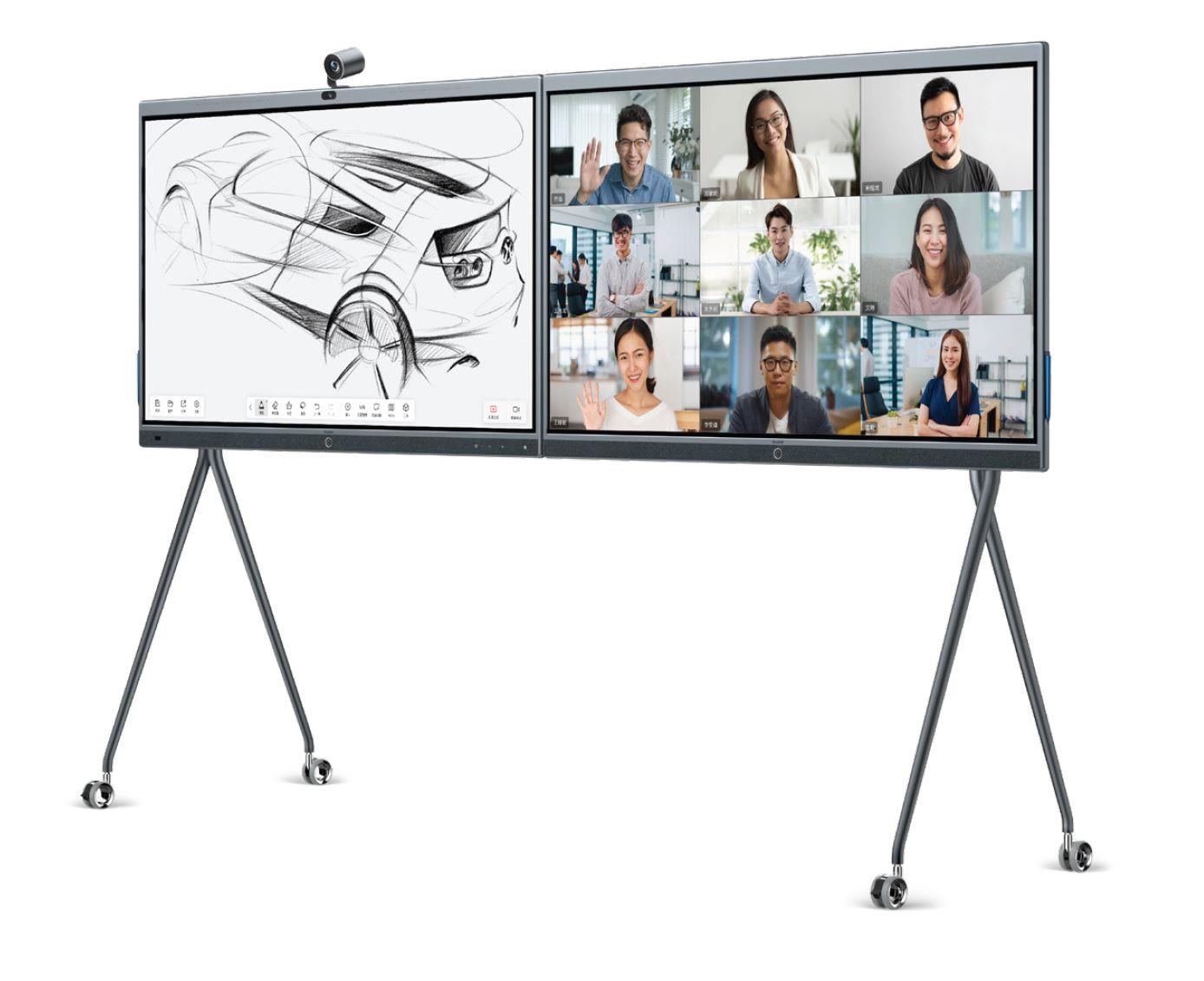

Dual-Screen Display
ETV can extend or duplicate the screen of Yealink MeetingBoard, allowing a "one screen portrait + one screen content sharing" or "one screen portrait + one screen whiteboard" display layout, meeting the needs of medium to large meeting rooms and above, making it more flexible and efficient.

Dual-Screen Touch
ETV screen adopts zero-gap bonding technology and a builtin high-precision infrared touch, which can be used with Yealink MeetingBoard to realize dual-screen touch. It supports pen tip/ pen top/finger/hand recognition and ultra-low latency of 40 ms, enabling multiple people to write and create simultaneously on dual screens, bringing higher communication efficiency for meetings, discussions and brainstorming.



General

Application
Corporate/meetingroom

Näyttö

Image diagonal
86 "
Resolution
3840x2160
Brightness
350 Nits
Portrait
Ei

Functions

TV Tuner
Ei
Built-in speaker
Kyllä 30W 6-unit stereo speakers, 95 dB SPL @ 1 W, 0.5 m
Built-in microphone
Ei

Touchscreen

Touch techology
IR Touch
Number of touchpoints
20 pcs.

Connections

Video in
HDMI x1
Audio inputs
RCA x2 (L/R Stereo)
USB-C
Ei

Communication

Ethernet
Ei
Wi-Fi
No
Wireless image sharing
Ei

Energy

Power Supply
100-240V/50 Hz/60 Hz
Consumption Max
325,75 W

Mitat ja Paino

VESA mount interface (mm)
800x600
Width
1 967 mm
Height
1 205 mm
Depth
96 mm
Net weight
85,3 kg

Additional information

Included Accessories
ETV Extended Touch Display, Stylus Pens x 2, Wall Mounted Bracket, Optional Component: Single Screen Floor Stand, Dual Screen Floor Stand (65-inch only)
Warranty
2 vuotta

Paketin tiedot

Paketin mitat
1 710 x 300 x 1 200 mm
Paketin paino
99,06 kg
