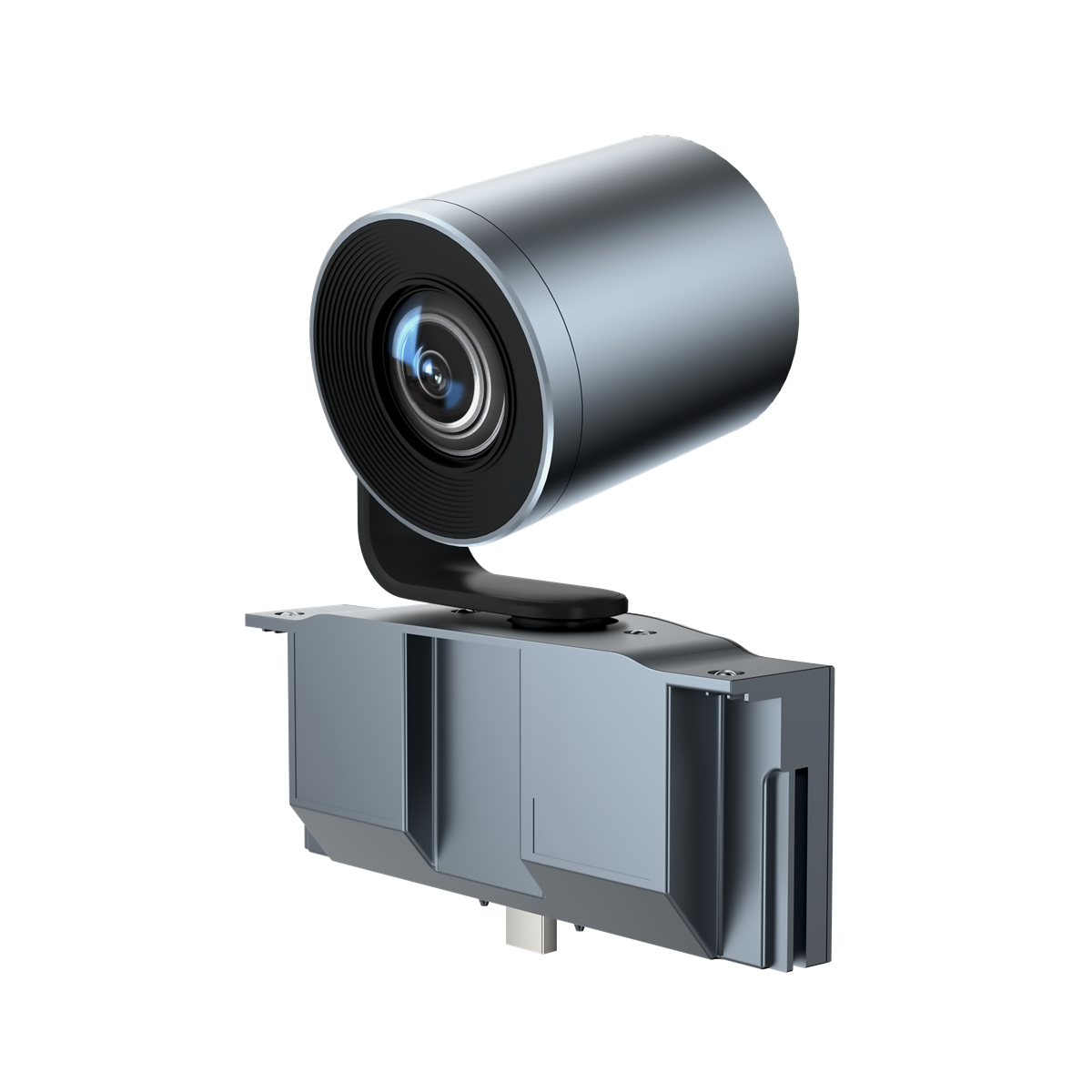

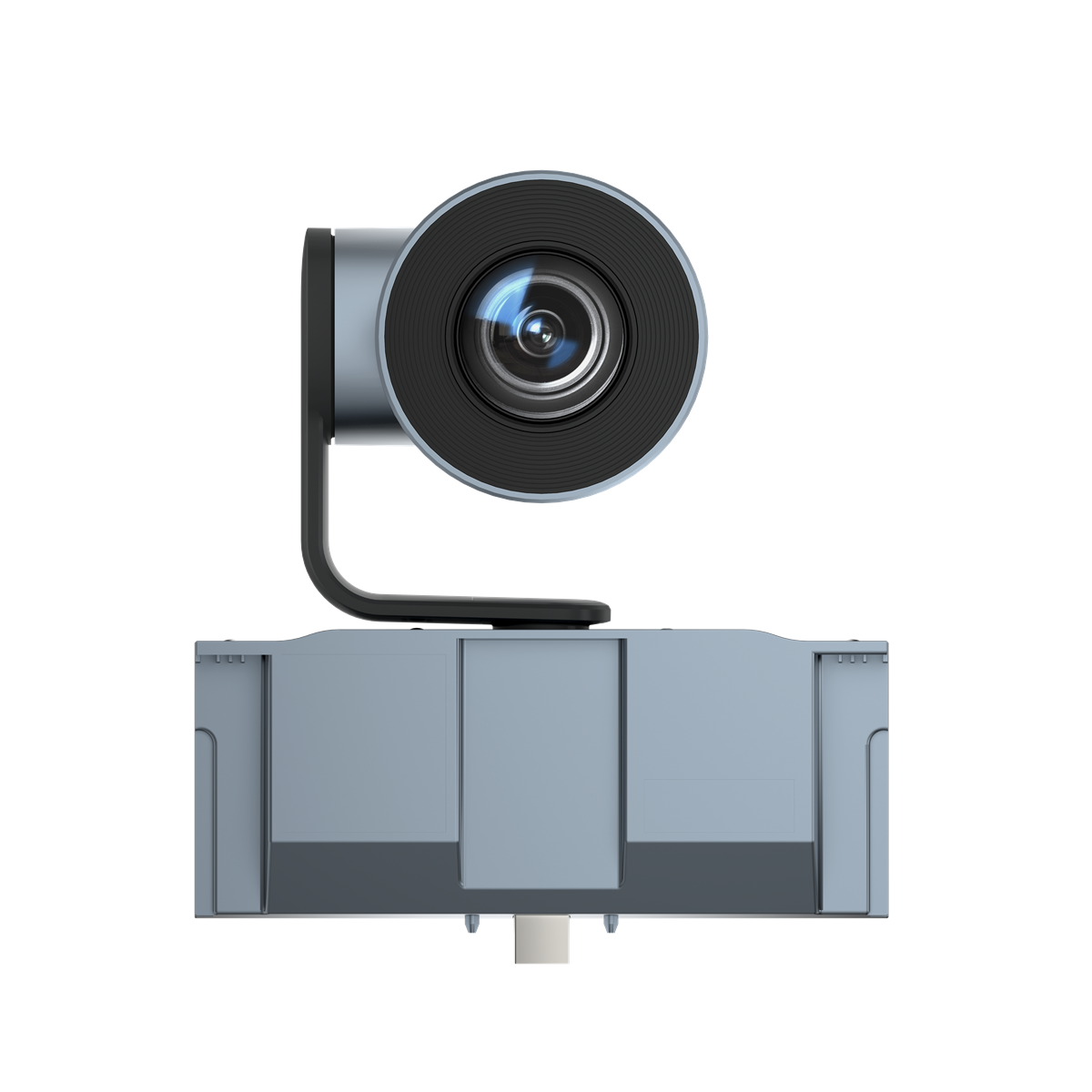

MeetingBoard 6x/12x Optical Zoom Camera
The MB-Camera-6X/12X is an optical zoom camera designed for the Yealink MeetingBoard in medium and large rooms. With a customized slot port design, it can be directly installed on the top of the Meetingboard, bringing a simpler deployment experience. MB-Camera-6X/12X and the built-in wide-angle lens of MeetingBoard form a smart dual 4K camera solution equipped with Yealink's self-developed intelligent AI voice positioning and image algorithms. Through the built-in wide-angle lens, it analyzes the location and behavior of participants in real time. Then it invokes the 6X/12X optical lens to quickly and accurately track and locate participants, realizing AI intelligent tracking experiences such as auto framing and speaker tracking features, presenting you with the best viewpoint picture at all times and bringing you a high-definition, intelligent and smooth video experience.

• 1x 12X Optical PTZ Camera Module
• Including 2-year hardware warranty

Supplies can begin at the end of October



General

Camera type
PTZ camera
Color
Hopea

Image specification

Max Resolution (Out)
3840x2160 8MP
Framerate
30 FPS
Optical zoom
12 x

Functions

Programmable presets
Kyllä
Ceiling installation/Flip image
Ei
Pan movement +/-
100 °
Tilt movement up
0 °
Tilt movement down
90 °
Auto framing/tracking
Kyllä Auto Framing with speaker tracking, PiP Mode

Audio specification

Built-in microphone
Ei
External microphone
Ei
Built-in speaker
Ei
External speaker
Ei

Energy

Power Supply
Via display

Mitat ja Paino

Width
114 mm
Height
147 mm

Additional information

Included Accessories
1x 12X Optical PTZ Camera Module
Warranty
2 vuotta

Paketin tiedot

Paketin mitat
276 x 192 x 131 mm
Paketin paino
1,29 kg
