Conquer USB length limitations, and put your USB devices where you want them with our USB superbooster. This pocket-sized device extends the distance of a USB device to a host computer up to 150 feet so you can place your USB camera, printer, web cam, keyboard/mouse extension, or any other USB device exactly where you want it! This booster is powerful yet simple, with no drivers to install or special software required so it's compatible with any computer that supports USB.

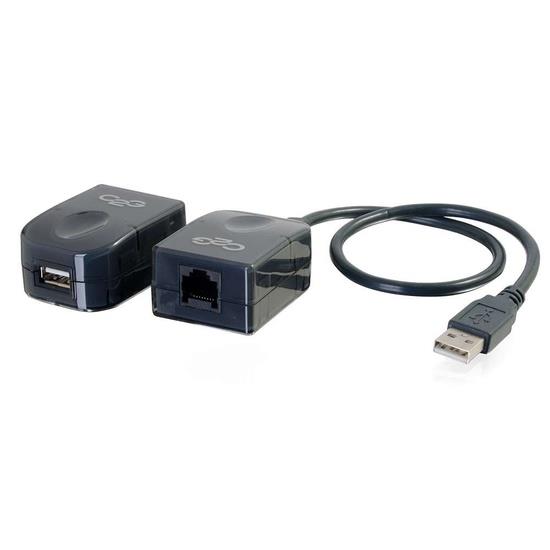

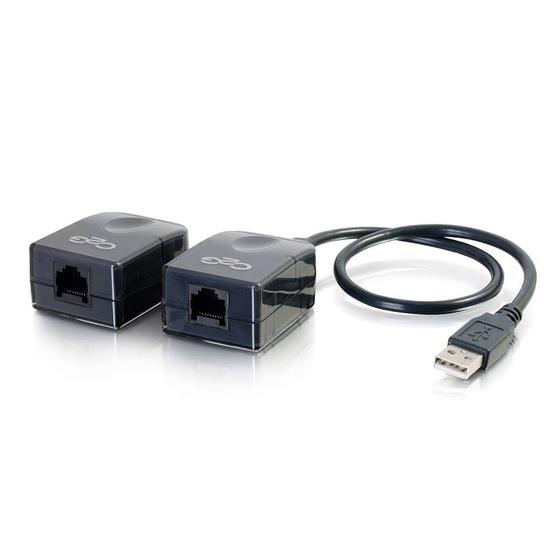

This plug-and-play device consists of a base unit and a remote unit connected together by a standard Cat5, Cat5E, or Cat6 network cable (not included). Simply connect your cables to your device; then connect to your computer and USB peripheral and you're up and running. Bus-powered, it requires no external power source. Instead, the superbooster has internal DC power conditioning circuits to maintain the proper voltage to the remote device so no external power is required for either the base or remote units. Compliant with USB Specification 1.1.

Please Note: The power demands of devices such as external drives and USB hubs may require the use of external power for proper operation. Please consult with your device manual or manufacturer for details. During installation, do not connect the transmitter to the PC until all other connections in the system have been made. The other connections in this system would include the Cat5e/6 cable between the transmitter and receiver, a USB hub placed at the receiver or any other USB device that would be connected to the receiver. Connecting the transmitter to the computer without first making other connections may result in damage to the Superbooster.

Note: If the USB signal is being extended to support an interactive whiteboard, then we recommend using our product

Features and Benefits

  • Extends a USB 1.1 signal up to 150ft over category cables
  • Allows for flexible positioning of USB peripherals
  • Small form factor reduces installation clutter
  • Kit includes both the transmitter and receiver units


General

Extender type
Transmitter & reciever kit
Technology
TP/CAT Cat5e/6 cable
Range (max)
45 m

Features

USB standard
1.1
Data transfer speed
12 Mbit/s
USB/Data connection from
USB-A
USB/Data connection to
USB-A

Energy

Power Supply
USB powered

Additional information

Warranty
5 vuotta

Paketin tiedot

Paketin mitat
155 x 131 x 55 mm
Paketin paino
154 g
