Wireless Lavalier Microphone System, A-band: 522 MHz — 554 MHz

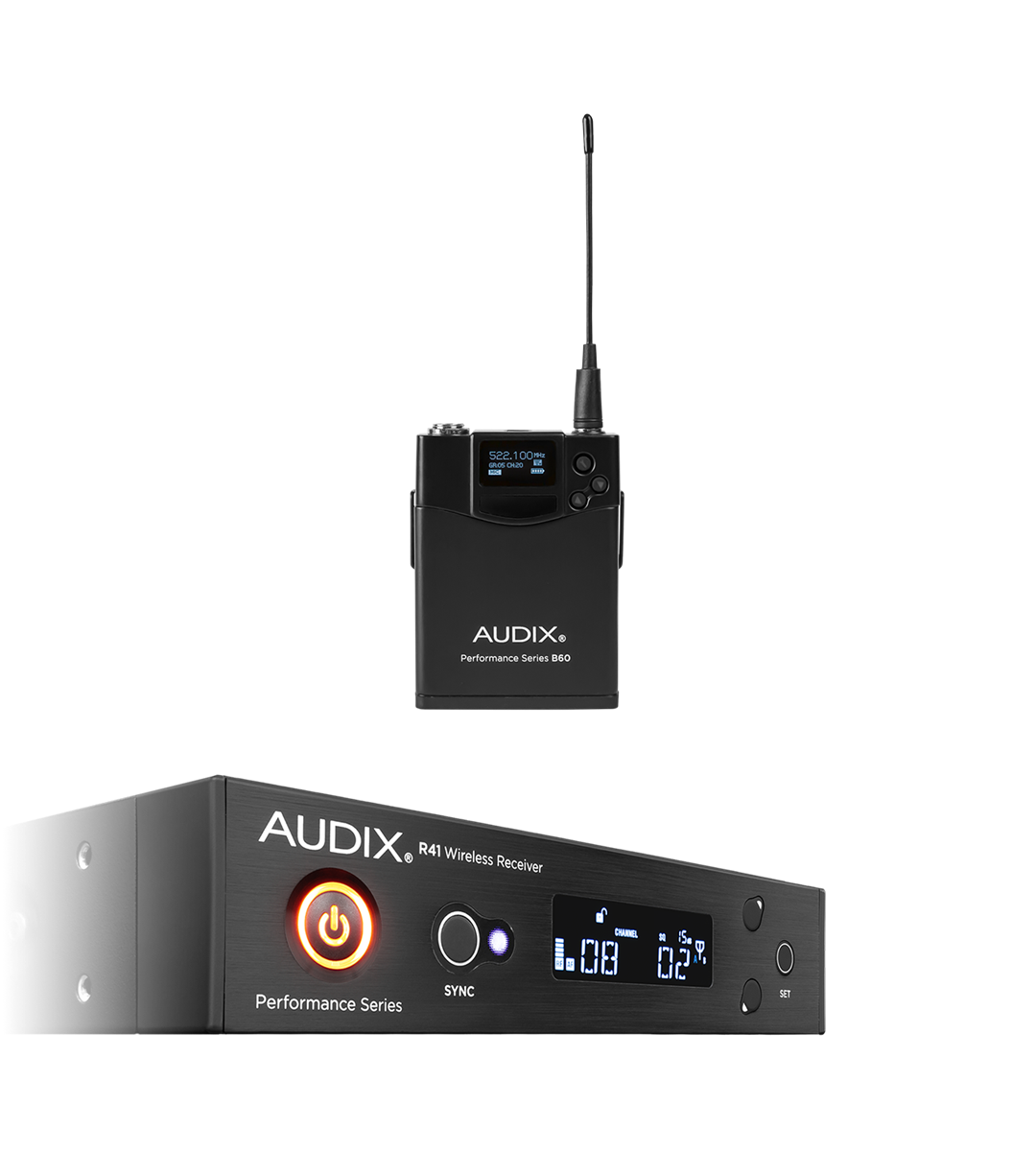

WIRELESS MICROPHONE SYSTEM – R41 DIVERSITY RECEIVER WITH B60 BODYPACK TRANSMITTER

A professional diversity wireless system featuring the B60 bodypack transmitter.

This bodypack may be used with any lavalier, head-worn, or instrument microphone in the Audix line, as well as guitar and bass. Optional accessories include a single space rack mount kit with BNC cables for front mounting antennas, rackmount kit for mounting two systems in one rack space, active directional antennas, and antenna distribution system for up to four systems (4 channels).

AVAILABLE FREQUENCY BANDS
A = 522 MHz – 554 MHz
B = 554 MHz – 586 MHz

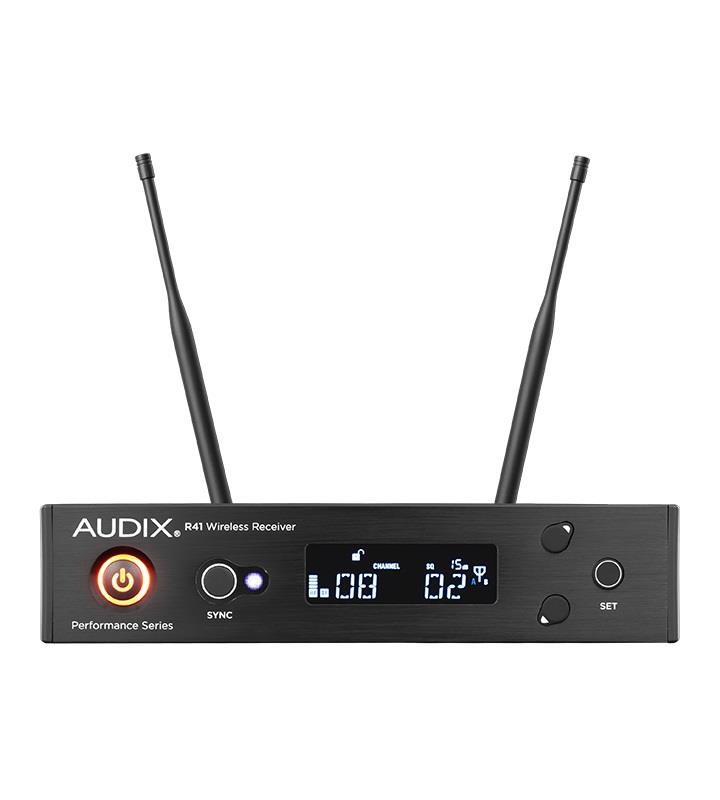

R41 Diversity Receiver

  • 32 MHz Wide spectrum receiver
  • 106 Pre-coordinated frequencies for quick, easy, and reliable set up
  • One-touch auto scan searches for clear channel
  • One-touch sync links transmitter to the receiver via infrared beam

B60 L10 Bodypack Transmitter

  • 64 MHz Wide spectrum transmitter
  • Durable metal housing
  • 14 Hour run time – AA batteries


Connections

Audio outputs
6,3mm tele Unbalanced
Audio outputs
XLR Balanced

Wireless specification

Radio frequency
522 MHz - 554 MHz
Number of channels
1 pcs.
Simultaneous channels
16 pcs.
Wireless range
91 m

Energy

Power Supply
100 - 240V / 50 - 60 Hz, 12V DC, 1A
Battery
2x AA, 1,5V
Battery life
14 h

Mitat ja Paino

Width
205 mm Reciever
Depth
206 mm Reciever
Height
44 mm Reciever
Net weight
0,87 kg Reciever

Additional information

Included Accessories
1x R41 32 MHz Diversity Receiver, 1x B60 Bodypack Transmitter, 2x Antennas, 1x Audio Cable, 2x AA Batteries, 1x Carrying Case, 1x Power Supply, 1x User Guide, 1x Rackmount Hardware
Warranty
3 vuotta

Paketin tiedot

Paketin mitat
397 x 304 x 73 mm
Paketin paino
2,70 kg
