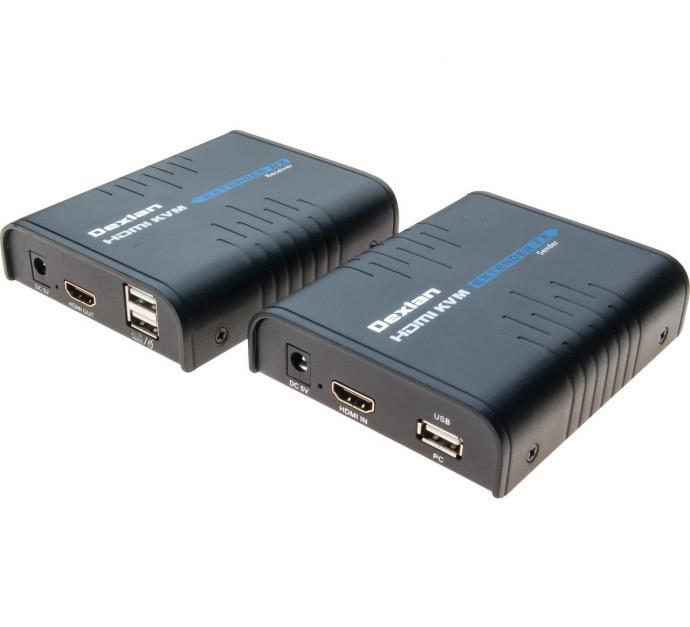

With the DEXLAN HDMI/USB IP extension kit, you can remove your HDMI and USB console up to 100 m from your computer by connecting the two transceiver boxes to a single RJ45 cable (category 5), or 6 (6a recommended).

**Specifications: **

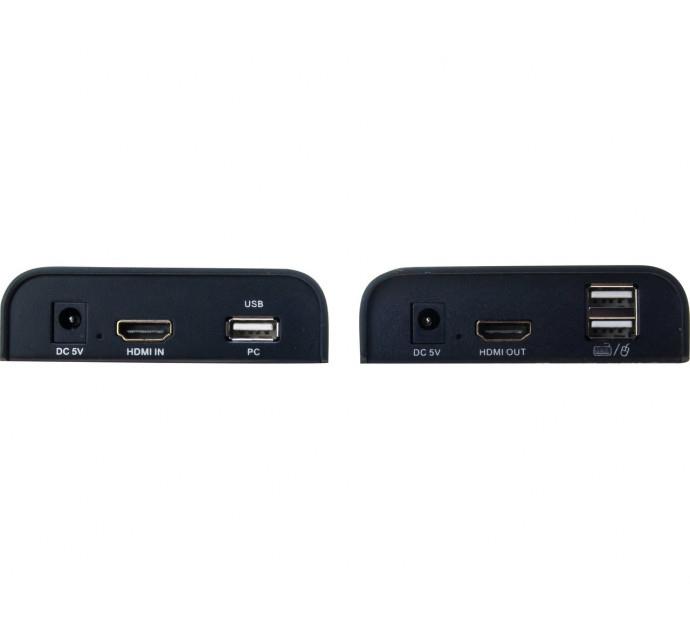

Transmitter connections:
1 HDMI port
1 USB port (PC connection with USB cable A / A 1.20 m included)
1 RJ45 Gigabit Ethernet 1000 Mbps auto MDiX connector
1 power supply socket 5.5 / 2.1 5V 1A
1 Reset - Button

Reciever connections:
1 HDMI port
2 USB-A ports (for USB keyboard and mouse)
1 RJ45 Gigabit Ethernet 1000 Mbit / s-Auto MDiX connection
1 power connector socket 5.5 / 2.1 5V 2A
1 Reset button

Maximum resolution: 1920 x 1080p at 60 Hz
Compatible standards: HDMI 1.3 and HDCP 1.2
Maximum distance of 100 m.

Power Supply NOT incuded



Resolution
1920x1080
Refresh rate
60 Hz

General

Extender type
Transmitter & reciever kit
Technology
TP/CAT
Range (max)
100 m

Features

USB/Data connection from
USB-A x1
USB/Data connection to
USB-A x2

Energy

Power Supply
Power supply (not included)

Paketin tiedot

Paketin mitat
244 x 180 x 86 mm
Paketin paino
727 g

Tarvikkeet

Artikkelinumero 8901233
