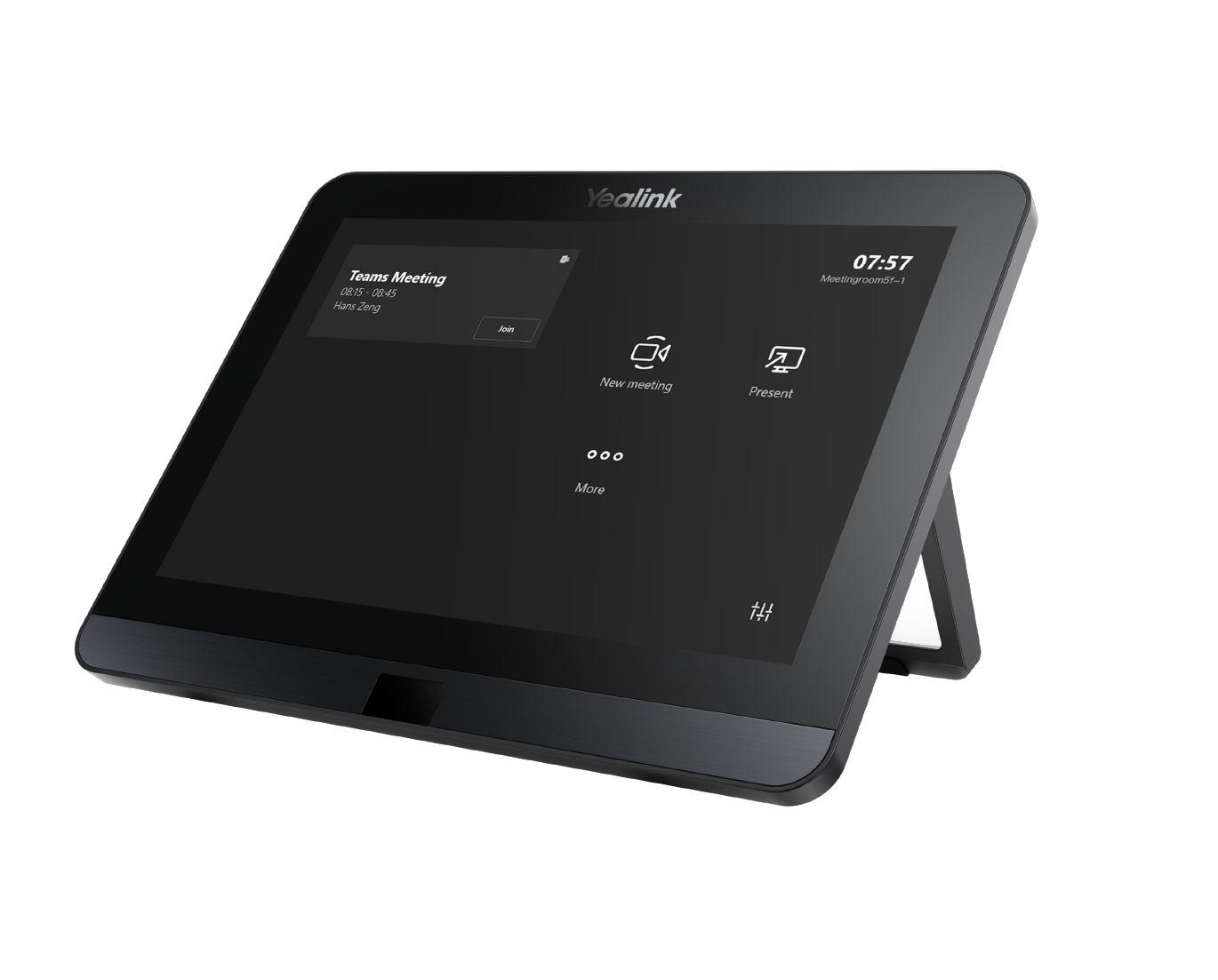

MTouch E2 Touch Panel
MTouch E2 is Yealink’s third-generation conference touch panel. It is an enhancement of MTouch II. Designed with
the idea of multi-function all-in-one, the MTouch E2 touch panel allows you easily perform call control, camera
control, content sharing and other functions. At the same time, MTouch E2 has a built-in Human Motion Sensor that
the conference system can automatically wake up and you can immediately start the conference.

  • 8-inch IPS screen
  • 1280 x 800 resolution
  • 10-point capacitive touch screen
  • 3.5mm headset jack
  • Human Motion Sensor
  • Angle adjustable bracket (28° - 50°)
  • 1080P/30FPS FHD for sharing
  • Support wired and wireless content sharing
  • Built-in Wi-Fi AP for Yealink wireless presentation device
  • HDMI/USB-C video input


General

Installation
Table, Wall
Interface type
Touch display

Connections

Control ports
Ethernet/IP (RJ-45)
Ethernet
Kyllä
WiFi
Kyllä IEEE 802.11 a/b/g/n/ac/ax

Energy

Power Supply
PoE

Mitat ja Paino

Width
202 mm
Depth
151 mm
Height
100 mm
Net weight
1 kg

Additional information

Color
Musta
Included Accessories

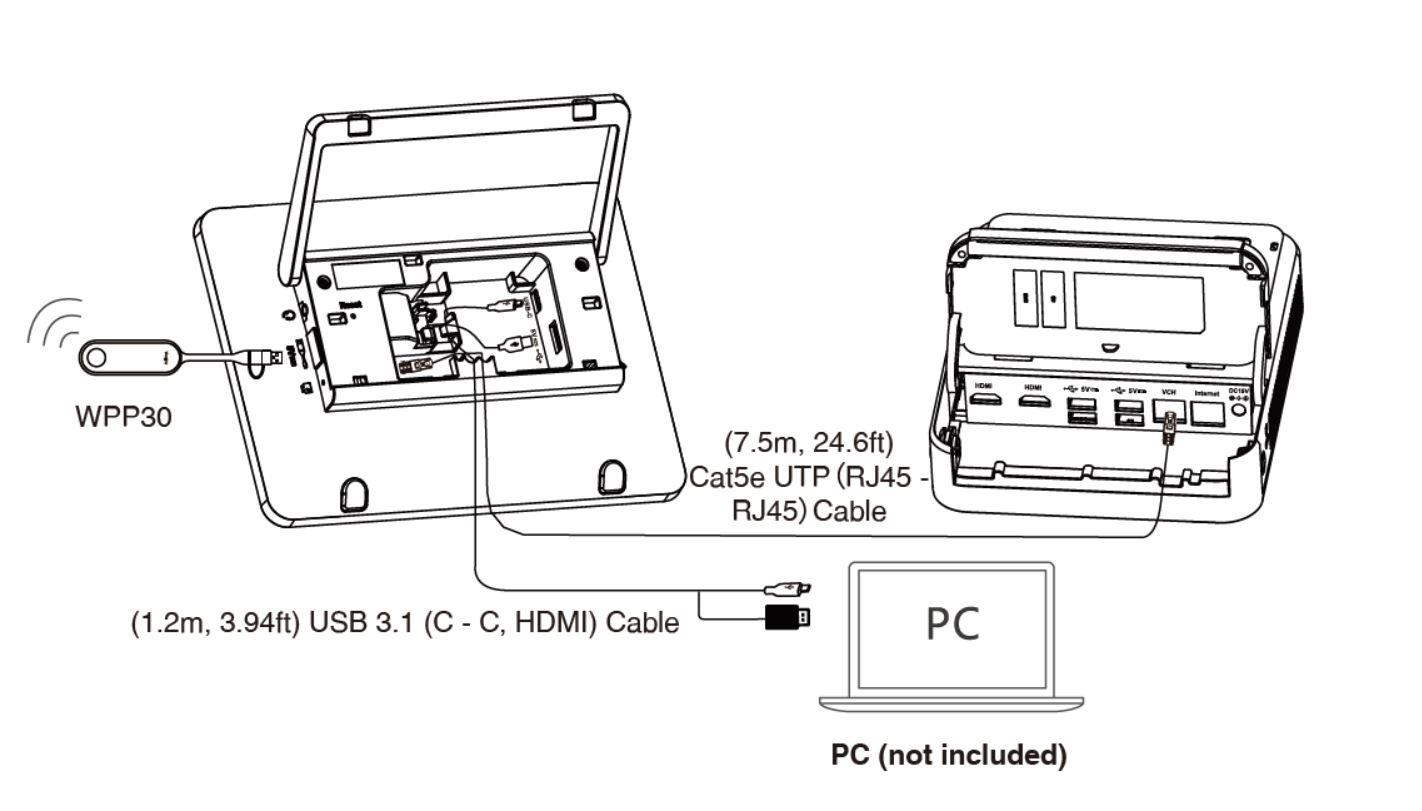

• MTouch Plus Touch Panel • Mounting Bracket • Double-Coating Tape • USB Type-C Cable (with HDMI Adapter) • 7.5m Ethernet Cable • WPP30 (Optional) • 65W PD Power Supply (Optional)
Warranty
1 vuotta

Paketin tiedot

Paketin mitat
276 x 213 x 152 mm
Paketin paino
1,36 kg
