Datasheet

TMT-750

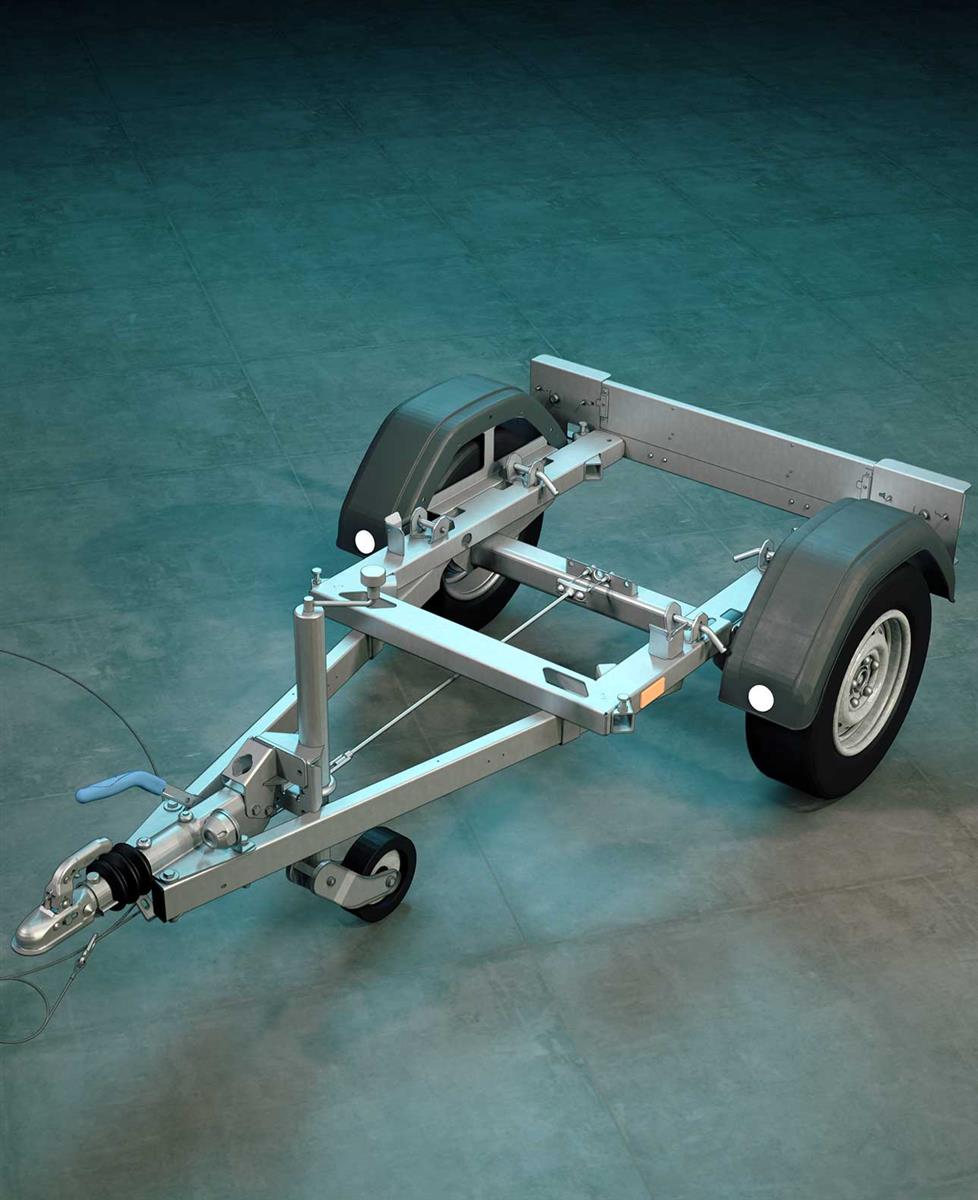

The TMT-750 Minitrailer is developed for use with the MSB-Compact. The trailer can be used to transport mobile security cabinets to and from sites. When the MSB-Compact remains on the Minitrailer, it becomes the MSB-Roadbox.

Note: security equipment as shown in the images, is not included.

  • Suitable for placing the MSB-Compact
  • Faster deployment
  • Suitable for locations where space is limited
  • Solidly welded and hot-dip galvanized chassis
  • Solidly welded and hot-dip galvanised chassis
  • Suitable for placing the MSB-Compact
  • Screwed drawbar
  • Braked overrun brake
  • Crash bar
  • Breakaway cable
  • Axle Knott braked 1350kg
  • Plug 13-pin
  • Lighting according to legal standard
  • Off-road wheels 185/70R13
  • Socket mounted on stainless steel holder
  • Spiral cable with plug-plug 13-pin
  • Heavy nose wheel automatically tiltable, static 500 kg
  • LED-lighting
  • Level mounted on chassis
  • 4x locking pin (for securing the MSB-Compact)
  • maximum allowable weight 750kg
  • Size L 246 x W 139 x H 93 cm
  • Weight: 175 kg
  • Total height: 93 cm, nosewheel included
  • Total height: 69 cm, nosewheel excluded Maximum carrying weight 750 kg CE certified / TÜV


General

Color
Hopea

Mitat ja Paino

Width
139 cm
Depth
246 cm
Height
93 cm
Net weight
175 kg

Paketin tiedot

Paketin mitat
2 460 x 1 390 x 930 mm
Paketin paino
175,00 kg
