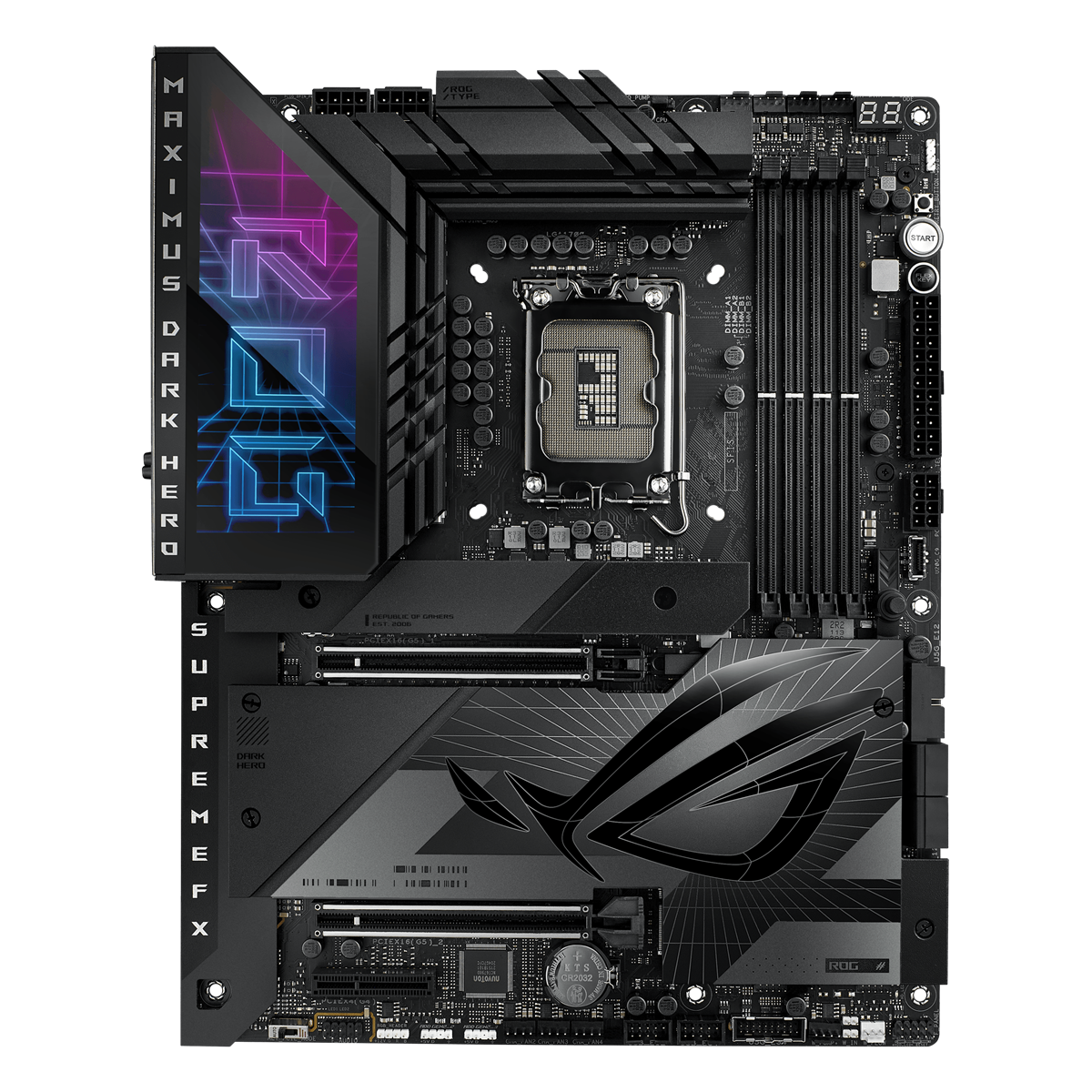

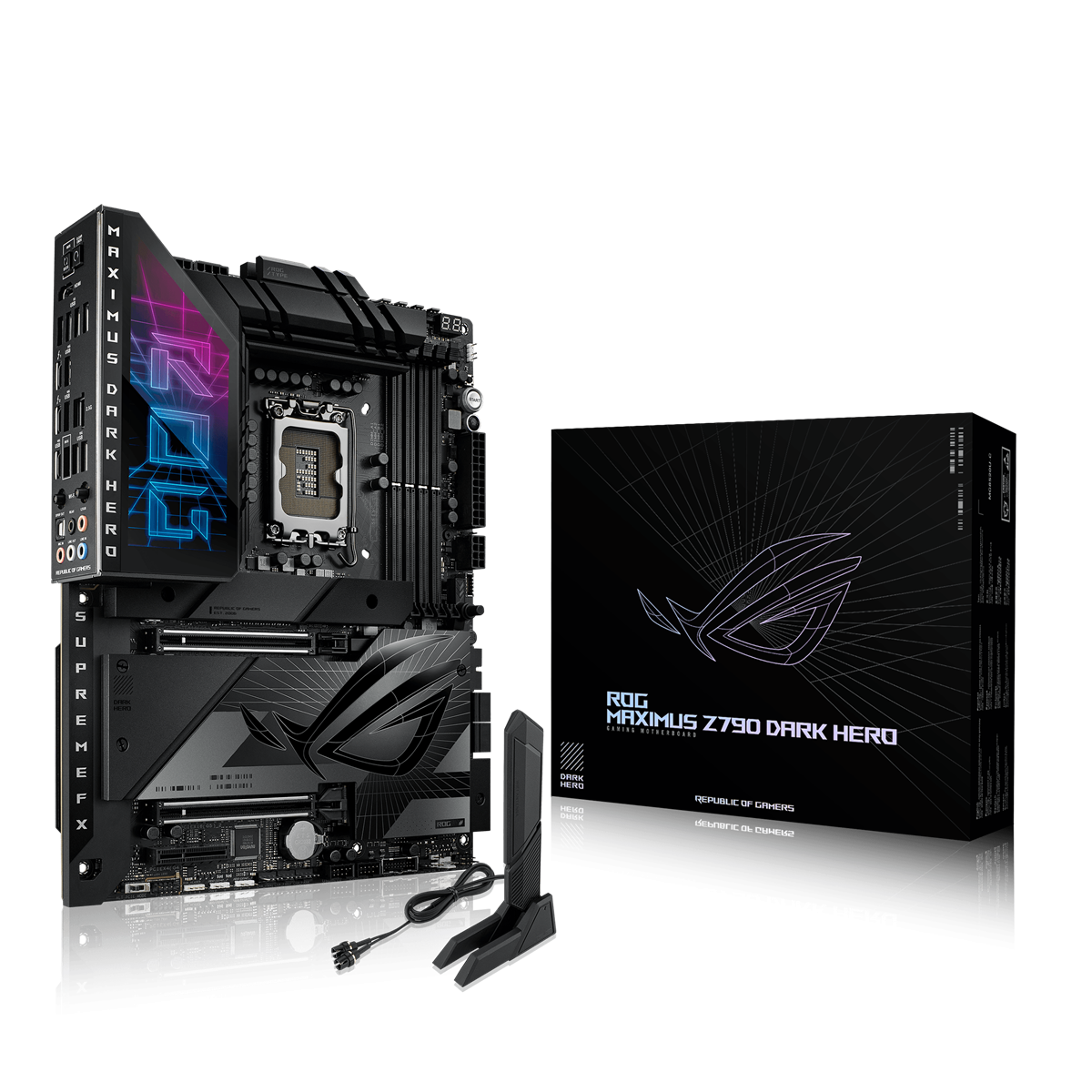

The ROG Maximus Z790 Dark Hero boasts robust cooling, WiFi 7 and ample PCIe 5.0 slot for unmatched performance, and it offers full compatibility with 14th Gen Intel® Core™ processors. Meanwhile, its stealthy design is accentuated by new Polymo lighting, which illuminates the I/O shroud with a microstructural array of dual-layer RGB and adds a personalized touch of style to your gaming setup.
ROG OVERCLOCKING TECHNOLOGIES
Psyche up and engage the Dark Hero overclocker in you, with onboard intelligence to scan, predict, and adapt CPU performance parameters, and tools to command and track system vitals.
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
DIFFERENTIAL SENSING
Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The ROG Maximus Z790 Dark Hero features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.
COOLER BY DESIGN
- VRM and aluminum I/O heatsink - A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.
- M.2 heatsinks and backplates - Large aluminum heatsinks provide extensive surface area to cool mounted M.2 drives, and each of the three onboard slots has a dedicated backplate for additional heat dissipation.
- High-conductivity thermal pads - Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink. For future maintenance, a replacement thermal pad can also be found in the package.
- Metal backplate - A metal plate spans the underside of the ROG Maximus Z790 Dark Hero, establishing a reinforced platform for smoother DIY PC building.
- Chipset heatsink - A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.
WIFI 7
Next-gen WiFi 7 chipset introduces all-new ultrawide 320 MHz channel bandwidth in the 6 GHz band and 4096 QAM, delivering up to 2.4X ultra-fast WiFi speeds. The revolutionary Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.
2.5Gb ETHERNET
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.
General
- CPU-Socket
- Intel 1700
- Chipset
- Z790
- Form factor
- ATX
Memory
- Memory Type
- DDR5
- Memory frequency (base)
- 4 800 MHz
- Memory frequency (OC)
- 8 000 MHz
- Memory slots
- 4 pcs.
- Max Memory Supported
- 192 GB
Expansion Slots
- PCIe generation
- PCIe 5.0
- PCIe x16
- 2 pcs.
- PCIe x4
- 1 pcs.
Storage Devices
- M.2 slots
- 5 pcs.
- M.2 support
- 2242/2260/2280/22110
- M.2 generation
- PCIe 5.0 x4/PCIe 4.0 x4
- M.2 interface
- PCIe
- SATA ports
- 4 pcs.
Communications
- WiFi
- Kyllä
- WiFi Standard
- Wi-Fi 7
- Bluetooth
- Kyllä
- Bluetooth standard
- 5.4
- LAN controller
- Intel®
- LAN Speed
- 2.5Gb Ethernet
Internal I/O Connectors
- RGB
- Kyllä
- Fan Connector (4-pin)
- 7 pcs.
Rear Panel Ports
- USB type-A
- Kyllä
- USB type-C
- Kyllä
- HDMI
- Kyllä
- AUX out
- Kyllä
- Ethernet
- Kyllä
Mitat ja Paino
- Width
- 24,4 mm
- Length
- 30,5 mm
Paketin tiedot
- Paketin mitat
- 376 x 314 x 119 mm
- Paketin paino
- 3,90 kg
Paketin tiedot kpl
- Paketin mitat
- 450 x 400 x 450 mm
- Paketin paino
- 17,00 kg
