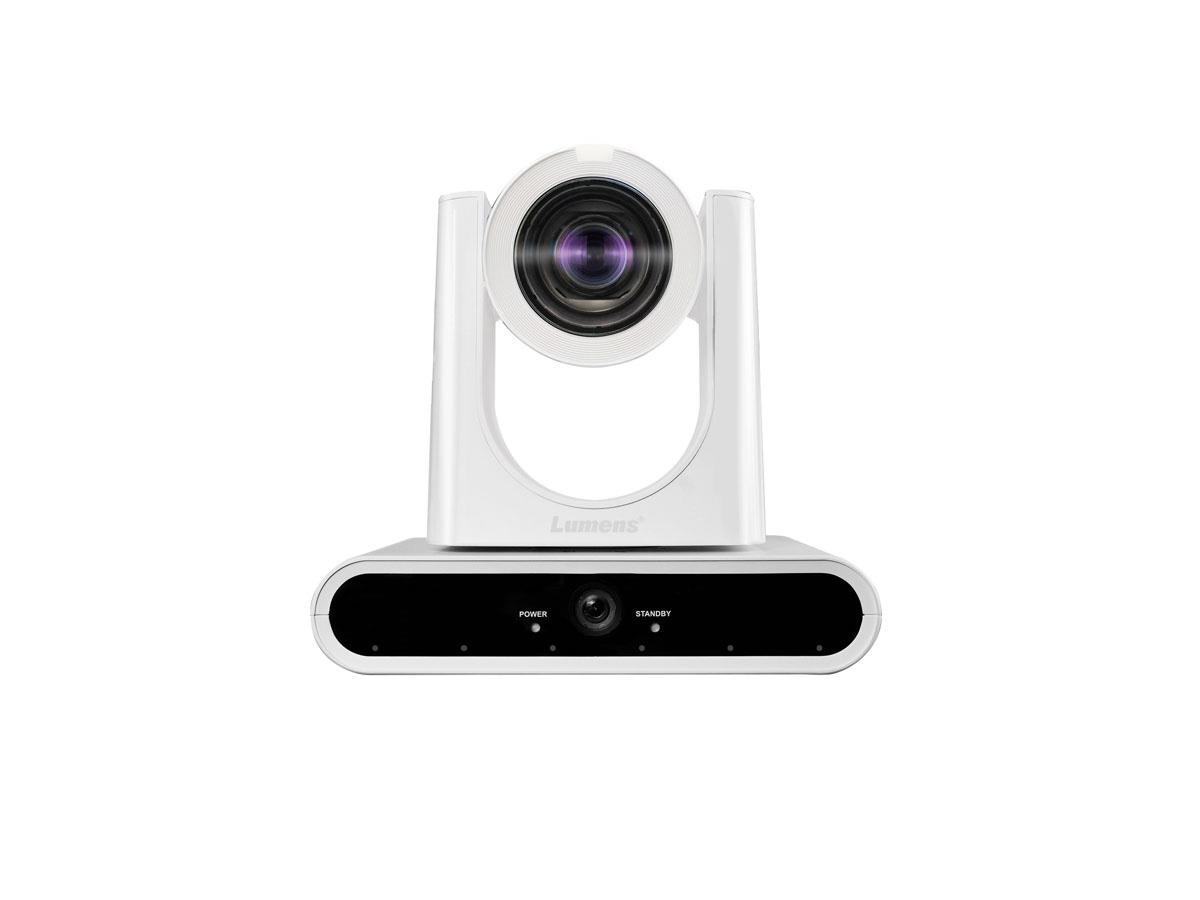

VC-TR60A - 4K Dual Lens Speaker Tracking Camera

Certified for Microsoft Teams
Dual Lens Camera with 12x Optical Zoom
Smart Speaker Tracking with integrated voice sensors
Picture in Picture Function
Motion-detect and auto-tracking
HDMI, Ethernet, and USB simultaneous output

Intelligent Speaker Tracking
VC-TR60A incorporates an array of directional sound sensors that detect the location of active human voices. The camera head moves and zooms to shoot the current speaker, re-framing as other voices enter the discussion. VC-TR60A supports a reference audio input (USB or line in). This eliminates remote side audio interference, ensuring precise and reliable speaker tracking of speakers within the room.

AI Motion Tracking
VC-TR60A features sophisticated auto-tracking and framing modes. Its intelligent human detection algorithms deliver smooth tracking for conferences, presentations, meeting rooms, classrooms and studios.

PIP Output
VC-TR60A can combine the two video images in a picture-in-picture display with output over HDMI and USB. This allows the audience to watch a composite video that incorporates both the wide-angle view and the tight shot. This function can be activated independently, or at the same time as running motion or speaker tracking.

Dual Video Output
VC-TR60A generates two video streams from its panoramic fixed camera and the robotic zoom head. These can be delivered over IP into a media processor, IP-based production software or a lecture capture system to provide two camera angles from a single unit.

USB Audio Reference Line In
Attach a USB speakerphone directly to the VC-TR60A for single cable connection to your MTR or laptop. In speaker tracking mode, the camera's tracking algorithm will exclude sound produced by the speakerphone, ensuring that the VC-TR60A focuses only on individuals in the meeting space.

Allmänt

Kameratyp: PTZ kamera
Färg: Vit
Certifieringar: Microsoft Teams, USB BYOD

Bildspecifikation

Max Upplösning (Ut): 3840x2160
Framerate: 60 FPS
Optisk zoom: 12 x
Digital zoom: 8 x
Synfält (horisontellt): 81 ° Panoramic Camera: 110°
Signal till brusförhållande: 50 dB
Min. bakgrundsljus: 0,5 Lux (F1.8, AGC ON)
Min. avstånd: 1 500 mm

Funktioner

Programmerbara positioner: Ja 256x
Takmontering/Flipbar bild: Ja
Pan-rörelse +/-: 170 °
Tilt rörelse upp: 90 °
Tiltrörelse ner: 30 °
Auto framing/tracking: Ja Auto Tracking, Speaker Tracking, Auto Framing, PIP (Picture in Picture)

Ljudspecifikation

Inbyggd mikrofon: Nej
Extern mikrofon: Ja MIC In (Phone Jack 3.5mm x1)
Inbyggd högtalare: Nej
Extern högtalare: Nej

Anslutningar

Bildanslutning ut: HDMI 2160p 60
Bildanslutning ut: IP stream (RJ-45) H.264, 2160p 30 / 720p 30
Bildanslutning ut: USB-B H.264 / MJPEG / NV12, 2160p 30
USB standard: 3.0
Ljudanslutning in: 3,5mm tele x2, Line/Mic in & Reference audio input

Energi

Strömförsörjning: 12V DC In, max 14W or PoE+ (IEEE802.3at) max 15W
Förbrukning Max: 15 W

Mått och vikt

Bredd: 190 mm
Djup: 144 mm
Höjd: 185 mm
Nettovikt: 1,5 kg

Övrigt

Medföljande Tillbehör: Remote Control, AC Power Cord, Power Adapter, 3PIN 2PIN Connector, USB B-A 3.0 cable 2m
Garanti: 5 år

Förpackningsinfo

Förpackningsstorlek: 276 x 246 x 208 mm
Förpackningsvikt: 2,87 kg
