Features

• Transparent, backlit buttons with customisable labels
• Every button indiv. programmable, e. g. RS232, RS485, IR and trigger signals
• Intuitive programming with simple command uploading and configuration
• Up to 99 control panels can be looped in a system and be controlled together
• PC software programming via USB or RS232, installation in 2-gang wall socket

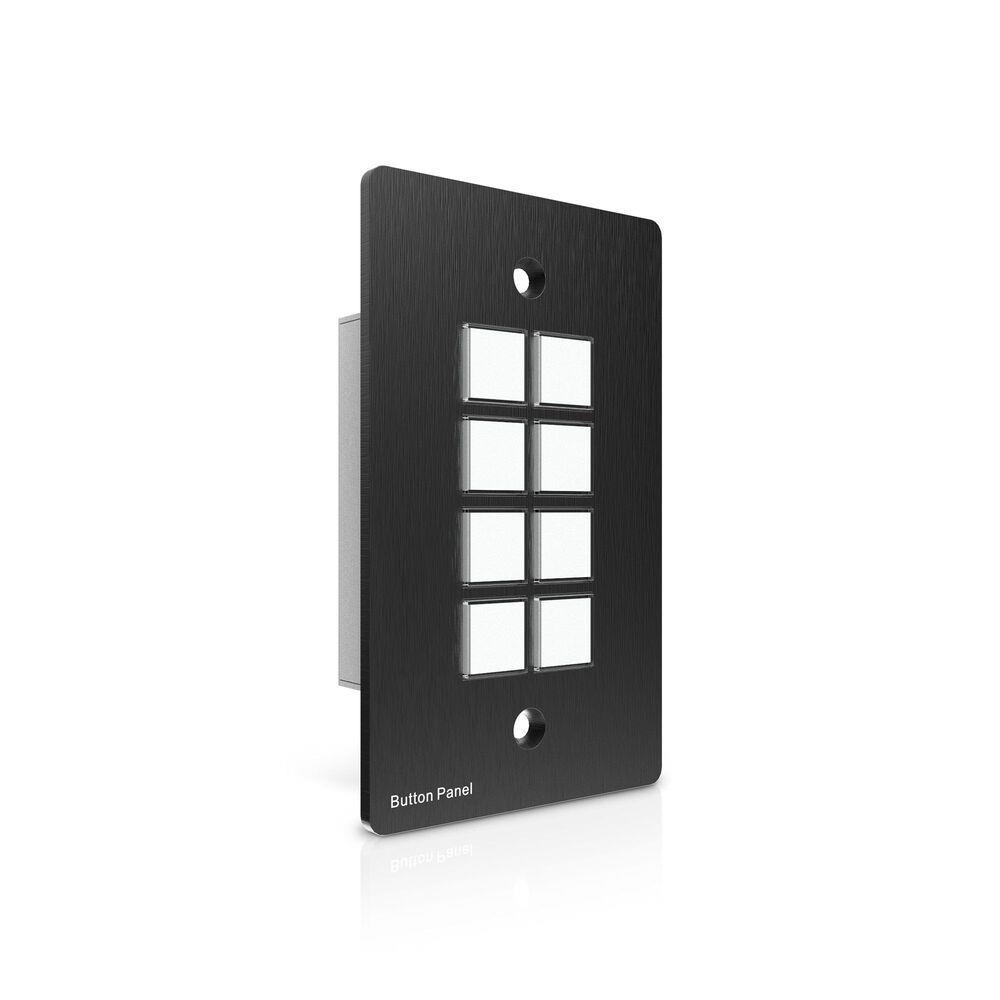

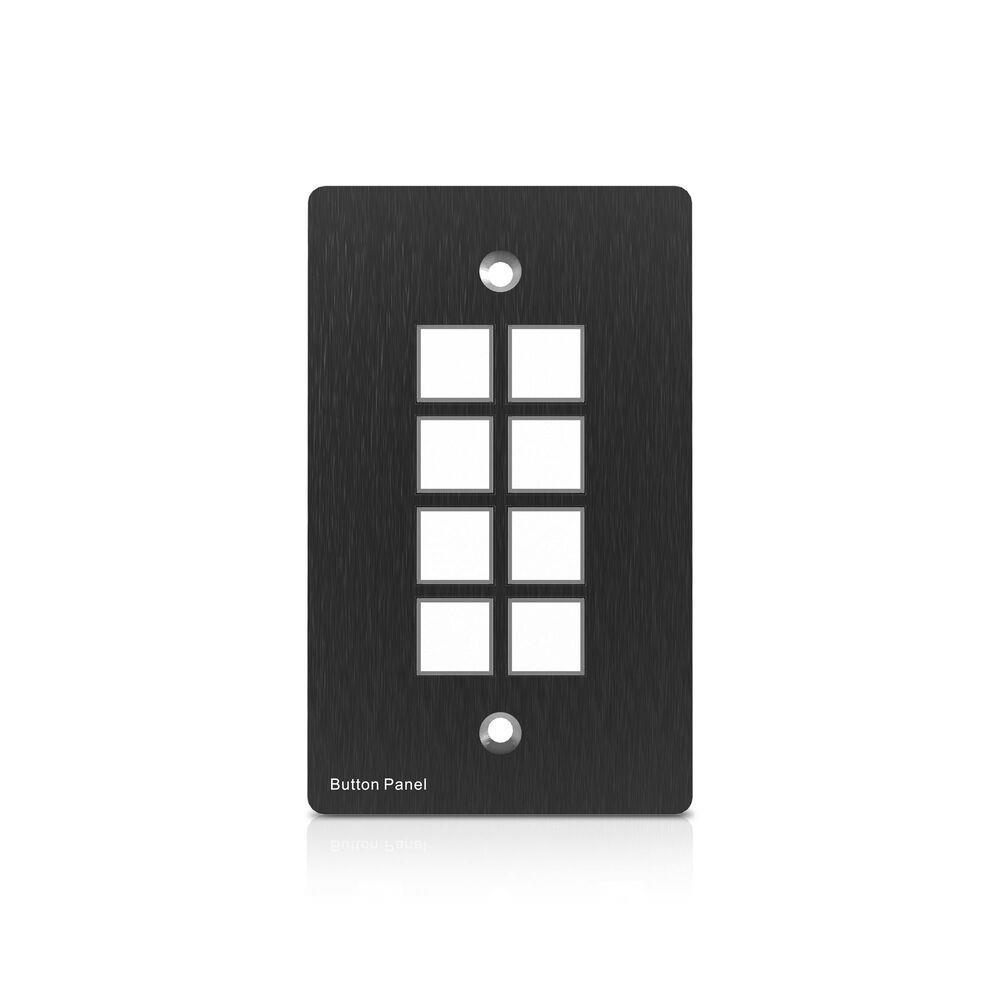

PureTools 8 Button Control Panel Wall Plate Module – Multi-Protocol Command Integration for AV Systems
The PureTools 8 Button Control Panel Wall Plate Module features eight individually programmable, backlit buttons with transparent covers, designed for direct wall installation in a standard 2-gang socket. Each button supports customisable labelling and can be configured to transmit a range of control signals, including RS232, RS485, IR, and trigger outputs. Programming is accomplished via PC software using either USB or RS232 connectivity, allowing rapid deployment and reconfiguration. Multiple panels—up to 99 units—may be interconnected in a single system, enabling synchronised control across distributed AV environments such as meeting rooms, control suites, or signage installations.

• Customisable Backlit Button Interface: Transparent, illuminated buttons accept user-defined labels, supporting clear identification of control functions in low-light or high-traffic AV environments.
• Multi-Protocol Signal Output: Each button is individually programmable to transmit RS232, RS485, IR, or trigger signals, facilitating integration with a wide range of AV hardware and control systems.
• Intuitive PC-Based Configuration: Programming and command uploading are managed via dedicated software, accessible through USB or RS232, streamlining setup and on-site adjustments.
• Scalable System Looping: Up to 99 control panels can be interconnected and managed as a unified system, supporting synchronised operation across multiple zones or rooms.
• Standard Wall Socket Installation: The panel is designed for direct installation in a 2-gang wall socket, ensuring compatibility with common electrical backboxes and facilitating integration into existing infrastructure.

Technical Solution for Distributed AV Control
The PureTools 8 Button Control Panel Wall Plate Module addresses the need for flexible, scalable, and protocol-agnostic control in professional AV installations. Its programmable interface, multi-protocol support, and system expandability enable precise command distribution and unified operation across complex AV environments.
