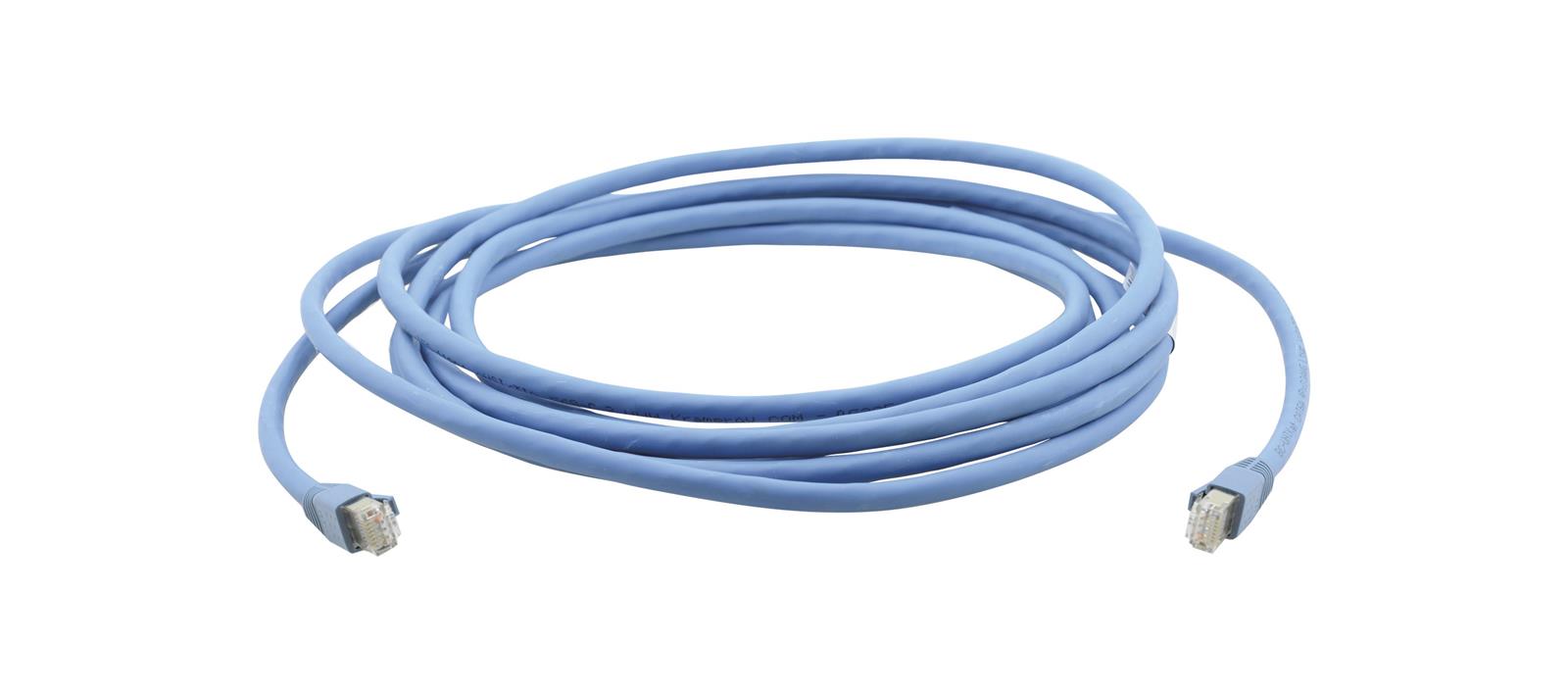

Kramer's C−UNIKAT cable is a unified CAT6a cable that handles all the latest technology signals. Over four individually screened twisted pairs, this U/FTP CAT6a cable runs Kramer’s DGKat™ technology, 4K HDBaseT™ technology or LAN applications and ensures optimum signal performance.

Key Features:

  • Quality Construction — 4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors are cabled together in an unshielded outer jacket.
  • Optimized for Kramer Hardware — Use with any of Kramer’s wide range of twisted pair digital transmitter–receiver sets (DGKat™ and HDBaseT).

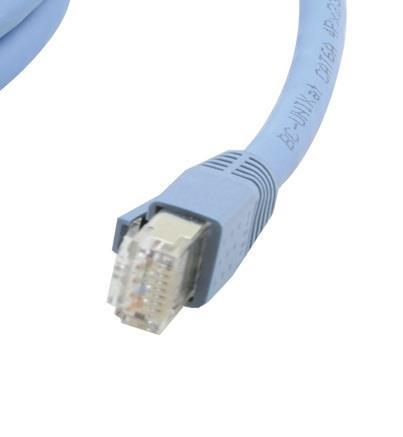

  • High–Quality Shielded RJ–45 Connectors — 50u gold plated contacts.
  • Varied Selection of Length — 1.8 to 100m

All configurations:
C–UNIKat–2 Four–Pair CAT6A U/FTP 4x2x23AWG Cable 0,60m
C–UNIKat–3 Four–Pair CAT6A U/FTP 4x2x23AWG Cable 0,90m
C–UNIKat–6 Four–Pair CAT6A U/FTP 4x2x23AWG Cable 1,80m
C–UNIKat–10 Four–Pair CAT6A U/FTP 4x2x23AWG Cable 3,00m
C–UNIKat–15 Four–Pair CAT6A U/FTP 4x2x23AWG Cable 4,60m
C–UNIKat–25 Four–Pair CAT6A U/FTP 4x2x23AWG Cable 7,60m
C–UNIKat–35 Four–Pair CAT6A U/FTP 4x2x23AWG Cable 10,70m
C–UNIKat–50 Four–Pair CAT6A U/FTP 4x2x23AWG Cable 15,20m
C–UNIKat–75 Four–Pair CAT6A U/FTP 4x2x23AWG Cable 22,90m
C–UNIKat–100 Four–Pair CAT6A U/FTP 4x2x23AWG Cable 30,50m
C–UNIKat–125 Four–Pair CAT6A U/FTP 4x2x23AWG Cable 38,10m
C–UNIKat–150 Four–Pair CAT6A U/FTP 4x2x23AWG Cable 45,70m
C–UNIKat–164 Four–Pair CAT6A U/FTP 4x2x23AWG Cable 50,00m
C–UNIKat–200 Four–Pair CAT6A U/FTP 4x2x23AWG Cable 60,00m
C–UNIKat–230 Four–Pair CAT6A U/FTP 4x2x23AWG Cable 70,00m
C–UNIKat–328 Four–Pair CAT6A U/FTP 4x2x23AWG Cable 100,00m



Allmänt

Kabeltyp
Installationskabel
Kategori
Cat 6a
Skärmning
U/FTP
Typ av ledare
Solid
Korskopplad
Nej
Utomhusbruk
Nej
Låg rök/halogenfri
Ja
HDBaseT-klassad
Ja

Mått och vikt

Längd
50 m
Ytterdiameter
7,2 mm

Övrigt

Färg
Blå
Garanti
7 år

Förpackningsinfo

Förpackningsstorlek
250 x 250 x 150 mm
Förpackningsvikt
2,60 kg
