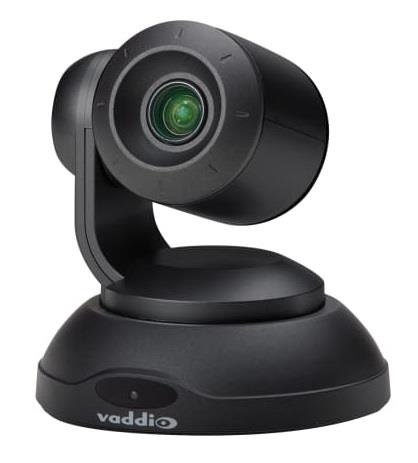

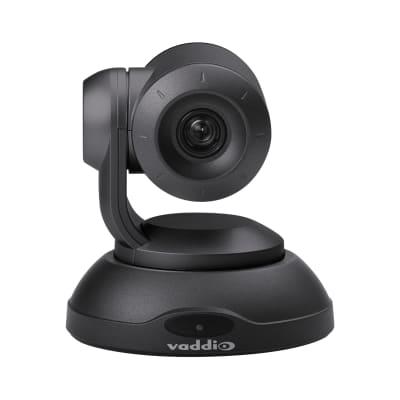

The Vaddio™ ConferenceSHOT 10 Camera is an Enterprise-Class, high definition PTZ conferencing camera with high quality imaging, exceptional color reproduction and truly fine detail. With simultaneous and individual USB 3.0 uncompressed and IP (H.264) streaming video outputs, this camera offers integrators, dealers and end users with an impressive improvement over other USB conferencing cameras available today.
The latest generation Exmor™ 1/2.8”, 2.38 Megapixel, Full HD (native 1080p/60) high-speed, low noise CMOS image sensor combined with the new ISP, produces vivid and realistic color with super-fast, razor sharp and transparent auto-focus and iris routines.
The ConferenceSHOT 10 USB has an Ethernet port for IP (H.264) streaming and a built-in web server, which allows the user to control the camera’s functions with an internal web page with any browser from anywhere in the world, over the IP network, while watching the RTSP format video stream with H.264 compression.
With a 74-degree wide horizontal field-of-view and 10X optical zoom, the ConferenceSHOT 10 USB provides great flexibility in a variety of applications including small to medium-sized conference rooms and huddle rooms as well as corporate, healthcare, government and education environments.
Key Features:
- 10x Optical Zoom Lens
- Exmor 1/2.8-Type 2.14 Effective Megapixels (Native 1080p/60) high-speed, low noise CMOS image sensor
- Built-in web server for configuration, control and remote management
Allmänt
- Kameratyp
- PTZ kamera
- Färg
- Svart
- Certifieringar
- Zoom
Bildspecifikation
- Max Upplösning (Ut)
- 1920x1080 60 Hz
- Framerate
- 60 FPS
- Optisk zoom
- 10 x
- Synfält (horisontellt)
- 74 °
- Signal till brusförhållande
- 50 dB
- Min. bakgrundsljus
- 100 Lux Reccomended
- Min. avstånd
- 10 mm
Funktioner
- Programmerbara positioner
- Ja 16 + Custom Home
- Takmontering/Flipbar bild
- Ja
- Pan-rörelse +/-
- 165 °
- Tilt rörelse upp
- 90 °
- Tiltrörelse ner
- 30 °
- Auto framing/tracking
- Nej
Ljudspecifikation
- Inbyggd mikrofon
- Nej
- Extern mikrofon
- Nej
- Inbyggd högtalare
- Nej
- Extern högtalare
- Nej
Anslutningar
- Bildanslutning ut
- IP stream (RJ-45) RTSP format with H.264 compression
- Bildanslutning ut
- USB-B
- USB standard
- 3.0
Energi
- Strömförsörjning
- 12 VDC, 3.0 A Local Power supply
Mått och vikt
- Bredd
- 155 mm
- Djup
- 145 mm
- Höjd
- 163 mm
- Nettovikt
- 1,36 kg
Övrigt
- Medföljande Tillbehör
- QSG, 12V power supply w. AC cord set, Wall Mount w. Mnt. Hardware, IR Remote, 1.8m USB 3.0 A-B cable, EZCamera RS-232 Control Adapter
- Garanti
- 2 år
Förpackningsinfo
- Förpackningsstorlek
- 355 x 355 x 457 mm
- Förpackningsvikt
- 6,02 kg
