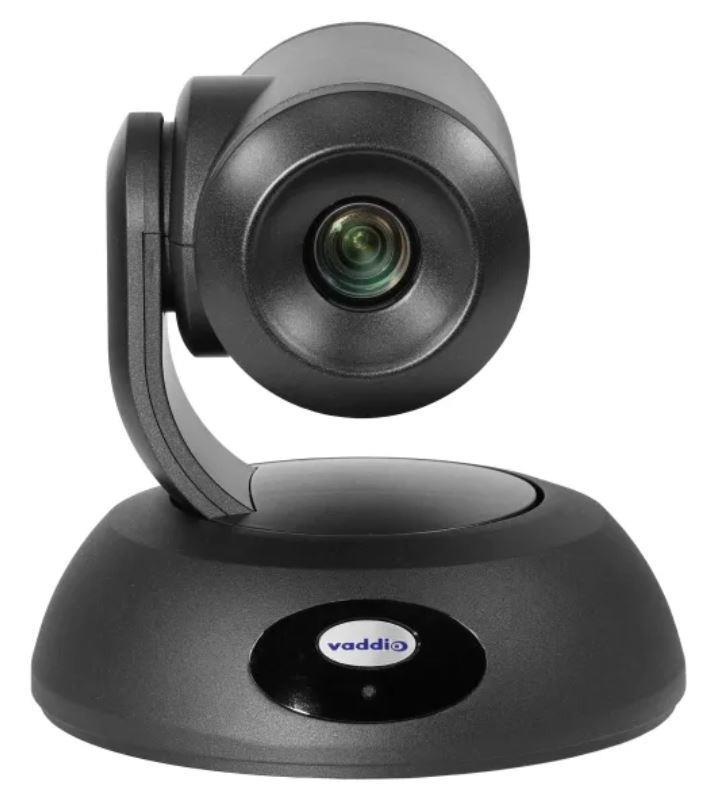

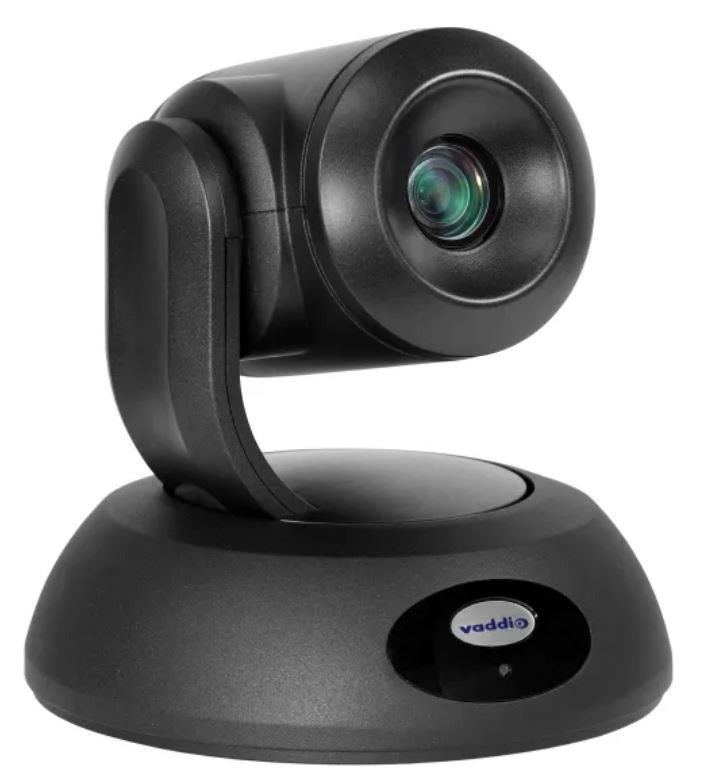

RoboSHOT Elite Series cameras are professional A/V presentation cameras. Professional A/V presentation camera. Simultaneous HDMI, 3Gb/s HD-SDI, and IP (H.264) streaming. Recommended for conference rooms, training rooms, and classrooms that require a wide angle of view.
Key Features:
• 12x optical zoom
• 1/2.5-type Exmor R CMOS sensor
• Simultaneous 3G-SDI, HDMI and IP H.264 streaming
• Remote IP Management
Introducing the RoboSHOT Elite Series - Vaddio’s next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.
RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.
Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.
A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera’s streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.
The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.
The RoboSHOT 12E cameras are recommended for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.
Video outputs include simultaneous 3G-SDI, HDMI and IP (H.264) streaming.
In the box:
- RoboSHOT 12E SDI camera (black or white)
- Quick-Start Guide
- PoE+ Midspan Power Injector
- Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
- Vaddio IR Remote Commander
Allmänt
- Kameratyp
- PTZ kamera
- Färg
- Svart
Bildspecifikation
- Max Upplösning (Ut)
- 1920x1080
- Framerate
- 60 FPS
- Optisk zoom
- 12 x
- Synfält (horisontellt)
- 70,2 °
- Signal till brusförhållande
- 50 dB
- Min. bakgrundsljus
- 1,6 Lux 100+ lux recommended
- Min. avstånd
- 80 mm
Funktioner
- Programmerbara positioner
- Ja 16 + Custom Home
- Takmontering/Flipbar bild
- Ja
- Pan-rörelse +/-
- 150 °
- Tilt rörelse upp
- 90 °
- Tiltrörelse ner
- 30 °
- Auto framing/tracking
- Nej
Ljudspecifikation
- Inbyggd mikrofon
- Nej
- Extern mikrofon
- Nej
- Inbyggd högtalare
- Nej
- Extern högtalare
- Nej
Anslutningar
- Bildanslutning ut
- HDMI, HD-SDI
- Bildanslutning ut
- IP stream (RJ-45) H.264 streaming (RTSP or RTMP format with H.264 compression)
Energi
- Strömförsörjning
- PoE+
Mått och vikt
- Bredd
- 173 mm
- Djup
- 171 mm
- Höjd
- 173 mm
- Nettovikt
- 2,2 kg
Övrigt
- Medföljande Tillbehör
- See product text above
- Garanti
- 2 år plus option for purchasing additional 3 years
Förpackningsinfo
- Förpackningsstorlek
- 355 x 355 x 457 mm
- Förpackningsvikt
- 6,49 kg
