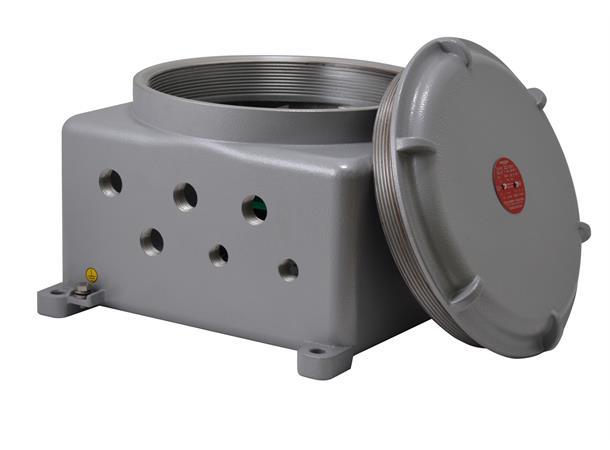

MAXIMUS MBA is much more than just a simple explosion-proof junction box. In fact it
is defined as a communication box equipped with everything needed to connect one or
more IP or analog cameras.
MAXIMUS MBA has been designed to integrate and work exclusively with the MAXIMUS
range of Videotec products.
MAXIMUS MBA provides a local, low-voltage power supply. It also allows a Fast Ethernet
connection, thanks to an integrated Ethernet switch equipped with 3 RJ45 ports and an
SFP port for fiber optic connection. The type of SFP module can be chosen according to the
installation requirements.The internal spaces are designed to make access to cables easier,
and to increase user-friendliness when it comes to connection procedures.The internal
board also offers the bypass for analog video signals and for all the inputs and outputs
which are present in the Videotec MAXIMUS products.
MAXIMUS MBA has been designed to connect a PTZ camera and its washing kit, or in
alternative two fixed cameras and their washing kits.
