5.5 Inch Wall Mounted PoE Touch Panel

  • 5.5" elegant, portable, high–quality touch panel
  • Single Ethernet cable for connectivity & PoE powering
  • Advanced Wi–Fi connectivity options
  • Wall mounted
  • Supported by: Kramer Control

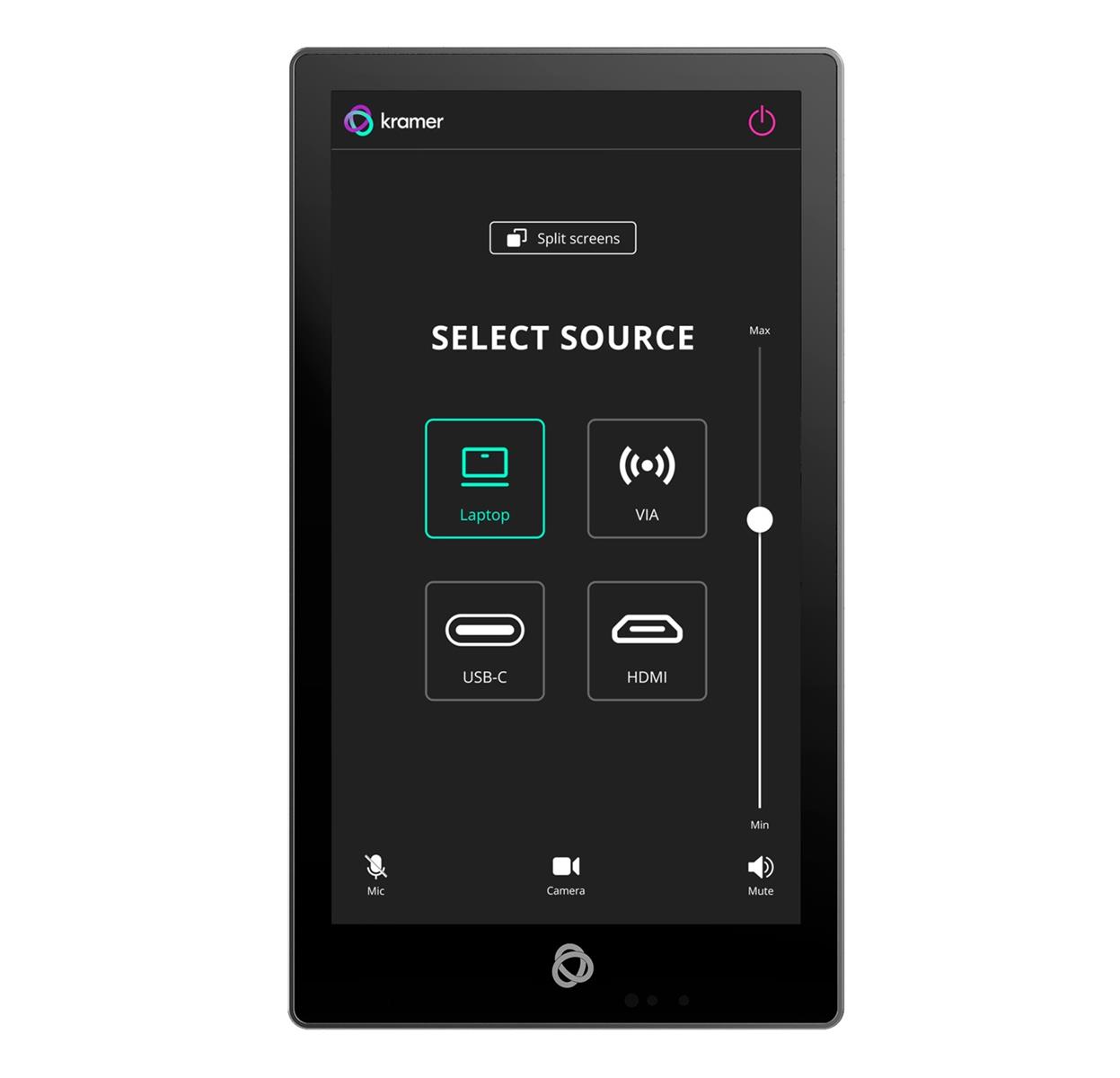

KT−205WM is a new powerful, 5.5 inch, IPS, multi−touch, touch panel with 720x1280 resolution. Elegantly designed for wall−mounted decorative room integration. KT−205WM runs the latest Android 11, supports wired PoE (Power over Ethernet) and advanced Wi−Fi connectivity options. The touch panel has a built−in speaker and microphone and comes with a wall mount. The touch panel is easy to assemble, with elegant wiring and secured mounting providing reliable operation and flexible deployment. KT−205WM touch panel is ideal for 24/7 Kramer−supported commercial AV or control applications and features a user−friendly, fully customizable graphical user interface configured by Kramer software.

  • Elegant Design — Smooth integration with room design, with flexible panel cabling and locking design options.
  • Superior User Experience — IPS 720x1280 hi–resolution screen with ±80° horizontal and vertical wide viewing angles, ambient light sensor, proximity sensor, with advanced 10 multi–touch points and 2–finger gesture capabilities.
  • Powerful Processing — i.MX8M Plus Quad Core A53, 2GB RAM, 32GB ROM processing performance, smoothly running complicated media and graphics–rich applications, such as H.265 video and audio streams encoding and decoding.
  • Flexible Services — Latest Android 11 operating system.
  • Easy Installation — Powering and connectivity via a single Ethernet cable.
  • Flexible Mounting — Including table and wall mounts.
  • Optional Connectivity — Simple wireless Bluetooth 5 as well as connection to USB peripheral devices.
  • Reliable Networking — Seamless switching between wired and wireless 802.11ac connectivity.
  • Versatile Powering Options — PoE or power adapter (sold separately).
  • Auto Sensing — Optimized performance and operation according to automatically detected LAN speed.
  • Firmware Update — Define automatic updates at a predefined time of day or update manually using the USB port.
  • Secured Operation — Highly secure operation of applications using password protection, hidden control buttons and more.
  • Secured Deployment — Flexible locking options to prevent unwanted panel mount removal, elegantly designed to remain out of site.


Allmänt

Montering
Vägg
Interface typ
Touchdisplay

Anslutningar

Styrportar
Ethernet/IP (RJ-45)
Ethernet
Ja
WiFi
Ja

Energi

Strömförsörjning
PoE: Power over Ethernet 802.3af or 12V/1A DC adapter (optional)

Mått och vikt

Bredd
143 mm
Djup
80 mm
Höjd
25 mm
Nettovikt
0,2 kg

Övrigt

Färg
Svart

Förpackningsinfo

Förpackningsstorlek
80 x 140 x 30 mm
Förpackningsvikt
491 g
