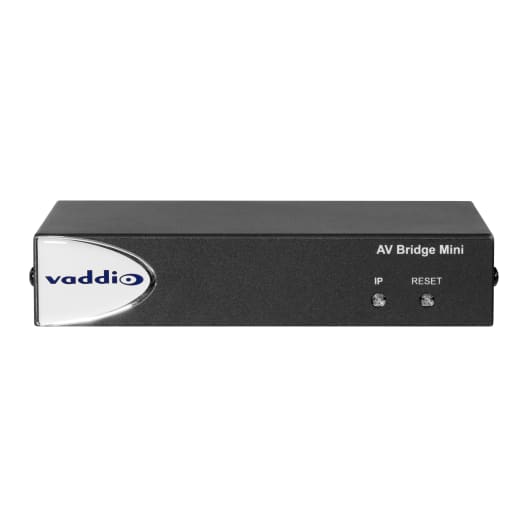

The AV Bridge Mini Audio/Video Encoder captures and streams content in a convenient, compact half-rack size, perfect for lecture halls, conference rooms, and video conferencing applications.

Key Features:

• Enables software-based video conferencing with Pro AV peripherals
• Outputs simultaneous USB 3.0 and IP streaming with up to 1080p quality
• Compact half-rack unit size fits anywhere – easy to install

Training This course introduces the AV Bridge Mini and covers its features, specifications and common applications. Enroll in this course in AV University

New! Vaddio Deployment Tool

Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! – remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

Download the Deployment Tool >

Ideal for lecture capture, conference rooms, and video conferencing applications, the AV Bridge Mini encodes and streams content from a convenient half-rack unit size.

With the AV Bridge Mini HD Audio/Video Encoder, you can bridge any high definition HDMI and audio source into soft conferencing applications such as Skype for Business, Zoom, and WebEx through its powerful USB 3.0 interface. Creating production-quality live streams on platforms like YouTube Live, UStream, LiveStream and Panopto has never been easier with the AV Bridge Mini’s flexible RTMP capabilities.

AV Bridge Mini offers your favorite features of the AV Bridge and AV Bridge Conference with several important updates including:

• Integrates pro AV sources or systems into software conferencing codec or live streaming applications
• HDMI input accepts 4K (3840 x 2160) signals and encodes and scales appropriately
• Outputs simultaneous USB 3.0 and IP streaming with up to 1080p quality
• PoE powered – easily extends power and connectivity
• Easy to install – Half rack unit size fits anywhere
• Simple user interface and control - set and forget
• Mixer for controlling audio levels and outputs
• Seamlessly interfaces with Vaddio’s HD cameras, presentation systems, video mixing consoles, and other pro audio products
• Integrates with external DSPs by providing two balanced audio line inputs and outputs
• Minimizes interoperability problems by the implementation of standards-based UVC and UAC drivers

This Package Includes:

• AV Bridge Mini
• PoE Power Injector with AC cord set(s)
• 3' (0.9m) cat-5 cable, black
• 6' (1.8m) USB 3.0 cable, type A to B
• 4 qty 3-position phoenix-style connectors
• Half-Rack mounting kit (for mounting into a full rack space)
• Quick-start card
