SKU: LTM1U

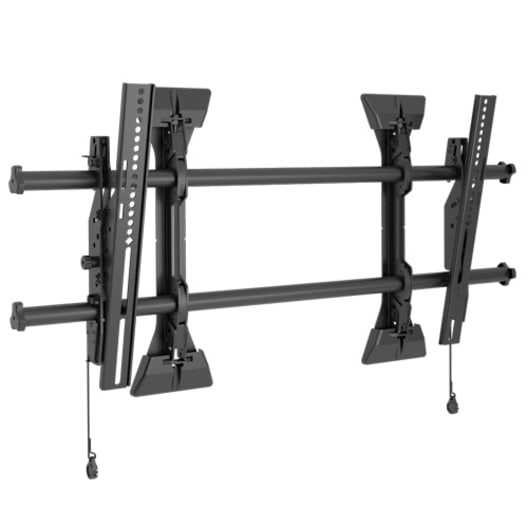

Large Fusion® Micro-Adjustable Tilt Wall Mount

Fusion® Wall Tilt Series SKU: LTM1U

Top Seller

Clear All
SKU: LTM1U
UL Listed
Overview & Features
UL Listed

Chief's Fusion® tilt wall mounts were developed based on installer feedback and direct observations of installers in the field. Favorite Fusion® features include Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.

Benefits included increased stability, fast installation, easy cable management and security.

The installer-inspired Fusion® tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.


Diagram
See a simple setup of an interactive classroom that incorporates a Fusion® tilt wall mount into its design. See the diagram

Selection Guide
Ideal for digital signage, hospitality, transportation and corporate settings, find The Fusion® tilt wall mount that's perfect for you. See the guide

SHOW MORE

Chief's Fusion® tilt wall mounts were developed based on installer feedback and direct observations of installers in the field. Favorite Fusion® features include Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.

Benefits included increased stability, fast installation, easy cable management and security.

The installer-inspired Fusion® tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.


Diagram
See a simple setup of an interactive classroom that incorporates a Fusion® tilt wall mount into its design. See the diagram

Selection Guide
Ideal for digital signage, hospitality, transportation and corporate settings, find The Fusion® tilt wall mount that's perfect for you. See the guide

Clear All
SKU: LTM1U
Specifications

Specifications for Large Fusion® Micro-Adjustable Tilt Wall Mount

Dimensions & Measurements
Depth
2 in (5.1 cm)
Height
17 in (43.2 cm)
Manual Height Adjustment
1 in (25.4 mm)
Max Screen Size
6 in (15.2 cm)
Maximum Screen Thickness
6" (152mm)
Minimum Depth
2 in (5.1 cm)
Shipping Dimensions
37.26" x 18.52" x 2.8" (946.5 x 470.5 x 71.2 mm)
Shipping Weight
20.81 lbs (9.4 kg)
Typical Screen Size
42"- 86" (1067mm - 2184mm)
Wall Stud Compatibility
16" - 32" (406mm - 813mm)
Weight Capacity
200 lbs (90.7 kg)
Width
34.75 in (88.3 cm)
Characteristics & Features
Adjustability
  • Height Adjustable
  • Lateral Shift
  • Micro-Adjustable
  • Tilt
Application
Wall
Color
Black
Number of Displays
1
Orientation
Landscape
Solution Type
Universal
TAA Compliant
No
Tilt
+2° / -12°
UPC
841872163277
VESA Mounting Pattern
100 x 100 - 878 x 500 mm
Certifications & Warranties
Certifications
  • OSHPD
  • UL Listed
SHOW MORE
