Brings your Vaddio HDBaseT camera and non-USB audio components into your USB conferencing environment for traditional videoconferencing quality, without the traditional price tag.
Compatible with RoboSHOT 12E and 30E HDBT, RoboSHOT 20 UHD, RoboSHOT 40 UHD, RoboSHOT IW and DocCAM 20 HDBT.
Key Features:
- Simple, clutter-free camera extension with HDBaseT technology
- Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
- Bridges audio and video for easy soft-client conferencing
- Configurable audio matrix with AEC
- Simultaneous HDMI, USB 3.0, IP streaming, and HD-SDI outputs
- Up to 1080p/60 resolution available over uncompressed USB
Compatible cameras:
RoboSHOT 12 HDBT
RoboSHOT 30 HDBT
RoboSHOT 20 UHD
DocCAM 20 HDBT cameras
More Flexibility for Room Design and Installation
Makes your camera a conferencing camera: OneLINK Bridge connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom. You get traditional videoconferencing audio quality with soft-client connectivity – and without the traditional videoconferencing price tag.
Sounds complicated – but it's not. This OneLINK Bridge kit simplifies installation by extending power, video and control to your Vaddio HDBaseT camera over a single Cat-5e cable up to 100m.
Benefits:
- More flexibility in camera placement
- HDBaseT interface extends power, video and control up to 328 ft (100 m)
- Delivers an uncompressed USB 3.0 media stream for high-definition cloud conferencing
- Connect to any cloud conferencing application, such as Google Hangouts, Skype for Business, WebEx, Zoom and others
- Plug and play usability for BYOD conferencing environments
- Intuitive browser-based user interface for configuration and system administration
General
- Application
- Conferencing Hub
Video specification
- Resolution max out
- 1920x1080
- Refresh rate
- 60 Hz

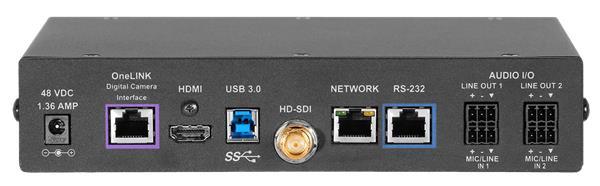

Connections
- Video inputs
- 1
- Video outputs
- 1 Mirrored to all outputs
- Video in
- HDBaseT (RJ-45) Up to 100m extension
- Video out
- 3G-SDI, HDMI
- Video out
- USB-B 3.0
- Audio inputs
- Euroblock line x2 Line/Mic Balanced
- Audio outputs
- Euroblock line x2 Line Balanced
Functions
- Scaler
- No
- USB passthrough
- No, No
- Control
- Ethernet/IP (RJ-45) Telnet
- Control
- RS-232, Web interface
Energy
- Power Supply
- 48V DC, 1,36A External Power Supply
Dimensions and weight
- Width
- 213 mm
- Depth
- 165 mm
- Height
- 43.7 mm
- Net weight
- 1.5 kg
Additional information
- Installation
- 19" Rack, 1U With optional adapter
- Installation
- Freestanding/Shelf
- Included Accessories
- OneLINK Bridge, Quick-Start Guide, 48V power supply w. AC cord set(s), 4x 3-pos. phoenix connectors, 1.8m USB 3.0 A-B cable, EZCamera RS-232 Control Adapter
- Warranty
- 3 years
Packaging info
- Packaging size
- 220 x 160 x 50 mm
- Packaging weight
- 1.83 kg
- Barcode
- 840077502294
