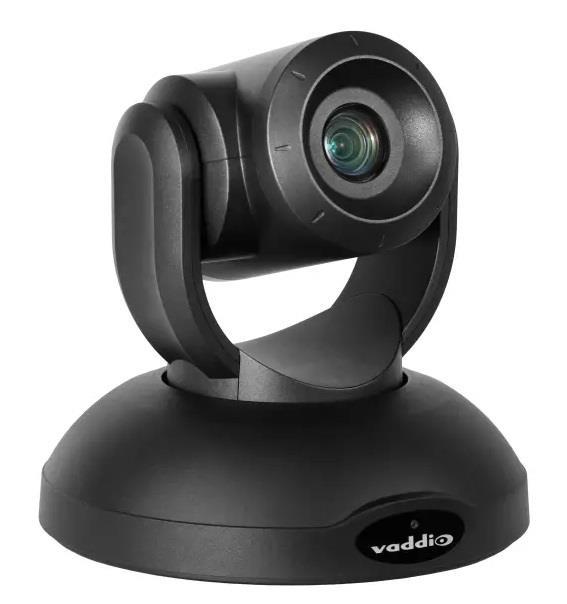

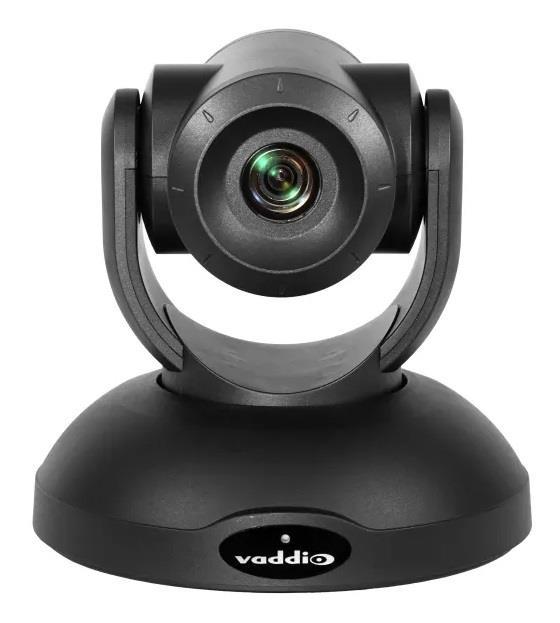

If you're looking for a 4K PTZ camera, our RoboSHOT 40 UHD provides brilliant, production-quality, high-resolution video footage for broadcasting or live streaming applications.
Key Features:
- Back-illuminated 8.51 Megapixel, ultra-high-definition 1/2.5-type CMOS sensor delivers native 2160p/30 (3840 x 2160) video
- 20x optical zoom with 30x lossless zoom at 3840 x 2160. Achieve 40x zoom at full HD resolution
- Genlock signal for multi-camera synchronization
The production-quality RoboSHOT 40 UHD PTZ camera provides brilliant 4K video footage for broadcasting or live streaming applications. RoboSHOT 40 UHD offers 40x zoom, genlock capabilities, ultra-smooth motor movement, and outstanding image quality – all at a surprisingly competitive price for the entry-level broadcast PTZ camera market.
Designed with a genlock external sync port, the RoboSHOT 40 UHD camera provides accurate synchronization in multi-camera broadcast environments, plus phase compensation to fine-tune and adjust the genlock signal. In addition to an incredible 30x zoom with 4K resolution at 30fps, it provides full high definition 40x zoom with 1080p/60fps performance with the latest advancements in digital super-resolution zoom.
With its 4K Exmor R CMOS image sensor, RoboSHOT 40 UHD offers more powerful image signal processing (ISP) – resulting in better light-gathering capabilities, incredible contrast, and sharp 4K video, even in dim lighting conditions. Expect exceptional performance in the presence of high-intensity spotlights seen in performance halls, live event venues, and night-time outdoor sporting events.
RoboSHOT 40 UHD offers silky-smooth, silent pan-tilt-zoom motion, thanks to Vaddio’s next-generation silent motors paired with Tri-Synchronous motion algorithms. Even at full zoom, the RoboSHOT 40 UHD moves with no jitter or bouncing.
Ideal for these applications:
- Broadcast TV, corporate broadcast, local TV stations, campus news
- Churches, houses of worship
- Live events
- Sporting events such as high school football or soccer
- Large auditoriums
- Concert halls
In the box:
- RoboSHOT 40 UHD 4K PTZ camera (black or white)
- Quick-Start Guide
- 12V power supply with AC cord set(s)
- Thin Profile Wall Mount (black or white) with mounting hardware
- Vaddio IR Remote Commander
- EZCamera RS-232 Control Adapter
General
- Camera type
- PTZ camera
- Color
- Black
Image specification
- Max Resolution (Out)
- 3840x2160 30Hz
- Framerate
- 30 FPS
- Optical zoom
- 20 x
- Digital zoom
- 40 x at 1920x1080p, 30x at 3840x2160p
- Field of view (horizontal)
- 70.2 °
- Signal-to-noise ratio
- 50 dB
- Min. illumination
- 1.6 Lux 100+ lux recommended
- Min. working distance
- 80 mm
Functions
- Programmable presets
- Yes 16 + Custom Home
- Ceiling installation/Flip image
- Yes Up/Down (Flip image for ceiling installation)
- Pan movement +/-
- 160 °
- Tilt movement up
- 90 °
- Tilt movement down
- 30 °
- Auto framing/tracking
- No
Audio specification
- Built-in microphone
- No
- External microphone
- No
- Built-in speaker
- No
- External speaker
- No
Connections
- Video out
- HDBaseT (RJ-45), HDMI, HD-SDI
- Video out
- IP stream (RJ-45) RTSP or RTMP format with H.264 compression)
Energy
- Power Supply
- 12 VDC, 3.0 A, LTPoE++
Dimensions and weight
- Width
- 203 mm
- Depth
- 145 mm
- Height
- 200 mm
- Net weight
- 2.7 kg
Additional information
- Included Accessories
- See product text above
- Warranty
- 3 years
Packaging info
- Packaging size
- 360 x 330 x 330 mm
- Packaging weight
- 5.90 kg
