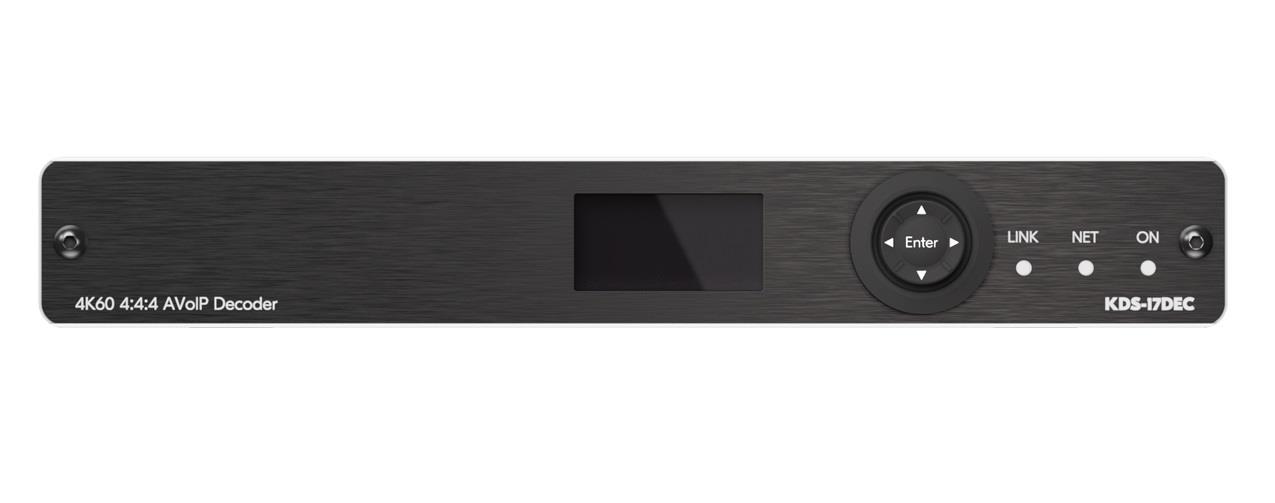

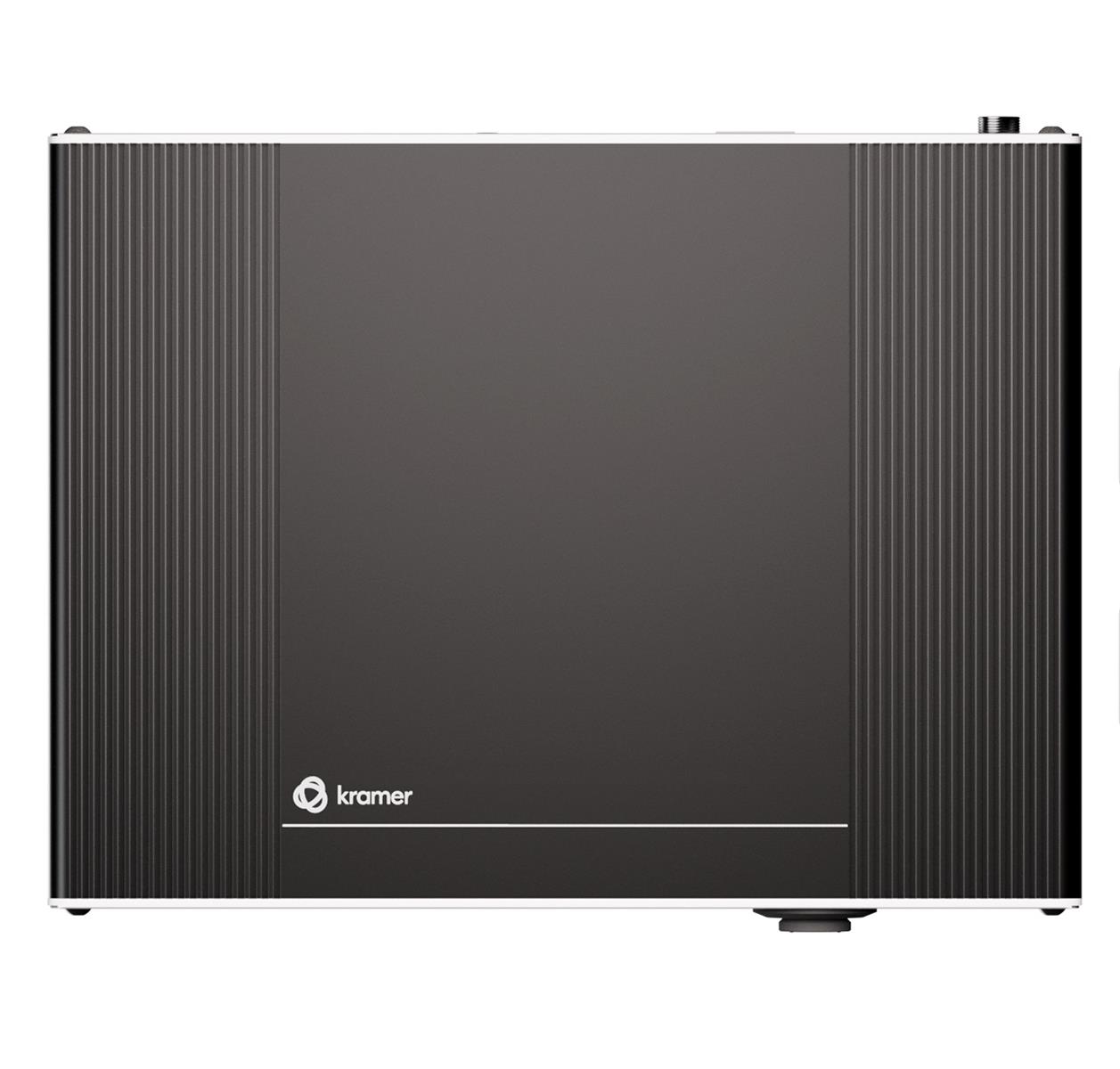

KDS−17DEC 4K60 4:4:4 AVoIP Decoder for streaming 4K video and audio signals, via Ethernet over copper cable in unicast (one−to−one) or multicast (one−to−many) configurations.

Outstanding end–user experience
Present video in superb 4K60 4.4.4 resolution, with best–in–class digital audio. With KDS–17, every visual detail and every nuance of sound comes through super–clearly. Enjoy extensive control of video walls, advanced connectivity options, and a wide choice of inputs/outputs and settings options.

Ideal for large–scale deployments
Provide a high–performance solution fine tuned to the needs of large enterprise, education and government sites, with integrated advanced management capabilities and support for many simultaneous video streams.

Easy planning and deployment
Easily and confidently integrate the AV solution into any IP network. Create A/V–enabled spaces of varying sizes swiftly and effortlessly, even without prior AV expertise. KDS–17 is very bandwidth–efficient, allowing you to leverage your IT infrastructure without perceptible network performance disruptions. Use of the existing IT network and Ethernet cabling, simplified switch configurations, and reduced dependence on skilled technicians save deployment time and cost.

APPLICATIONS:

  • For real–time essential installations such as command and control rooms
  • For large scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications
  • AV distribution systems with one or more sources and many displays in schools, universities, and public venues
  • For AV installations where low latency KM/KVM capabilities are required


General

Extender type
Reciever (Rx)
Technology
JPG 2000 JPEG2K–Like, private stream

Video specifications

Max supported resolution
4096x2160
Refresh rate
60 Hz
Chroma subsampling (4K)
4:4:4

Connections

Video in
HDMI, IP stream (RJ-45)
Video out
HDMI
Audio inputs
Euroblock line
Audio outputs
Euroblock line
Control
Ethernet/IP (RJ-45), Front buttons, IR cable connection, RS-232, Web interface
USB passthrough
Kyllä USB 3.0

Communication

Switch Data Rate
1GbE
Encoding Data Rate
850 Mbit/s Bitrate Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps
Req. Network Switch
Multicast: Through RTSP (Real Time Streaming Protocol): IGMP snooping non–blocking, Layer 2. Unicast: Through RTSP (Real Time Streaming Protocol)

Energy

Power Supply
PoE+: 37V to 57V, maximum power 15W, Optional power supply: 20V DC, 6A

Mitat ja Paino

Width
189 mm
Depth
145 mm
Height
27,6 mm
Net weight
0,7 kg

Additional information

Installation
19" Rack, 1U With optional rack adapter
Installation
Freestanding/Shelf
Warranty
7 vuotta

Paketin tiedot

Paketin mitat
316 x 185 x 81 mm
Paketin paino
966 g

Tarvikkeet

Artikkelinumero 2351835
