An HD ePTZ camera with IntelliFrame™ motion-based auto-framing that makes video conferencing and live streaming effortless.
Key Features:
- 5x zoom with 100° horizontal field of view
- One EasyIP (PoE+) network video output, plug-and-play with EasyIP endpoints
- Customizable auto-framing for a variety of environments

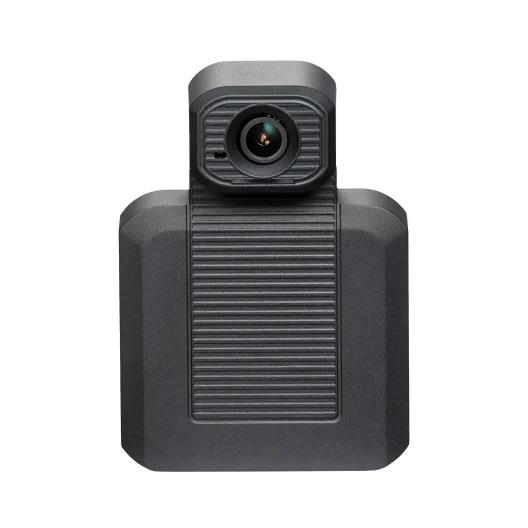

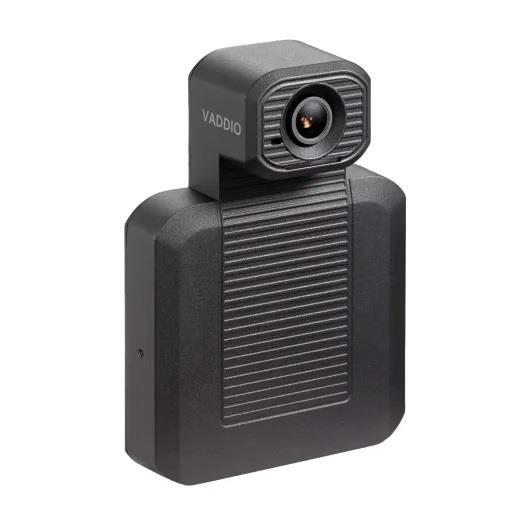

The EasyIP 5 ePTZ camera has a wide 100° field of view, making it perfect for an audience overview shot in a larger room or for getting everyone in the frame in small collaboration rooms and huddle spaces. EasyIP 5 eliminates the need for costly USB extenders by sending 1080p resolution video feeds to EasyIP endpoints over category cables.
Use EasyIP 5 with endpoints like the EasyIP Decoder for a USB output that connects you with your favorite conferencing software like Microsoft Teams, Google Meet and Zoom. Integrate the EasyIP 5 with existing video and audio systems and gain useful features like picture-in-picture and graphic overlays using the EasyIP Mixer.
Offering superior flexibility for various environments, installers can select one of three primary settings for how sensitive you want the camera’s auto-framing to be. Conservative Conference is designed for low-motion environments, Responsive Conference is the perfect option when you have teams that utilize the whole room, and Default Conference is the sweet spot where most teams are happy with the system performance.
An included Wall Mount Bracket allows the camera to tilt up and down to ensure proper framing of the conference table or room. Additional ceiling and on-display mounts are available separately.
At Vaddio, we pride ourselves on our superior image and product quality, custom control settings, and free remote management. AV and IT managers love the option of customizing camera performance for different environments and meeting types, mass firmware updates, simple troubleshooting, and free local technical support without any service contracts.
General
- Camera type
- Fixed Optic (EPTZ) Roomcamera
- Color
- Musta
- Certifications
- USB BYOD
Image specification
- Max Resolution (Out)
- 1920x1080
- Framerate
- 30 FPS
- Optical zoom
- 0 x
- Digital zoom
- 5 x
- Field of view (horizontal)
- 100 ° (Wide End) 24° (Tele End)
- Signal-to-noise ratio
- 50 dB
- Min. illumination
- 100 Lux 100+ lux recommended
- Min. working distance
- 250 mm
Functions
- Programmable presets
- Kyllä 16 + Custom Home Position
- Ceiling installation/Flip image
- Kyllä
- Auto framing/tracking
- Kyllä Basic/Advanced settings for auto-framing sensitivity, speed etc.
Audio specification
- Built-in microphone
- Ei
- External microphone
- Ei Connects via EasyIP Decoder/Mixer
- Built-in speaker
- Ei
- External speaker
- Ei Connects via EasyIP Decoder/Mixer
Connections
- Video out
- IP stream (RJ-45) EasyIP
Energy
- Power Supply
- PoE+
Mitat ja Paino
- Width
- 119,9 mm
- Depth
- 55,1 mm
- Height
- 175 mm
- Net weight
- 0,88 kg
Additional information
- Included Accessories
- Cmera, Wall mount, Mounting hardware, Cable cover, Vaddio IR Remote Master, 1m cat-5e snagless cable, Quick-start card
- Warranty
- 3 vuotta with 1 year advanced replacement
