HNCPROPLUS-BL-D
Dca RATED - HNCPROPLUS+ FOR CAT6- HDBASET ENHANCED 550 MHz 23 AWG SOLID BC, 4PR, UTP, ANSI/TIA 568-C.2, ISO/IEC 11801 CLASS E, UL CMR, EN50575:2014 Dca-s3,d2,a3 INDOOR/OUTDOOR SUN RES PVC JKT- BLUE

HNCPROPLUS+™ for Cat6 is the industrys first HDBaseT™ category cables. HNCPROPLUS+ cables provide superior HDBaseT performance for your HDBaseT devices.

HNCPROPLUS+ UTP cables consistently outperform standard Category 6 UTP cables and are certified to meet todays demanding commercial and residential Networking and A/V applications for Twisted Pair cables.

SCP HNCPROPLUS+ UTP cables exceed performance standards for: TIA/EIA 568-C.2 Category 6, ISO/IEC 11801 Ed2 Class E; and EN 50173-1:2011.

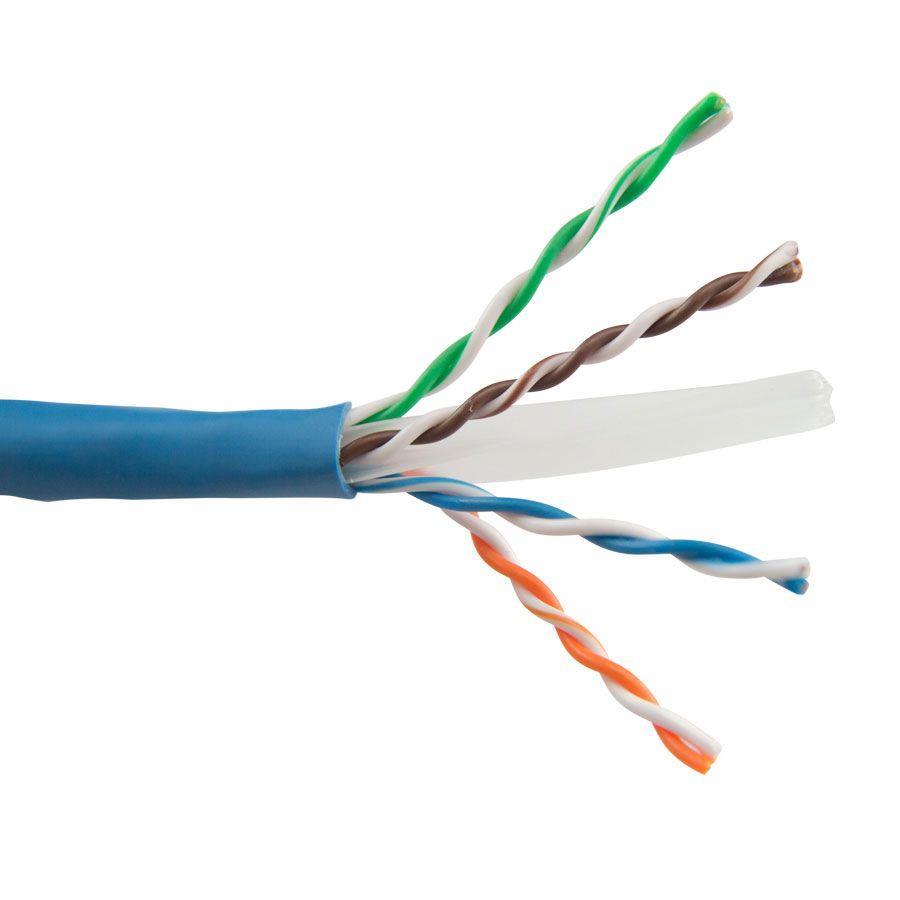

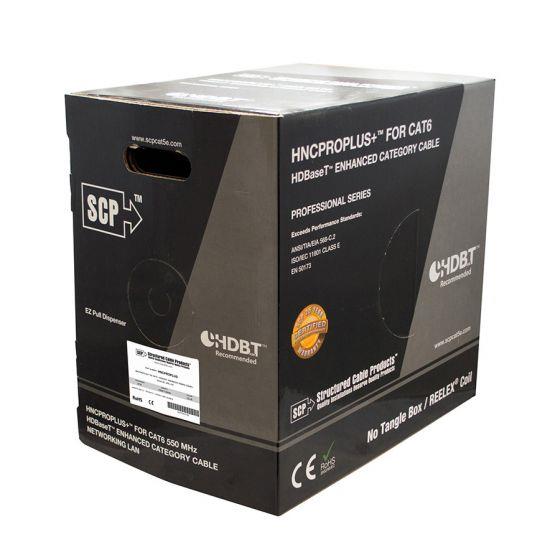

Each HNCPROPLUS+ UTP cable is performance optimized with 4 balanced twisted pairs with center spline on 23 AWG insulated solid bare copper conductors. HNCPROPLUS+ UTP cables are constructed to create a round and flexible cable for easy pulling and stripping of the PVC jacket.All HNCPROPLUS+ UTP cables are packaged in a special Black SCP Pull Box with guaranteed tangle free pulling. These cables are UL and CMR rated.

Recommended by WyreStorm®.



General

Cable type
Installation cable, Pull-box
Category
Cat 6
Shielding
U/UTP
Type of wire
Solid core
Crossover cable
Ei
Outdoor use
Ei
Low smoke/halogen free
Ei
HDBaseT classed
Kyllä

Mitat ja Paino

Length
305 m
Outer diameter
6,2 mm

Additional information

Color
Sininen

Paketin tiedot

Paketin mitat
400 x 290 x 400 mm
Paketin paino
14,30 kg

Tarvikkeet

Artikkelinumero 8102024
