VS−21DT is a high−performance automatic switcher for 4K, HDBaseT, HDMI 1.4, HDCP 2.2 video signals. Offering priority and last−connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection.
Key Features:
· Max. Data Rate - 8.91Gbps (2.97Gbps per data channel).
· Max. Resolution - 4K@60Hz (4:2:0).
· HDMI 1.4 & HDCP 2.2 Compliant.
· Supports up to 40m reach at 4K@60Hz (4:2:0).
· Kramer Equalization and re-Klocking Technology.
· HDTV Compatible.
· 3D Pass-Though.
General
- Extender type
- Transmitter (Tx)
- Technology
- HDBaseT 1.0 Class B
- Range (Max)
- 40 m at 4K 60Hz (4:2:0)
Video specification
- Max supported resolution
- 3840x2160 8.91Gbps (2.97Gbps per data channel)
- Refresh rate
- 60 Hz
- Chroma subsampling (4K)
- 4:2:0
- Scaler
- Ei

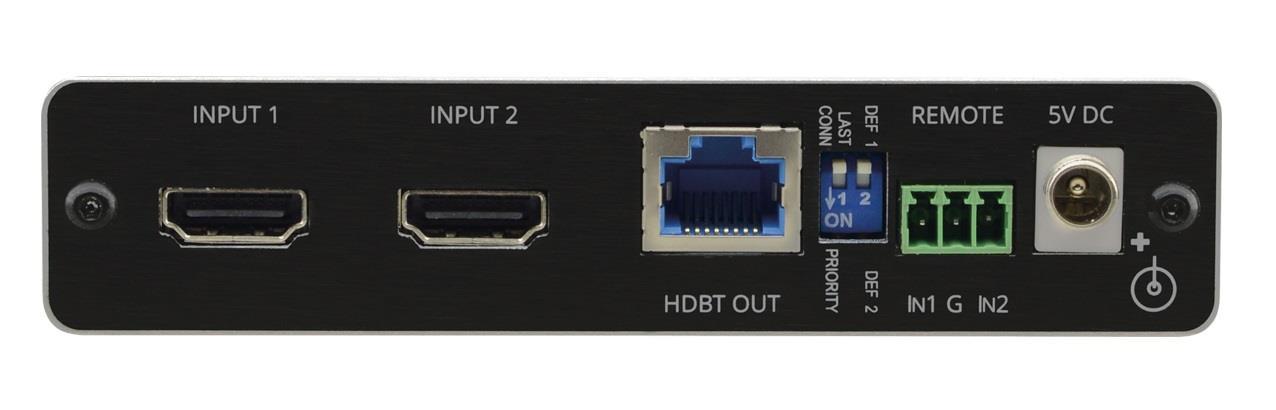

Connections
- Video in
- HDMI x2 (HDCP 2.2 Compliant)
- Video out
- HDBaseT (RJ-45)
- Control
- Auto-switching, Contact closure
- USB passthrough
- Ei
Energy
- Power Supply
- 12V DC, 5A External Power Supply
Mitat ja Paino
- Width
- 120 mm
- Depth
- 72 mm
- Height
- 24 mm
- Net weight
- 0,2 kg
Additional information
- Mounting
- 19" Rack, 1U With RK-3T-B rack adapter (optional)
- Mounting
- Freestanding/Shelf
- Included Accessories
- 5V DC power adapter
- Warranty
- 7 vuotta
Paketin tiedot
- Paketin mitat
- 161 x 91 x 119 mm
- Paketin paino
- 657 g
