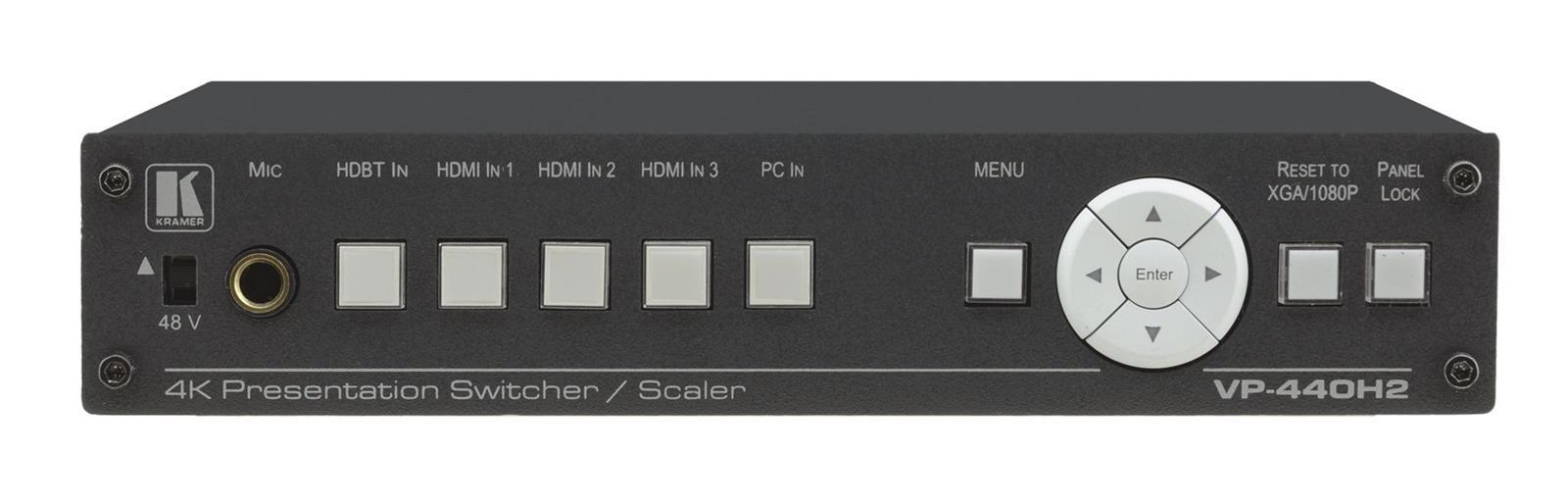

VP−440H2 is a high−performance 4K@60Hz (4:4:4) presentation scaler/switcher with one HDBaseT/POE, three HDMI and one computer graphics (VGA) inputs. The unit scales the video, embeds the audio and outputs the signal to an HDMI and an HDBaseT output simultaneously. The unit includes analog and embedded audio inputs and outputs.

Key Features:

  • PixPerfect™ Scaling Technology — Kramer’s precision pixel mapping and high–quality scaling technology.
  • HDMI Support — 4K@60 (4:4:4) and xvYCC color (on input) as specified in HDMI 2.0.
  • HDCP 2.2 Compliant.
  • HDBaseT Certified.
  • System Range — For the HDBT inputs and outputs, extended reach of up to 100m (330ft) using Kramer recommended cables.
  • Provides Power (PoE) on HDBaseT Input to Compatible Devices.
  • Max. VGA Resolution — 1920 x 1200 @60Hz.
  • Max. Resolutions — 4K@60Hz (4:4:4).
  • Multiple Aspect Ratio Selections — Full, best fit, overscan, underscan, letter box and panscan.
  • Built–in ProcAmp — Color, hue, sharpness, noise, contrast and brightness.
  • Constant Output Sync — No output disruption while switching between inputs when no video is detected.
  • Powerful Audio Features — Via DSP technology including audio equalization, mixing, delay, etc.
  • Auto Input Switching — Last connected & auto–scan, selectable.
  • Audio — Unbalanced stereo and embedded audio for HDMI/HDBT with individual input level controls.
  • Companion AFV (Audio–Follow–Video) — Stereo audio for HDMI and PC inputs, on 3.5mm mini jacks.
  • Microphone Input — For mixing, switching or talk–over.
  • HDBaseT Tunneling — Supports full HDBT tunneling of Ethernet and RS–232 data.
  • Front Panel Lockout.
  • Non–Volatile Memory — Saves final settings.
  • Flexible Control Options — Front panel push buttons, RS–232, OSD (on–screen display) menu with front panel navigation buttons, Ethernet with built–in Web pages.

Applications:

  • Educational — classrooms, lecture theaters
  • Projection systems in conference rooms, boardrooms, hotels and churches
  • Home theater up–scaling


General

Application
Scaler, Switch

Video specification

Resolution max out
3840x2160
Refresh rate
60 Hz
Chroma subsampling (4K)
4:4:4

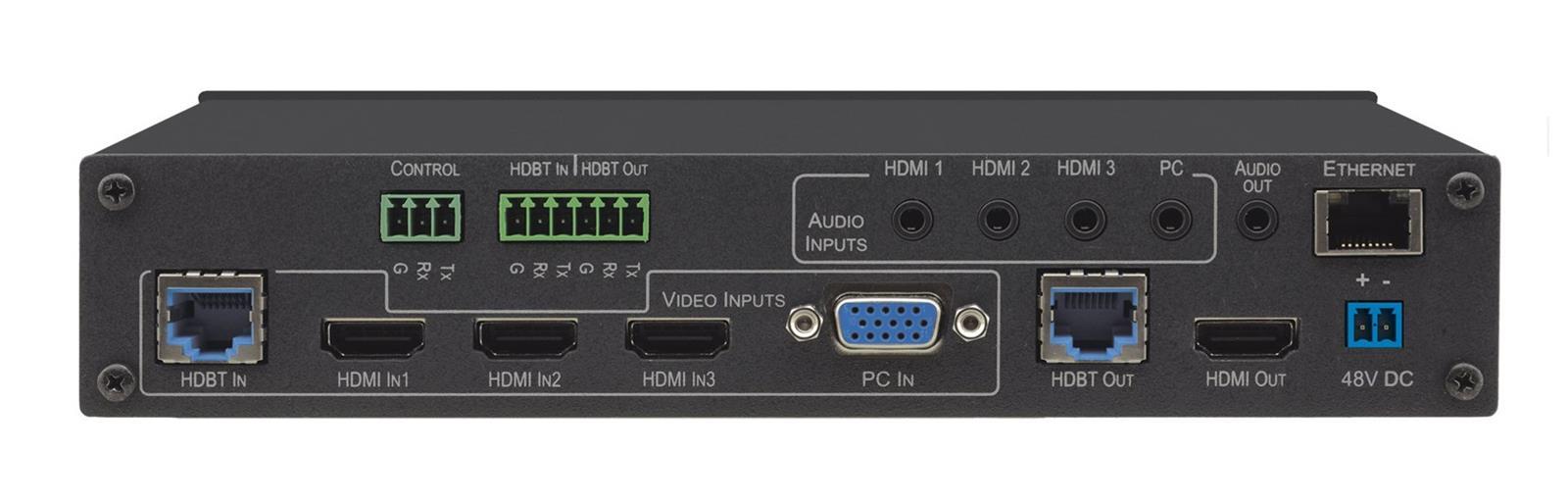

Connections

Video inputs
5
Video outputs
1 Mirrored outputs
Video in
HDBaseT (RJ-45)
Video in
HDMI x3
Video in
VGA
Video out
HDBaseT (RJ-45) Mirrored outputs
Video out
HDMI Mirrored outputs
Audio inputs
3,5mm tele x4
Audio inputs
6,3mm tele x1 Mic in
Audio outputs
3,5mm tele x1

Functions

Scaler
Kyllä
USB passthrough
Ei
Control
Auto-switching, Contact closure, Ethernet/IP (RJ-45), Front buttons, On-screen display, RS-232, Web interface

Energy

Power Supply
48V DC, 850mA External Power Supply

Mitat ja Paino

Width
214,6 mm
Depth
163 mm
Height
43,6 mm
Net weight
1,5 kg

Additional information

Installation
19" Rack, 1U With RK-1 Optional Rack Adapter
Installation
Freestanding/Shelf
Included Accessories
Power supply
Warranty
7 vuotta

Paketin tiedot

Paketin mitat
214 x 163 x 43 mm
Paketin paino
2,26 kg

Tarvikkeet

Artikkelinumero 2350867
